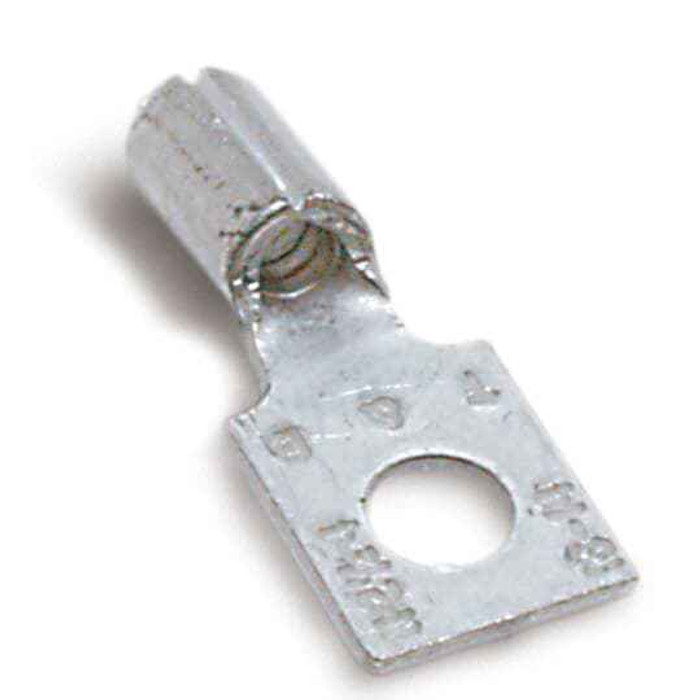

NON-INS RECT RING TERM, 16-14, No6
Manufacturer Resources
Product Specs
- Country Of Origin:
- United States (US)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Rectangular Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 16-14 AWG
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon B481 – Frequently Asked Questions
1) Will the Sta-Kon B481 fit a #6 screw or stud?
Yes. The B481 is a No. 6 stud ring terminal, so it lands on a #6 screw or stud at a terminal block, ground lug, or device terminal. The tongue is rectangular rather than round, which gives you a flat shoulder that resists rotation against an adjacent terminal.
2) Can I use the Sta-Kon B481 terminal on a 480V motor circuit?
The B481 carries a 600 V rating, so it covers 120, 208, 277, and 480 V building and motor branch circuits. Because the barrel is non-insulated, you supply the insulation yourself with heat shrink or a nylon sleeve where the terminal sits near grounded metal.
3) Can I use the B481 ring terminal on aluminum wire?
No. The B481 is a copper terminal intended for copper conductor. Aluminum branch circuit conductors need a connector rated AL/CU with the appropriate inhibitor compound; putting aluminum into a copper-only barrel invites galvanic corrosion and a high-resistance joint.
4) What is the difference between a non-insulated ring terminal like the B481 and an insulated one?
The B481 is a bare copper barrel with no nylon or vinyl sleeve. Non-insulated is what you want when the lug goes into a terminal enclosure or under a cover where space is tight, when you need to inspect the crimp visually, or when you intend to apply your own heat shrink. If the termination sits in open air next to other live terminals and you want built-in strain relief and color-coded gauge identification, choose an insulated 16-14 AWG ring terminal instead.
5) Is the Sta-Kon B481 made in the USA?
Country of origin is the United States, which matters if you are filling a government, federal facility, or Buy American specified MRO order and need domestic content on electrical consumables.
6) What part number do I order for the Sta-Kon 16-14 AWG #6 rectangular ring terminal?
Order Sta-Kon B481. That single manufacturer part number covers the 16-14 AWG, No. 6 stud, non-insulated rectangular ring configuration; there are no finish or size options to specify on it.
