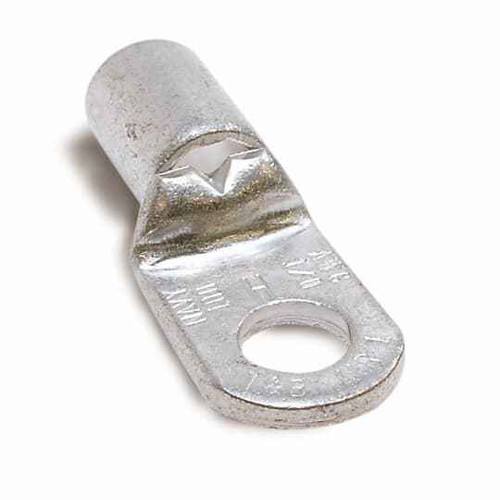

NONINS TRM No8AWG No8STUD NICKELPLT
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Voltage Rating:
- 600 V
- Wire Size:
- 8/8AN
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Material:
- Copper
Sta-Kon D10361NP – Frequently Asked Questions
1) Will a No. 8 ring terminal fit over a 10-32 or 1/4-20 stud?
No. The ring on the D10361NP is sized for a No. 8 stud, so it will not pass over a 10-32 screw or a 1/4 inch stud. Ring tongues are fixed openings, and forcing or filing one is not an acceptable termination. Step up to a terminal with a #10 or 1/4 inch ring in the same 8 AWG barrel size for those studs.
2) Should I use a non-insulated ring terminal or an insulated one?
A non-insulated terminal like the D10361NP is the choice when you want to apply your own insulation (heat shrink for a sealed, strain-relieved joint) or when the lug sits inside an enclosure or panel where a bare barrel is acceptable and you want to see the crimp. Insulated versions with a nylon or vinyl sleeve are faster when you just need colour-coded, ready-to-go protection and no shrink tubing step. Note also that this is a ring, not a fork: the tongue is closed, so the nut has to come off the stud to install it, but it cannot vibrate loose off the screw.
3) Why is the Sta-Kon D10361NP nickel plated instead of tin plated?
The barrel and tongue are copper with nickel plating. Nickel plate is used where the termination sees high temperature or a corrosive atmosphere, which is why you see it on heater, oven, motor and industrial process wiring rather than general panel work. For ordinary indoor control and power terminations a tin plated copper terminal does the same job; specify nickel when the spec or the heat at the connection point calls for it.
4) Do I need a special crimp tool for this 8 AWG Sta-Kon terminal?
An 8 AWG non-insulated barrel needs a proper mechanical or ratcheting crimper with a non-insulated die in the 8 AWG nest. Plier-style insulated-terminal crimpers and the strip-and-squeeze jaws on a cheap combination tool will not form a sound crimp at this conductor size. The terminal ships bare, with no sleeve, so the die seats directly on the copper barrel.
5) Where is the Sta-Kon D10361NP terminal made?
Country of origin on the D10361NP is Mexico. That is the detail institutional and government buyers usually need for domestic-preference or procurement documentation, so it is worth recording on the submittal alongside the part number.
