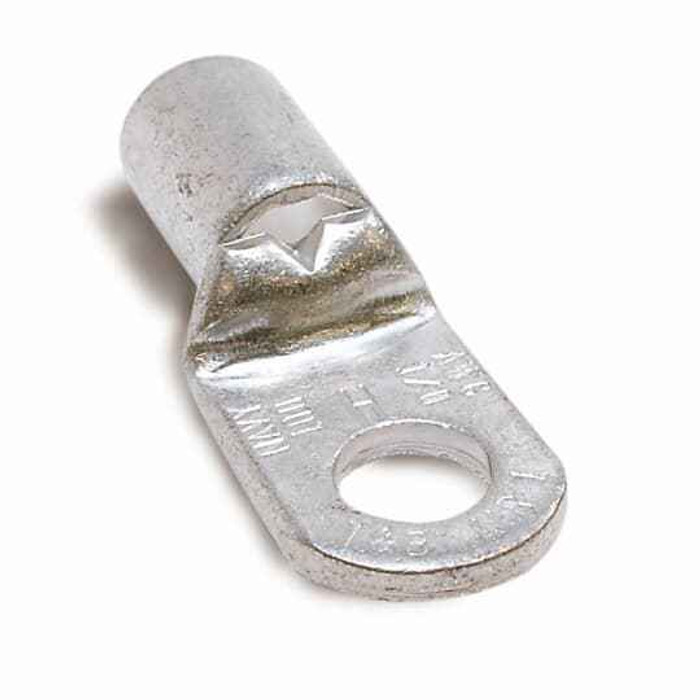

NONINS TUB RNG TRM 1/0AN-2/0 BLT1/4
Manufacturer Resources
Product Specs
- Country Of Origin:
- Mexico (MX)
- Product Subgroup:
- General Terminals
- Product Type:
- Non-Insulated Ring Terminal
- Standards:
- UL E9809
- Voltage Rating:
- 600 V
- Wire Size:
- 1/0AN-2/0
- Department:
- Electrical
- Product Group:
- Wire Termination
- Product Color:
- Metallic
- Product Material:
- Copper
Sta-Kon J971 – Frequently Asked Questions
1) What voltage is this Sta-Kon terminal rated for?
600 V. That covers the usual 120/208, 277/480 commercial power work as well as low voltage DC battery and inverter terminations. It carries UL file E9809, which matters if an inspector or a spec requires listed terminations.
2) Can I use the J971 on aluminum conductors?
No. The J971 barrel is copper and it's specified for copper conductors in the 1/0 to 2/0 range. Aluminum feeders need a lug rated AL9CU or aluminum-specific, with the appropriate inhibitor compound. Using a copper-only lug on aluminum invites galvanic corrosion at the joint.
3) Is the Sta-Kon J971 terminal insulated?
No, it's a non-insulated copper barrel terminal with bare metallic finish. You'll need to add your own heat shrink or insulating boot if the connection sits where it can be touched or shorted. Many electricians prefer the non-insulated style on 1/0 and 2/0 conductors because you can see the strands bottom out in the barrel before crimping.
4) Does the J971 need a special crimping tool?
Yes. At 1/0 to 2/0 a hand squeeze tool won't do it. Tubular barrel lugs this size are crimped with a hydraulic or large mechanical compression tool using the die matched to the lug and conductor size. Dry-fit the conductor to confirm it bottoms in the barrel, then crimp per the die indent pattern.
5) Is there one part number I should order, and where is it made?
Order it as Sta-Kon J971, which is the manufacturer part number, and it's the only configuration offered. Country of origin is Mexico. For procurement records the UL file reference is E9809.
