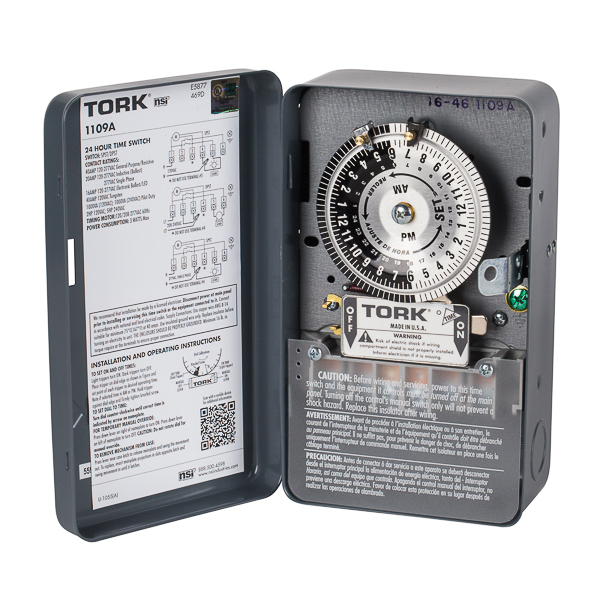

NSi 1109A-2 24-Hour DPST Time Switch, 40A 120/208-277V

NSi 1109A-2 24-Hour DPST Time Switch, 40A 120/208-277V

(No reviews yet) Write a Review

Model: 1109A

In Stock (leaves warehouse same day if ordered before 3pm ET)

$184.39
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NSi 1109A-2 24-Hour DPST Time Switch, 40A 120/208-277V

The NSi Industries 24-Hour DPST Time Switch is a heavy-duty electromechanical control built for reliable, automated on/off switching of lighting and load circuits. Rated 40A at 120/208-277V with DPST (double-pole single-throw) switching action, this time switch delivers dependable 24-hour scheduling for both indoor and outdoor electrical applications. It is available in two enclosure configurations — NEMA 1 Indoor and NEMA 3 Outdoor — so you can match the housing to the installation environment while keeping the same 40A, 120/208-277V DPST switching platform. Both versions are cULus Listed and engineered to keep automated circuits running on schedule.

Key Features

  • Current Rating: 40A rated for high-capacity lighting and load-switching circuits.
  • Voltage Compatibility: 120/208-277V operation supports a wide range of commercial and industrial supply voltages.
  • DPST Switching Action: Double-pole single-throw contacts provide reliable, simultaneous circuit control.
  • 24-Hour Scheduling: Built-in 24 hour time switch mechanism automates daily on/off cycles without manual intervention.
  • Frequency Rating: Rated for 60Hz electrical systems.
  • Extreme Temperature Range: Operates reliably from -40 to 165 F, suited for demanding indoor and outdoor climates.
  • Enclosure Options: Choose from NEMA 1 Indoor or NEMA 3 Indoor-Outdoor metal housings, with the NEMA 3 version protecting internal components from dust, rain, and sleet in outdoor installations.

Certifications & Compliance

  • cULus Listed
  • NEMA 1 Indoor and NEMA 3 Indoor-Outdoor Enclosure Ratings Available

Technical Specifications

  • Product Group: Wiring Devices
  • Current Rating: 40A
  • Voltage Rating: 120/208-277V
  • Switching Configuration: DPST
  • Frequency: 60Hz
  • Operating Temperature Range: -40 to 165 F
  • Enclosure Options: NEMA 1 Indoor, NEMA 3 Outdoor

Typical Applications

  • Outdoor and Area Lighting Control
  • Street and Parking Lot Lighting Timers
  • Commercial Signage Circuit Scheduling
  • Automated Load Shedding and Switching
  • Outdoor and Wet-Location Electrical Installations (NEMA 3)
  • Commercial and Industrial Time-Based Circuit Control (NEMA 1 or NEMA 3)

Why NSi?

NSi Industries builds this 24-hour DPST time switch with a rugged metal enclosure — available in NEMA 1 Indoor or NEMA 3 Indoor-Outdoor configurations — and cULus Listing, giving electrical professionals a dependable, code-compliant option for automated circuit control across a range of demanding settings. With a 40A, 120/208-277V rating and a wide -40 to 165 F operating range, it is designed to keep lighting and load circuits running on schedule through harsh weather and heavy-duty commercial use, whatever enclosure the installation calls for.

Product Specs

Listing:
cULus
Standards:
cULus
Scheduling:
24 Hour
Product Type:
Time Switch
Department:
Electrical
Product Group:
Wiring Devices
Product Material:
Metal
Operating Temperature:
-40 to 165 F
Action:
DPST
Voltage Rating:
120/208-277V
Amperage Rating:
40A
Configuration:
2-Pole
Product Subgroup:
Lighting Controls & Sensors

NSi 1109A – Frequently Asked Questions

1) Will the NSi 1109A time switch run on 277V lighting circuits?
Yes. The 1109A is rated 120/208-277V at 60Hz, so it covers single-phase 120V, 208V and 277V commercial lighting feeds. Contacts are rated 40A, which is enough to switch a large HID or LED area lighting branch directly without a separate contactor in most cases.
2) Is the NEMA 1 version of the 1109A OK in a damp parking garage or car wash bay?
No. NEMA 1 is an indoor enclosure only, meant for dry interior spaces like electrical rooms and back-of-house. Anywhere with rain, hose-down, blowing dust or condensation, use the 1109A-O in the NEMA 3 indoor-outdoor housing.
3) I need a time switch for an outdoor parking lot lighting circuit - should I use the NSi 1109A-2 or the Wattstopper RT200?
Both are aimed at lighting control, and the split is how the schedule is set and where the control mounts. The NSi 1109A-2 is offered in a NEMA 3 Outdoor metal enclosure as well as NEMA 1 Indoor, so it can be mounted at the pole base or on an exterior wall, and it is rated from -40 to 165 F and cULus Listed. Its schedule is a repeating 24 hour cycle. The Pass & Seymour Wattstopper RT200 is an astronomic switch, so its trip points follow the seasonal daylight change. Choose the 1109A-2 when you want an outdoor-rated 40A DPST mechanical control; choose the RT200 when the lot lights need to track sunset year-round.
4) What does DPST mean on this time switch, and can I switch two separate circuits with it?
DPST means double-pole single-throw: two contacts that open and close together on one schedule. That lets you break both legs of a 208V or 277V two-wire circuit, or switch two loads at the same time, but it will not run two independent schedules and it has no normally-closed side. If you need one circuit on while another is off, you need a DPDT device.
5) Can the NSi 1109A time switch be mounted where it gets down to -40 in winter?
Yes, the rated operating range is -40 to 165 F, so cold-climate rooftop, yard and unheated mechanical room installs are within spec. Pair that with the 1109A-O NEMA 3 metal enclosure for anything exposed to weather.
6) Is the NSi 1109A approved for use in Canada?
The 1109A carries a cULus Listing, which covers both US and Canadian requirements, so it can be specified on jobs on either side of the border. Both the NEMA 1 and NEMA 3 versions carry it.
7) Do I need a lighting contactor with this, or can it switch the load directly?
For loads within 40A at 120/208-277V, the 1109A switches directly, no contactor needed. Above that, or where you are controlling multiple branch circuits, use the time switch as the pilot device driving a lighting contactor coil instead of carrying the load through it.
8) Can the Pass & Seymour Wattstopper RT200 be used as a drop-in replacement for an NSi 1109A-2?
Treat them as different controls rather than a straight swap. The NSi 1109A-2 is a DPST, 40A, 120/208-277V electromechanical 24 hour switch in a metal NEMA 1 or NEMA 3 enclosure, so a replacement needs to match the two-pole switching and the load current on the existing circuit. The Pass & Seymour RT200 is an astronomic Wattstopper control, a different scheduling method, so before substituting verify the pole configuration, load rating and enclosure environment against the circuit you are wiring into. If the existing panel schedule is a fixed daily on/off, staying with the 1109A-2 keeps the same 40A DPST platform.
