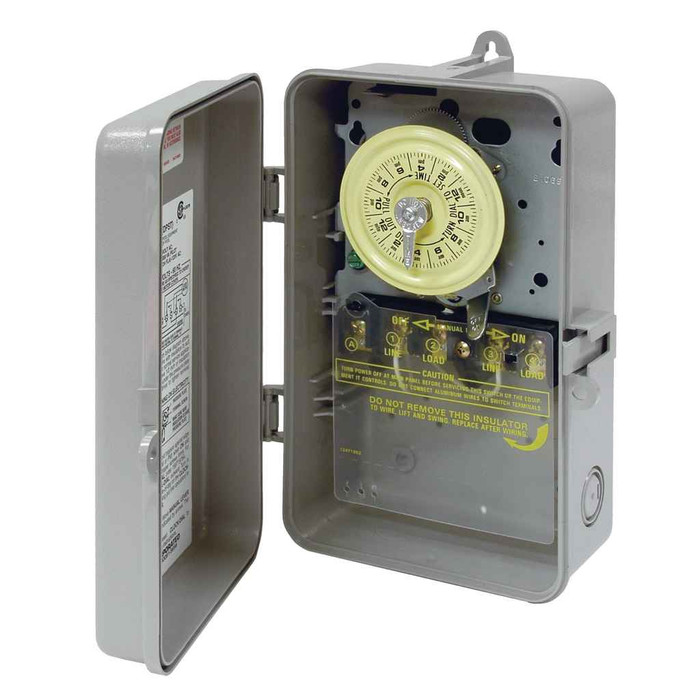

Intermatic T104P 24-Hour Mechanical Time Switch, 208-277 VAC, 60Hz, DPST, Indoor/Outdoor Plastic Enclosure, 1 Hour Interval

Intermatic 24-Hour Mechanical Time Switch 208-277V DPST Indoor/Outdoor Plastic Enclosure

(No reviews yet) Write a Review

Model: T104P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$243.57
$179.59
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic 24-Hour Mechanical Time Switch 208-277V DPST Indoor/Outdoor Plastic Enclosure

Professional 24-Hour Timing Control with Versatile Indoor/Outdoor Operation

The Intermatic 24-Hour Mechanical Time Switch delivers reliable automated control for lighting and electrical loads with 208-277 VAC operation and DPST switching capability. This professional-grade timer features a durable plastic enclosure rated for both indoor and outdoor applications, providing flexible installation options with 1-hour interval precision and up to 12 ON/OFF operations daily.

Professional Features & Benefits

  • 208-277 VAC, 60Hz Operation: Compatible with commercial voltage systems for versatile professional applications and reliable performance across various electrical configurations.
  • DPST Switching Configuration: Double-pole, single-throw design provides enhanced control capability and electrical isolation for demanding load management requirements.
  • Indoor/Outdoor Plastic Enclosure: Weather-resistant construction enables flexible mounting in diverse environments while maintaining protection and operational reliability.
  • 1-Hour Minimum Intervals: Precise timing control with one-hour minimum ON/OFF periods supports accurate scheduling for lighting and equipment management.
  • Up to 12 Daily Operations: Multiple switching cycles per day provide comprehensive automated control for complex timing requirements and energy management.
  • Manual Override Function: Direct manual control capability ensures operational flexibility and emergency override when automatic timing needs to be bypassed.
  • One-Year Limited Warranty: Professional warranty coverage provides confidence in long-term reliability and manufacturer support for commercial installations.

Technical Specifications

  • Applications: Indoor Lighting Control;Outdoor Lighting Control;Timing/Scheduling ON/OFF
  • Country Of Origin: Mexico
  • Depth: 4 in
  • Input Voltage Rating Range S : 208-277 VAC, 60 Hz
  • Marketing Description: The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
  • Product Color: Gray
  • Product Height: 10 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 6.5 in
  • Warranty Period: 1-Year limited

Professional Applications

  • Commercial Building Lighting Control
  • Outdoor Area and Security Lighting
  • Industrial Equipment Scheduling
  • Retail and Office Lighting Management
  • Municipal and Public Lighting Systems
  • Educational Facility Automation
  • Healthcare Facility Lighting Control

Why Choose Intermatic Quality?

Intermatic mechanical time switches provide dependable automated control with proven reliability in professional applications. The durable plastic enclosure construction and comprehensive one-year limited warranty ensure long-term performance and peace of mind for commercial and industrial installations requiring precise timing control.

Manufacturer Resources

Product Specs

Application:
Indoor Lighting Control;Outdoor Lighting Control;Timing/Scheduling ON/OFF
Country Of Origin:
Mexico
Input Voltage Rating Range S :
208-277 VAC, 60 Hz
Marketing Description:
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
Product Color:
Grey
Product Height:
10 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
6.5 in
Warranty Period:
1-Year limited
Product Depth:
4 in

Intermatic T104P – Frequently Asked Questions

1) What does DPST mean on the Intermatic T104P, and can it switch both legs of a 240V load?
DPST is double-pole, single-throw: the T104P opens and closes two hot legs at the same time from one time setting. That is what you want on a 208V, 240V or 277V two-hot-leg load, since both conductors are broken when the timer is off. It is one switched circuit, not two independently timed ones.
2) How many on/off cycles a day can I schedule with the T104P timer?
Up to 12 ON/OFF operations in a 24-hour cycle, with a one-hour minimum between an ON and the next OFF. Each pair of trippers on the dial gives you one ON and one OFF, so a simple dusk-to-dawn lighting schedule uses a single pair and leaves the rest for staged or midday loads.
3) Can I mount an Intermatic T104P time switch outdoors on a building exterior?
Yes. The T104P comes in a grey plastic enclosure rated for indoor or outdoor mounting, which is why it gets used on parking lot, security and exterior area lighting as well as interior circuits.
4) Is the T104P a 7-day timer or a 24-hour timer?
It is a 24-hour timer. The T104P repeats the same schedule every day, so it cannot run a different program on weekends. If your building needs weekday-versus-weekend schedules, you need a 7-day astronomic or electronic time switch rather than this 24-hour T100 series dial.
5) What wall space do I need to allow for the Intermatic T104P enclosure?
Plan for a footprint of 10 in high by 6.5 in wide with a 4 in depth off the wall. Leave clearance in front of the door so the dial and trippers can be reached for setting and for the manual override lever.
6) Can maintenance staff turn the lights on without changing the timer schedule?
Yes. The T104P has a manual override so the load can be switched on or off by hand without disturbing the trippers. Once the next scheduled tripper comes around, the timer resumes its normal program.
7) Is a mechanical time switch like the T104P still a good choice compared with an electronic timer?
For a fixed daily lighting schedule it holds up well. The T100 series dial has no program to lose, no battery to replace, and a motor-driven dial that anyone on a maintenance crew can read and reset by moving the trippers. The trade-off is one-hour minimum intervals and a single repeating 24-hour program; if you need minute-level precision, seasonal sunset tracking, or different weekday schedules, go electronic.
8) What part number do I order for the 208-277V DPST Intermatic 24-hour timer?
Order Intermatic T104P. That is the 24-hour mechanical time switch with 208-277 VAC, 60 Hz operation, DPST switching and the indoor/outdoor plastic enclosure. Other suffixes in the T100 family change voltage, pole configuration or enclosure type, so the P designation matters if you want the plastic outdoor case.
