Intermatic T101P 24-Hour Mechanical Time Switch, 120 VAC, 60Hz, SPST, Indoor/Outdoor Plastic Enclosure, 1 Hour Interval

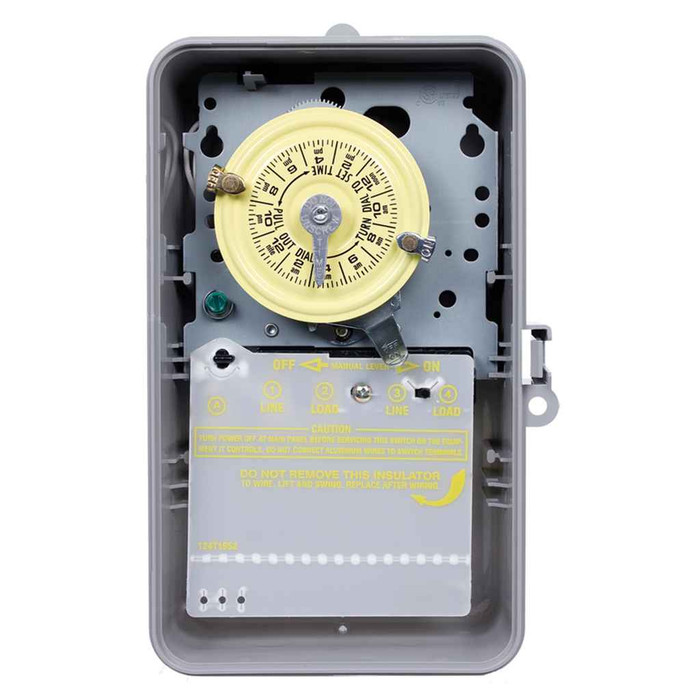

Intermatic T101P 24-Hour Mechanical Time Switch 120V SPST Indoor/Outdoor Plastic Enclosure

(No reviews yet) Write a Review

Model: T101P
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$218.27
$156.16
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic T101P 24-Hour Mechanical Time Switch 120V SPST Indoor/Outdoor Plastic Enclosure

Professional 24-Hour Timing Control with Manual Override

The Intermatic T101P delivers reliable 24-hour mechanical timing control for indoor and outdoor lighting applications. This SPST time switch operates on 120 VAC, 60Hz power and features a durable plastic enclosure suitable for both indoor and outdoor installations. With direct load control capability and manual override functionality, this proven mechanical time switch provides dependable scheduling performance.

Professional Features & Benefits

  • 120 VAC, 60Hz Operation: Standard voltage compatibility ensures easy integration into most residential and commercial electrical systems.
  • SPST Configuration: Single-pole, single-throw switching provides reliable ON/OFF control for connected loads.
  • Indoor/Outdoor Plastic Enclosure: Weather-resistant housing protects internal components while providing versatile installation options.
  • Manual Override Function: Allows immediate control independent of programmed schedule for maintenance or emergency situations.
  • Up to 12 ON/OFF Operations Daily: Flexible scheduling with minimum one-hour intervals accommodates diverse timing requirements.
  • Direct Load Control: 24-hour control capability handles most standard lighting and electrical loads without additional relays.
  • 1-Year Limited Warranty: Manufacturer backing ensures reliable performance and professional support.

Technical Specifications

  • Applications: Indoor Lighting Control;Outdoor Lighting Control;Timing/Scheduling ON/OFF
  • Country Of Origin: Mexico
  • Depth: 4 in
  • Input Voltage Rating Range S : 120 VAC, 60 Hz
  • Marketing Description: The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
  • Product Color: Gray
  • Product Height: 10 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 6.5 in
  • Warranty Period: 1-Year limited

Professional Applications

  • Residential Lighting Control
  • Commercial Building Lighting
  • Outdoor Security Lighting
  • Landscape Lighting Systems
  • Parking Lot Illumination
  • Sign and Display Lighting
  • Industrial Facility Lighting

Why Choose Intermatic Quality?

Intermatic time switches deliver proven mechanical reliability with professional-grade construction. The T101P features a durable plastic enclosure rated for indoor and outdoor use, backed by a 1-year limited warranty. This dependable timing solution provides consistent performance for demanding lighting control applications.

Manufacturer Resources

Product Specs

Application:
Indoor Lighting Control;Outdoor Lighting Control;Timing/Scheduling ON/OFF
Country Of Origin:
Mexico
Input Voltage Rating Range S :
120 VAC, 60 Hz
Marketing Description:
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
Product Color:
Grey
Product Height:
10 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
6.5 in
Warranty Period:
1-Year limited
Product Depth:
4 in

Intermatic T101P – Frequently Asked Questions

1) Will the Intermatic T101P work on a standard 120V lighting circuit, and does it need a separate relay?
The T101P runs on 120 VAC, 60 Hz and switches the load directly, so no contactor or slave relay is needed for typical lighting loads. Switching is SPST, meaning it opens and closes one hot leg, on and off, on the schedule you set.
2) Can the T101P time switch be mounted outside on a building wall or pole?
Yes. The T101P ships in a gray plastic indoor/outdoor enclosure, so it can be surface mounted outdoors for parking lot, sign, security, and landscape lighting as well as indoors in a mechanical or electrical room.
3) How many on/off cycles a day can I program into the T101P, and how close together can they be?
Up to 12 ON/OFF operations in a 24-hour cycle, with a minimum of one hour between a trip point and the next. That is enough for a morning and evening lighting schedule with extras, but it will not do short-interval cycling measured in minutes.
4) Can maintenance staff turn the lights on without disturbing the T101P schedule?
Yes. The T101P has a manual override lever that lets you flip the load on or off immediately, independent of the programmed trippers. Once the next scheduled trip point comes around, the timer picks the schedule back up. Useful for property managers who need a janitor or electrician to light an area outside normal hours.
5) Is the T101P a 24-hour timer or does it handle different weekday and weekend schedules?
It is a 24-hour dial only. The same set of on and off times repeats every day, with no day-of-week skipping. If your site needs different weekend hours or a 7-day program, a 24-hour mechanical switch like this is the wrong choice and you want a 7-day timer or an electronic astronomic control instead.
6) How much wall space do I need to allow for the Intermatic T101P enclosure?
Plan for a footprint of 10 in high, 6.5 in wide and 4 in deep. Allow working clearance in front of the door for the dial and trippers, plus room below for conduit entry.
7) What is the correct part number and manufacturer for this gray 24-hour mechanical time switch?
Order it as Intermatic T101P. It is part of the T100 Series mechanical time switch family, and the P suffix is the version supplied in the plastic indoor/outdoor enclosure rather than a bare mechanism or metal case.
8) Does the T101P keep time during a power outage?
No battery or carryover reserve is part of this model. The T101P is a line-driven mechanical clock, so the dial stops while power is off and runs again when it returns, which leaves the schedule shifted by the length of the outage. On sites with frequent outages, plan on resetting the dial or spec a timer with a carryover feature.
9) What kinds of jobs is the Intermatic T101P typically specified for?
Scheduled on/off control of lighting, indoors and out: commercial building lighting, outdoor security and parking lot fixtures, landscape lighting, sign and display lighting, and industrial facility lighting. Anywhere a facility wants lights on a fixed daily clock without someone flipping a switch.
