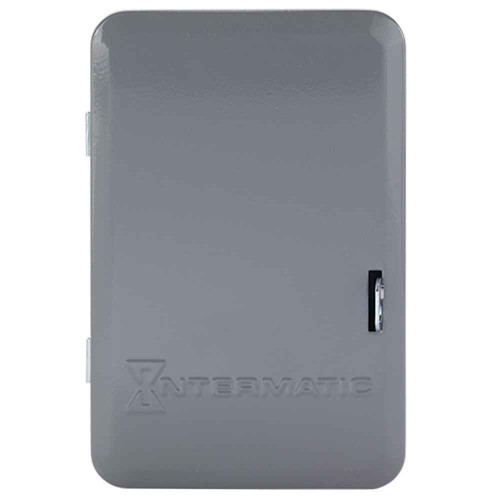

Intermatic T101R 24-Hour Mechanical Time Switch, 120 VAC, 60Hz, SPST, Indoor/Outdoor Metal Enclosure, 1 Hour Interval

Intermatic T101R 24-Hour Mechanical Time Switch 120V SPST Indoor/Outdoor Metal Enclosure with Manual Override

(No reviews yet) Write a Review

Model: T101R
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$230.93
$167.88
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic T101R 24-Hour Mechanical Time Switch 120V SPST Indoor/Outdoor Metal Enclosure with Manual Override

Professional 24-Hour Timing Control for Indoor and Outdoor Applications

The Intermatic T101R delivers reliable 24-hour mechanical timing control with 120 VAC, 60Hz operation and SPST switching capability. This professional-grade time switch features a durable indoor/outdoor metal enclosure in gray finish, providing versatile installation options for both interior and exterior lighting control applications. With up to 12 ON/OFF operations per day and 1-hour minimum intervals, this mechanical time switch offers direct load control with manual override functionality for enhanced operational flexibility.

Professional Features & Benefits

  • 120 VAC, 60Hz Operation: Compatible with standard residential and commercial electrical systems for reliable power control.
  • SPST Switching Configuration: Single-pole, single-throw design provides straightforward ON/OFF control for connected loads.
  • Indoor/Outdoor Metal Enclosure: Durable gray metal housing withstands environmental conditions for versatile installation locations.
  • Up to 12 Daily Operations: Supports multiple ON/OFF cycles per day with minimum 1-hour intervals for flexible scheduling control.
  • Manual Override Function: Allows immediate manual control independent of programmed timing schedule for operational convenience.
  • Mechanical Time Switch Design: Proven mechanical operation provides dependable timing control without electronic components.
  • 1-Year Limited Warranty: Professional warranty coverage ensures reliable performance and manufacturer support.

Technical Specifications

  • Applications: Indoor Lighting Control;Outdoor Lighting Control;Timing/Scheduling ON/OFF
  • Country Of Origin: Mexico
  • Depth: 3.625 in
  • Input Voltage Rating Range S : 120 VAC, 60 Hz
  • Marketing Description: The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
  • Product Color: Gray
  • Product Height: 10.125 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 6.5 in
  • Warranty Period: 1-Year limited

Professional Applications

  • Residential Indoor Lighting Control
  • Outdoor Security and Landscape Lighting
  • Commercial Building Lighting Systems
  • Retail Store Lighting Management
  • Professional Office Lighting Control
  • Multi-Unit Property Common Area Lighting
  • Industrial Facility Timing Applications

Why Choose Intermatic Quality?

Intermatic delivers proven mechanical time switch technology with durable metal enclosure construction and reliable 120V operation. The 1-year limited warranty and indoor/outdoor rated design ensure dependable performance in diverse installation environments, making this time switch a trusted choice for professional timing control applications.

Manufacturer Resources

Product Specs

Application:
Indoor Lighting Control;Outdoor Lighting Control;Timing/Scheduling ON/OFF
Country Of Origin:
Mexico
Input Voltage Rating Range S :
120 VAC, 60 Hz
Marketing Description:
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
Product Color:
Grey
Product Height:
10.125 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
6.5 in
Warranty Period:
1-Year limited
Product Depth:
3.625 in

Intermatic T101R – Frequently Asked Questions

1) Can the Intermatic T101R be mounted outdoors on a building exterior?
Yes. The T101R ships in a gray indoor/outdoor rated metal enclosure, so it can go on an exterior wall for parking lot, landscape, sign, or security lighting as well as inside a mechanical room. Mount it upright so the door sheds water and use proper fittings at the conduit knockouts.
2) Does the Intermatic T101R switch both hot legs or just one?
Just one. It is SPST, single pole single throw, so it makes and breaks a single hot conductor to the load. If your application needs both legs of a two-wire 120/240 load opened, an SPST timer is the wrong configuration and you want a DPST model instead.
3) How many times a day can I set the Intermatic T101R to turn lights on and off?
Up to 12 ON/OFF operations in a 24 hour cycle, with a minimum of one hour between a trip-on and the next trip-off. You add pairs of trippers on the dial for each cycle you want. If you need shorter intervals than an hour, or different schedules on different days, this 24-hour dial will not do it.
4) Does the Intermatic T101R hold its schedule during a power outage?
No. It is a mechanical time switch driven by a synchronous 120 VAC clock motor, with no battery or electronic backup. When power drops, the dial stops turning. After an extended outage the dial will be behind real time and you have to reset it to the current time of day, or your lighting will run late by the length of the outage.
5) Can I turn the lights on manually without disturbing the timer schedule on a T101R?
Yes. There is a manual override lever that flips the load on or off right now, independent of where the dial sits. The programmed trippers stay set and the timer picks the schedule back up at the next trip point. That is the feature property managers use when a tenant needs the lot lit early.
6) Should I use a mechanical timer like the T101R or an electronic astronomic timer for outdoor lighting?
The T101R runs fixed clock times. You set a trip-on and a trip-off and those hold until you move the trippers, which means someone has to walk out and readjust it as sunset shifts through the year and again at daylight saving changes. An electronic astronomic timer tracks sunrise and sunset by date and location and needs no seasonal adjustment. Pick the mechanical unit when you want a schedule that does not drift with the seasons, nothing to program, and no firmware to fail. Pick astronomic for dusk-to-dawn lighting you do not want to babysit.
7) Can a T101R control a 277V parking lot lighting contactor?
Not directly. The T101R clock motor is 120 VAC only, so a 277V feed is out. If your lighting is 277V, the usual approach is a timer rated for that supply, or keep the 120V T101R and use its SPST contacts to drive the coil of a separately powered lighting contactor that handles the 277V load switching.
8) What jobs is the Intermatic T101R typically specified for?
Indoor and outdoor lighting control and general ON/OFF scheduling. In practice that means common area and corridor lights in multi-family, storefront and sign lighting, landscape and security lighting, office and retail interior lighting, and simple industrial equipment scheduling. Anywhere a load needs to run on the same clock every day and someone wants a dial they can read from the ground.
9) Is the T101R part of the Intermatic T100 series, and does that matter for parts?
Yes, the T101R is a T100 Series mechanical time switch. That matters when you order spares, because the series shares the common wear items, trippers and clock motors, across models. When ordering a replacement motor be sure to match the 120 VAC supply voltage, since other T100 models run on different voltages.
10) What part number do I order for the Intermatic 24-hour metal enclosure timer, and where is it made?
The manufacturer part number is T101R, the 24-hour 120V SPST mechanical time switch in the gray indoor/outdoor metal case. It is manufactured in Mexico, which is the detail institutional and government buyers usually need for country-of-origin documentation on a bid.
