Intermatic T105 24-Hour Mechan...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$237.86
$161.56

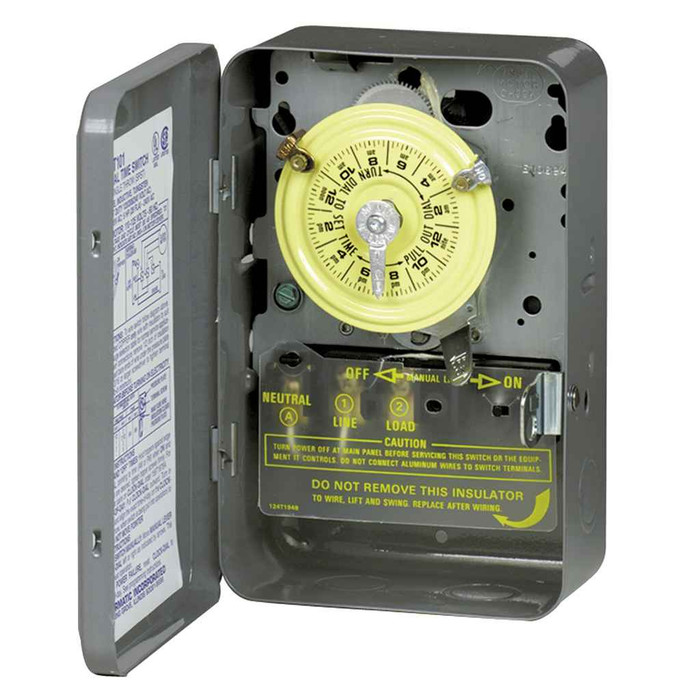

Intermatic T105 24-Hour Mechanical Time Switch, 120 VAC, 60Hz, 1 NO/1 NC, SPDT, Indoor Metal Enclosure, 1 Hour Interval

Intermatic T105 24-Hour Mechanical Time Switch 120V SPDT Indoor Metal Enclosure System

(No reviews yet) Write a Review

Model: T105
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$237.86
$161.56
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic T105 24-Hour Mechanical Time Switch 120V SPDT Indoor Metal Enclosure System

Professional 24-Hour Timing Control with Manual Override Capability

The Intermatic T105 delivers reliable 24-hour mechanical timing control for indoor lighting and scheduling applications. This professional-grade time switch operates on 120 VAC, 60Hz with SPDT configuration (1 NO/1 NC contacts) housed in a durable indoor metal enclosure. Featuring up to 12 ON/OFF operations daily with 1-hour minimum intervals and manual override functionality, this system provides direct control of most loads with proven mechanical reliability.

Professional Features & Benefits

  • 24-Hour Mechanical Operation: Provides consistent timing control without digital complexity, ensuring reliable performance in various environmental conditions.
  • 120 VAC, 60Hz Rating: Compatible with standard North American electrical systems for seamless integration into existing installations.
  • SPDT Contact Configuration: 1 NO/1 NC contacts offer flexible switching options for diverse load control applications.
  • Indoor Metal Enclosure: Durable gray metal housing protects internal components while providing professional appearance for indoor installations.
  • Manual Override Function: Allows immediate manual control when needed, providing operational flexibility beyond programmed schedules.
  • 12 Daily Operations: Up to 12 ON/OFF cycles per day with 1-hour minimum intervals accommodate complex scheduling requirements.
  • 1-Year Limited Warranty: Backed by manufacturer warranty coverage for reliable long-term performance assurance.

Technical Specifications

  • Applications: Indoor Lighting Control;Timing/Scheduling ON/OFF
  • Country Of Origin: Mexico
  • Depth: 3.625 in
  • Input Voltage Rating Range S : 120 VAC, 60 Hz
  • Marketing Description: The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
  • Product Color: Gray
  • Product Height: 7.875 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 5.125 in
  • Warranty Period: 1-Year limited

Professional Applications

  • Indoor Lighting Control Systems
  • Commercial Building Automation
  • Retail Store Lighting Schedules
  • Office Building Time Control
  • Educational Facility Management
  • Healthcare Facility Operations
  • Industrial Timing Applications

Why Choose Intermatic Quality?

Intermatic delivers proven mechanical time switch technology with durable indoor metal enclosure construction and comprehensive 1-year limited warranty coverage. The T105 represents reliable timing control engineering designed for professional installations requiring consistent 24-hour scheduling performance.

Manufacturer Resources

Product Specs

Application:
Indoor Lighting Control;Timing/Scheduling ON/OFF
Country Of Origin:
Mexico
Input Voltage Rating Range S :
120 VAC, 60 Hz
Marketing Description:
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
Product Color:
Grey
Product Height:
7.875 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
5.125 in
Warranty Period:
1-Year limited
Product Depth:
3.625 in

Intermatic T105 – Frequently Asked Questions

1) Will the Intermatic T105 time switch work on a 120V circuit, and can it switch the load directly?
The T105 is built for 120 VAC, 60 Hz service, which is standard North American line voltage, and it switches most loads directly without a separate contactor. Both the clock motor and the contacts are on that same 120V supply, so it is not the right unit for a 208V or 240V panel feed.
2) What does SPDT mean on this Intermatic mechanical timer, and what can I wire to it?
SPDT here means one set of changeover contacts, 1 normally open and 1 normally closed. You can wire a load to the NO side so it energizes during the ON period, or to the NC side so it de-energizes during that period, or run two loads that alternate. That is what separates it from a plain single-pole ON/OFF timer.
3) Is the Intermatic T105 enclosure rated for outdoor or wet locations?
No. The T105 comes in a gray indoor metal enclosure only. Mount it in a mechanical room, electrical closet or other dry interior space. For an exterior wall, a parking lot pole or an irrigation pump, you need a weatherproof-enclosure version of the T100 series instead.
4) How many on/off cycles a day can the T105 24-hour timer be set for?
Up to 12 ON/OFF operations in a 24-hour cycle, with a 1-hour minimum between a trip ON and a trip OFF. That covers a typical retail or office lighting schedule, but if you need switching at 15 or 30 minute resolution, a 24-hour mechanical dial of this type is not the right choice.
5) Can I turn the lights on manually without disturbing the timer schedule?
Yes. The T105 has a manual override lever so maintenance staff can force the load on or off on demand, and the dial keeps running its programmed trips. Useful in schools, offices and retail where someone needs light outside the set hours.
6) How much wall space do I need to mount the Intermatic T105 timer?
Plan on a footprint of 7.875 in high by 5.125 in wide, with the enclosure projecting 3.625 in off the wall. Leave clearance in front of that depth so the cover can swing and you can reach the dial and trippers.
7) Should I use a mechanical time switch like the T105 or go with an electronic timer?
A 24-hour mechanical dial like the T105 makes sense when you want one repeating daily schedule, simple field setup by moving trippers, and no programming menus for the next tech who opens the box. Its limits are the 1-hour minimum interval, the same schedule every day (no separate weekend program), and the need for constant 120V power to keep the clock turning. If you need weekday/weekend differences or astronomic on/off, choose an electronic or 7-day control instead.
8) What is the correct part number to order for the Intermatic T105 and is it part of a larger series?
Order it as Intermatic T105. It sits in the T100 series of mechanical time switches, which is the family a spec or drawing usually calls out; the T105 is the 120V, SPDT, indoor metal enclosure member of that family. Country of origin is Mexico.
9) Is the T105 a good fit for scheduling lights across a portfolio of buildings?
It is aimed at indoor lighting control and general ON/OFF timing and scheduling, which is why it shows up in retail, office, school and healthcare common areas. Because every unit is the same 120V SPDT indoor metal-enclosure build, standardizing on it keeps one spare on the shelf and one set of instructions for every site.
