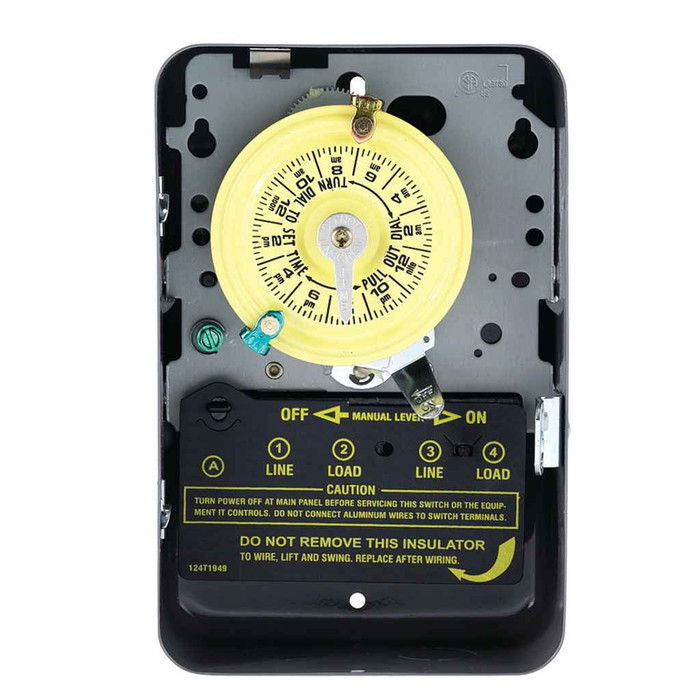

Intermatic T104 24-Hour Mechanical Time Switch, 208-277 VAC, 60Hz, DPST, Indoor Metal Enclosure, 1 Hour Interval

Intermatic T104 24-Hour Mechanical Time Switch 208-277V DPST Indoor Metal Enclosure System

(No reviews yet) Write a Review

Model: T104
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$200.44
$124.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic T104 24-Hour Mechanical Time Switch 208-277V DPST Indoor Metal Enclosure System

Professional 24-Hour Timing Control with Reliable Mechanical Operation

The Intermatic T104 24-Hour Mechanical Time Switch delivers dependable timing control for indoor lighting and scheduling applications. This professional-grade DPST time switch operates on 208-277 VAC, 60Hz power with a durable indoor metal enclosure, providing up to 12 ON/OFF operations daily with precise 1-hour interval control for versatile load management.

Professional Features & Benefits

  • 208-277 VAC Operation: Compatible with commercial voltage systems for reliable performance in professional installations.
  • DPST Configuration: Double-pole, single-throw switching provides enhanced control and isolation for demanding applications.
  • 12 Daily Operations: Up to 12 ON/OFF cycles per day with minimum 1-hour intervals enable flexible scheduling for diverse timing needs.
  • Indoor Metal Enclosure: Durable metal housing provides protection and professional appearance for interior installations.
  • Manual Override: Direct manual control capability ensures operational flexibility when automatic timing needs to be bypassed.
  • Universal Compatibility: Can be installed in most Intermatic enclosures for seamless integration with existing systems.
  • 1-Year Limited Warranty: Backed by manufacturer warranty for reliable long-term performance and peace of mind.

Technical Specifications

  • Applications: Indoor Lighting Control;Timing/Scheduling ON/OFF
  • Country Of Origin: Mexico
  • Depth: 3.437 in
  • Input Voltage Rating Range S : 208-277 VAC, 60 Hz
  • Marketing Description: The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
  • Product Color: Gray
  • Product Height: 7.875 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 5.125 in
  • Warranty Period: 1-Year limited

Professional Applications

  • Commercial Lighting Control Systems
  • Industrial Facility Scheduling
  • Office Building Automation
  • Retail Store Lighting Management
  • Educational Facility Controls
  • Healthcare Facility Operations
  • Multi-Tenant Building Systems

Why Choose Intermatic Quality?

Intermatic delivers proven reliability with mechanical time switch technology that stands the test of time. The T104 features durable indoor metal enclosure construction and is backed by a 1-year limited warranty, ensuring dependable performance for professional timing and scheduling applications.

Manufacturer Resources

Product Specs

Application:
Indoor Lighting Control;Timing/Scheduling ON/OFF
Country Of Origin:
Mexico
Input Voltage Rating Range S :
208-277 VAC, 60 Hz
Marketing Description:
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
Product Color:
Grey
Product Height:
7.875 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
5.125 in
Warranty Period:
1-Year limited
Product Depth:
3.437 in

Intermatic T104 – Frequently Asked Questions

1) Will the Intermatic T104 time switch work on a 277V lighting circuit?
Yes. The T104 is the 208-277 VAC, 60 Hz model in the T100 Series, so it lands directly on the 277V branch circuits used for commercial fluorescent and LED lighting, as well as 208V and 240V. If your load is on a 120V circuit, the T104 is the wrong model in the family, you need the 120V version instead.
2) Does the Intermatic T104 switch both hot legs of a 208V or 240V load?
It does. The T104 is DPST, double pole single throw, so both ungrounded conductors of a two-wire 208V, 240V or 277V load break together. That is what you want on a multi-wire commercial lighting circuit or a two-pole load where single-pole switching would leave one leg energized at the fixture.
3) How many on/off times a day can you set on an Intermatic T104, and how close together?
Twelve ON/OFF operations per day, with a minimum of 1 hour between a trip and the next one. The dial carries trippers you set by hand, so a typical office or retail schedule (on at open, off at close, plus a cleaning-crew window) fits easily. What it will not do is short cycling, anything under an hour apart is outside what the T104 mechanism can hold.
4) Does the Intermatic T104 mechanical timer keep time during a power outage?
No. The T104 is a mechanical time switch driven by a synchronous motor off the 208-277 VAC, 60 Hz supply, so the dial stops when power drops and restarts behind by the length of the outage. After any outage of consequence, reset the dial to the current time. If a facility sees frequent outages and the schedule has to survive them, a time switch with a carryover reserve is the better choice.
5) Can the Intermatic T104 be mounted outdoors or in a wet location?
Not as supplied. The T104 comes in an indoor metal enclosure, which is fine for an electrical room, a back-of-house corridor, or a mechanical space, but not for an exterior wall or a washdown area. The mechanism itself can be installed in most Intermatic enclosures, so for an outdoor pole or building exterior you would move the works into a raintight Intermatic enclosure rather than buying a different timer.
6) Is the Intermatic T104 a 24-hour timer or does it have a 7-day schedule?
24-hour only. The T104 repeats the same set of trips every day, which suits a building that runs the same hours seven days a week, parking lot lighting, corridor lighting, a sign. If you need the weekend to differ from the weekday, a 24-hour dial cannot do it, you need a 7-day time switch instead.
7) Can I override the Intermatic T104 timer by hand without changing the schedule?
Yes, the T104 has a manual override lever so maintenance or a tenant can force the load on or off between scheduled trips. The clock keeps running and picks the schedule back up at the next tripper, so you are not resetting the dial after every override.
8) What does the Intermatic T104 model number mean when I'm ordering?
T104 is the manufacturer part number itself, no suffix or option code to specify. Within the T100 Series the digits identify the voltage and switch configuration, and T104 is the 208-277 VAC DPST unit with the indoor metal enclosure. Order it by that number and you get the full assembly, mechanism and case.
9) Can I use an Intermatic T104 to control a contactor instead of switching the lights directly?
Yes, and on larger lighting banks that is the usual arrangement. The T104's DPST contacts drive a lighting contactor coil, and the contactor carries the load current. Since the T104 already operates on 208-277 VAC, the coil circuit can be taken from the same voltage class you are already controlling. Switching the fixtures directly through the timer works too on smaller loads.
10) Is the Intermatic T104 a good choice for standardizing timers across a portfolio of buildings?
It works well for that. The T104 is the same 24-hour mechanical unit across every site, so one spare part number covers all your 208-277V lighting schedules and any electrician on your call list already knows how to set the trippers, no app, no commissioning, no programming to lose. The limits to plan around, it repeats the same schedule daily and it loses time in an outage.
