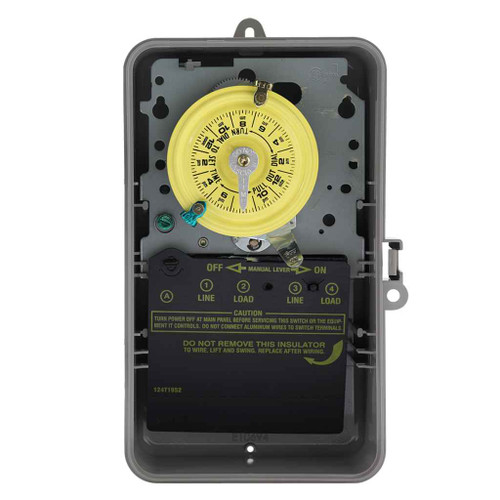

Intermatic T104R 24-Hour Mechanical Time Switch, 208-277 VAC, 60Hz, DPST, Indoor/Outdoor Metal Enclosure, 1 Hour Interval

Intermatic 24-Hour Mechanical Time Switch 208-277 VAC DPST Indoor/Outdoor Metal Enclosure

(No reviews yet) Write a Review

Model: T104R
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$253.70
$190.36
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Intermatic 24-Hour Mechanical Time Switch 208-277 VAC DPST Indoor/Outdoor Metal Enclosure

Professional 24-Hour Timing Control for Indoor and Outdoor Applications

The Intermatic 24-Hour Mechanical Time Switch delivers reliable timing control with 208-277 VAC operation and DPST switching capability. This professional-grade time switch features a durable indoor/outdoor metal enclosure and provides direct 24-hour control of most loads with proven mechanical reliability. The gray metal construction ensures long-lasting performance in both indoor and outdoor installations.

Professional Features & Benefits

  • 208-277 VAC, 60Hz Operation: Compatible with commercial voltage systems for versatile installation applications.
  • DPST Switching: Double-pole, single-throw configuration provides reliable load control and isolation.
  • Indoor/Outdoor Metal Enclosure: Durable gray metal construction withstands environmental conditions for long-term reliability.
  • Up to 12 ON/OFF Operations Daily: Flexible scheduling with minimum one-hour intervals for precise timing control.
  • Manual Override Function: Allows immediate manual control when automatic scheduling needs to be bypassed.
  • Compatible Installation: Can be installed in most Intermatic enclosures for flexible mounting options.
  • 1-Year Limited Warranty: Professional warranty coverage ensures reliable performance and customer confidence.

Technical Specifications

  • Applications: Indoor Lighting Control;Outdoor Lighting Control;Timing/Scheduling ON/OFF
  • Country Of Origin: Mexico
  • Depth: 3.625 in
  • Input Voltage Rating Range S : 208-277 VAC, 60 Hz
  • Marketing Description: The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
  • Product Color: Gray
  • Product Height: 10.125 in
  • Product Length: NA NA
  • Product Weight: NA lbs
  • Product Width: 6.5 in
  • Warranty Period: 1-Year limited

Professional Applications

  • Indoor Lighting Control Systems
  • Outdoor Lighting Management
  • Commercial Building Automation
  • Industrial Timing Applications
  • Facility Load Scheduling
  • Energy Management Systems
  • Security Lighting Control

Why Choose Intermatic Quality?

Intermatic delivers proven mechanical time switch technology with durable metal enclosure construction and comprehensive 1-year limited warranty coverage. The T100 Series has demonstrated long-term reliability in professional timing control applications, making it a trusted choice for indoor and outdoor installations requiring dependable 24-hour load management.

Manufacturer Resources

Product Specs

Application:
Indoor Lighting Control;Outdoor Lighting Control;Timing/Scheduling ON/OFF
Country Of Origin:
Mexico
Input Voltage Rating Range S :
208-277 VAC, 60 Hz
Marketing Description:
The T100 Series Mechanical Time Switch has proven it can stand the test of time. These dependable t
Product Color:
Gray
Product Height:
10.125 in
Product Length:
NA NA
Product Weight:
NA lbs
Product Width:
6.5 in
Warranty Period:
1-Year limited
Product Depth:
3.625 in

Intermatic T104R – Frequently Asked Questions

1) What does DPST switching mean on this timer, and can it control a two-pole 240V load?
DPST means double pole, single throw: the T104R opens and closes two hot legs at once from one timing mechanism. That lets it switch both ungrounded conductors of a 208V or 240V load, or two separate 277V legs together. It is a single schedule driving both poles, not two independent circuits on different times.
2) Can the Intermatic T104R be mounted outdoors on a building exterior?
Yes. The T104R ships in a gray metal indoor/outdoor enclosure, so it can be surface mounted on an exterior wall for parking lot, sign, or security lighting as well as indoors in a mechanical room.
3) How many on/off times a day can I program on this mechanical time switch?
Up to 12 ON/OFF operations per day, with a minimum of one hour between a trip pin and the next. So you can run a morning and evening lighting block plus midday cycles, but you cannot schedule anything shorter than an hour apart. If you need 15 or 30 minute resolution, a mechanical 24-hour dial of this type is the wrong tool.
4) How much wall space do I need to mount the T104R enclosure?
Allow for an enclosure measuring 10.125 in high, 6.5 in wide and 3.625 in deep, plus clearance to swing the door and land conduit. Worth checking before you commit a spot in a crowded electrical closet or on a narrow pilaster.
5) Can maintenance staff turn the lights on manually without disturbing the schedule?
Yes. The timer has a manual override lever that lets someone switch the load on or off right at the cabinet, then hand control back to the dial at the next scheduled trip. Useful for after-hours work or testing a circuit without pulling pins.
6) Is this a 24-hour timer only, or does it skip weekends?
It is a 24-hour dial. The same schedule repeats every day, so the T104R does not differentiate weekdays from weekends or holidays. For a schedule that varies by day of week you need a 7-day astronomic or electronic time switch instead.
7) I have an existing Intermatic enclosure on the wall. Can I just swap the mechanism in?
The T104R mechanism can be installed in most Intermatic enclosures, so if you already have a case and raceway in place you can reuse the mounting and conduit rather than re-drilling a new box. Confirm the existing can is sized for the T100 Series chassis.
8) Is the T104R suitable for standardizing outdoor lighting control across a portfolio of buildings?
It is a reasonable fleet standard where every site runs 208-277 VAC lighting and wants a simple daily on/off. The T100 Series is a long-running mechanical platform, the applications listed are indoor lighting control, outdoor lighting control and general ON/OFF scheduling, and the metal cabinet suits both interior panels and exterior walls. Sites fed at 120V will need a different voltage model, so the portfolio is only truly standardized if the supply matches.
9) What is the exact manufacturer part number and where is it made?
The part number is Intermatic T104R, UPC 078275000124, and it is manufactured in Mexico. It sits in the T100 Series mechanical time switch family.
