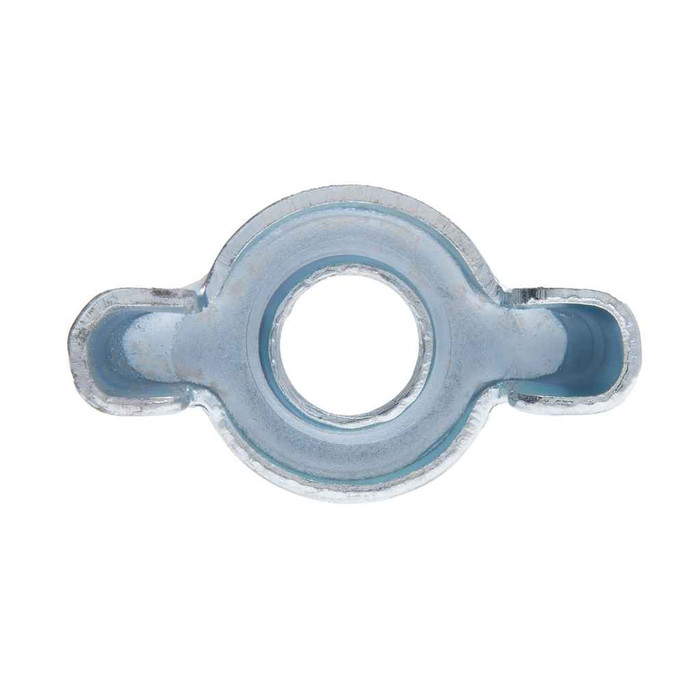

Nuts 10-24 Stamp Wing Nut SS (Jar 100)
Features
- Designed for Rapid Assembly and Disassembly by Hand
Additional Notes
- Other sizes and quantities available by request, Does not specify dimensions for #4, 7/16 and 1/2 inch diameter type-D stamped wing nuts.
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Base Diameter:
- 0.47 - 0.53
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stamped_Wing_Nuts_18-8_SS.pdf
- Number Of Holes:
- 1
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 2.15 in
- Product Length:
- 3 in
- Product Weight:
- 0.77 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 24
- Thread Standard:
- ANSI/ASME B18.17
- Wing Height:
- 0.41 - 0.47
- Wing Spread:
- 0.85 - 0.91
- Wing Thickness:
- 0.17 - 0.21
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Stamped Wing Nut
- Type2:
- Stamped Wing Nut
- Series:
- JWN
- Product Details:
- Stamped Wing Nut
- Product Material:
- 18-8 Stainless Steel
Metallics JWN4SS – Frequently Asked Questions
1) What thread size is the Metallics JWN4SS wing nut, and will it fit a #10-24 machine screw?
The JWN4SS is a 10-24 stamped wing nut, so it threads onto any standard #10-24 machine screw or threaded rod. Thread pitch is 24 threads per inch, made to ANSI/ASME B18.17. It will not fit #10-32 fine thread hardware.
2) Are these Metallics wing nuts stainless, and can they be used outdoors or in damp locations?
They are 18-8 stainless steel, the standard austenitic grade used where plated steel would rust, so they hold up in damp and outdoor-exposed assemblies. Metallics lists them for electrical, plumbing, and heating and air conditioning work.
3) Do these Metallics stainless wing nuts meet Buy American or ARRA requirements for a government job?
No. The JWN4SS is flagged as not Buy American compliant and not ARRA compliant, with country of origin listed as multiple. If your project carries a domestic-sourcing clause, this part will not satisfy it.
4) How big are the wings on the JWN4SS - can they be turned by hand with gloves on?
Wing spread is 0.85 to 0.91 inch with a wing height of 0.41 to 0.47 inch and wing thickness of 0.17 to 0.21 inch. That is enough grip surface for bare-hand or light-glove tightening, which is the point of the part: rapid assembly and disassembly by hand, no tool. Base diameter runs 0.47 to 0.53 inch, so allow that much clearance around the fastener hole.
5) How are the Metallics JWN4SS wing nuts packaged, and what is the minimum I can order?
They ship in a jar of 100, and the jar is the minimum order unit. Packed weight is 0.77 lbs for the jar. If you need a different count or a different screw size, Metallics states other sizes and quantities are available by request.
6) Is a stamped wing nut strong enough, or should I use a forged one?
A stamped wing nut like the JWN4SS is formed from sheet and is meant for hand-tight clamping on covers, grounding straps, and panels you expect to open again, not for high-torque structural joints. If the connection needs real preload or repeated heavy wrenching, use a cast or forged wing nut or a standard hex nut instead. The design intent here is rapid assembly and disassembly by hand.
