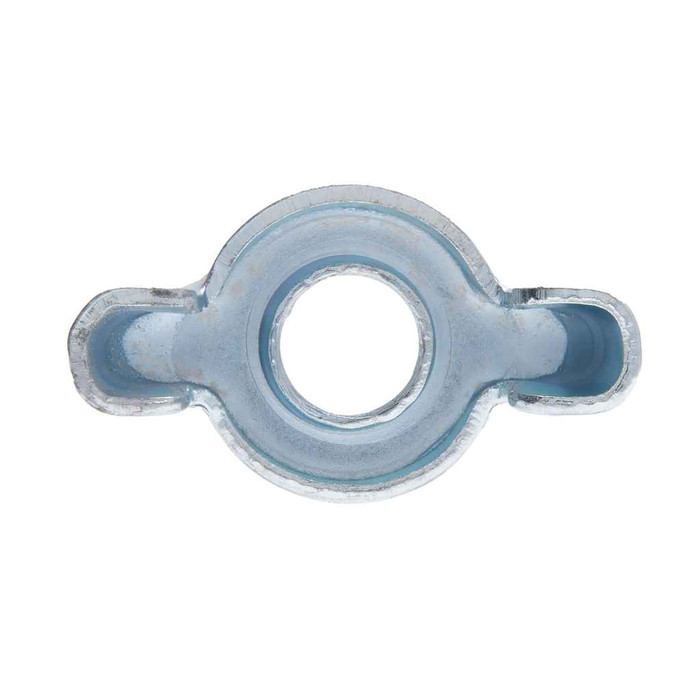

Nuts 3/8-16 Stamp Wing Nut SS (Jar 100)
Features
- Designed for Rapid Assembly and Disassembly by Hand
Additional Notes
- Other sizes and quantities available by request, Does not specify dimensions for #4, 7/16 and 1/2 inch diameter type-D stamped wing nuts.
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Base Diameter:
- 0.77 - 0.83
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stamped_Wing_Nuts_18-8_SS.pdf
- Number Of Holes:
- 1
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 4.57 in
- Product Length:
- 3 in
- Product Weight:
- 3.35 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 16
- Thread Standard:
- ANSI/ASME B18.17
- Wing Height:
- 0.61 - 0.67
- Wing Spread:
- 1.34 - 1.41
- Wing Thickness:
- 0.30 - 0.34
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Stamped Wing Nut
- Type2:
- Stamped Wing Nut
- Series:
- JWN
- Product Details:
- Stamped Wing Nut
- Product Material:
- 18-8 Stainless Steel
Metallics JWN8SS – Frequently Asked Questions
1) Will the Metallics JWN8SS wing nut thread onto 3/8-16 all-thread rod?
Yes. The JWN8SS is a 3/8-16 stamped wing nut, 16 threads per inch, made to ANSI/ASME B18.17. That matches standard 3/8-16 UNC threaded rod and bolts, which is the rod size most commonly used for electrical and mechanical hangers.
2) Is the JWN8SS wing nut stainless, and can it be used outdoors or in a damp location?
It is 18-8 stainless steel, the austenitic 300-series grade used where plated carbon steel would rust. That makes it suitable for wet and corrosive areas such as exterior runs, mechanical rooms, and washdown spaces.
3) Is the JWN8SS wing nut Buy American or ARRA compliant for a public project?
No on both counts. The JWN8SS is not Buy American compliant and is not ARRA compliant, with multiple countries of origin. On a federally funded job with domestic sourcing requirements, specify a domestic fastener instead.
4) How are Metallics JWN8SS wing nuts packaged and what is the minimum order?
They ship in a jar of 100 pieces, and the jar is the minimum order unit. The packed jar weighs 3.35 lbs and measures 4.57 x 3 x 3 inches, so it stores easily on a van shelf or in a job box.
5) When should I use a stamped wing nut instead of a standard hex nut on a hanger rod?
Use the wing nut where the connection gets taken apart again. A stamped wing nut is tightened and loosened by hand with no wrench, which suits access covers, temporary supports, grounding straps, and anything you expect to service. For a permanent structural support carrying load, a hex nut torqued with a wrench is the right call, since a hand-tightened stamped wing has far less clamping force.
6) What trades use the Metallics JWN series stainless wing nuts?
They are catalogued for the electrical, plumbing, heating and air conditioning industries. In practice that means hanger rod, strut accessories, panel and enclosure covers, and duct or equipment fastenings where a hand-removable nut is wanted.
7) Can I get the Metallics stamped wing nut in a size other than 3/8-16?
Other sizes and quantities in the JWN stamped wing nut line are available by request. The JWN8SS itself is the 3/8-16 stainless version, supplied 100 to a jar.
