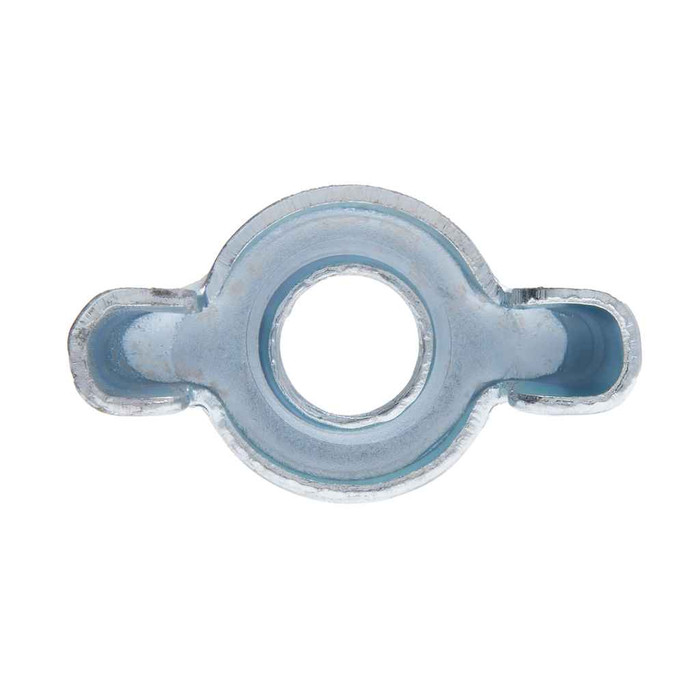

Nuts 3/8-16 Stamp Wing Nut St-zn (Jar 100)
Additional Notes
- Other sizes and quantities available by request, Does not specify dimensions for #4, 7/16 and 1/2 inch diameter type-D stamped wing nuts.
Features
- Designed for Rapid Assembly and Disassembly by Hand
Manufacturer Resources
Product Specs
- Arra Compliant:
- N
- Base Diameter:
- 0.77 - 0.83
- Buy American Compliant:
- No
- Division:
- Electrical H1
- Field Application:
- Electrical, Plumbing, Heating and Air Conditioning Industries
- Language Code:
- EN
- Neurspe:
- https://ideadigitalasset.com/DAMRoot/Original/10035/11237_ID-SPE-v1-ID-SPE-v1-Stamped_Wing_Nuts_St-Zn.pdf
- Number Of Holes:
- 1
- Order Minimum Imperial:
- 100
- Order Minimum Uom Imperial:
- JR
- Pack Type:
- Jar
- Product Group:
- Fasteners
- Product Height:
- 4.57 in
- Product Length:
- 3 in
- Product Weight:
- 2.75 lbs
- Product Width:
- 3 in
- Sub Division:
- Electrical-E H2
- Thread Per Inch:
- 16
- Thread Standard:
- ANSI/ASME B18.17
- Wing Height:
- 0.61 - 0.67
- Wing Spread:
- 1.34 - 1.41
- Wing Thickness:
- 0.30 - 0.34
- Department:
- Electrical
- Product Subgroup:
- Nuts
- Product Type:
- Stamped Wing Nut
- Type2:
- Stamped Wing Nut
- Series:
- JWN
- Product Finish:
- Zinc
- Product Details:
- Stamped Wing Nut
- Product Material:
- Steel
Metallics JWN8 – Frequently Asked Questions
1) What thread does the Metallics JWN8 wing nut take, and will it run onto a standard 3/8 inch rod or bolt?
The JWN8 is a 3/8-16 stamped wing nut, so 16 threads per inch on a 3/8 inch diameter fastener. That matches standard 3/8-16 UNC threaded rod, hanger rod, and bolts, and the thread is made to ANSI/ASME B18.17. It will not run on 3/8-24 fine thread.
2) Do these wing nuts qualify for a Buy American or ARRA funded project?
No. The JWN8 stamped wing nut is not Buy American compliant and is not ARRA compliant, with multiple countries of origin on record. If your job carries a domestic sourcing requirement, this part will not satisfy it.
3) Is a stamped wing nut strong enough, or should I use a cast wing nut or a hex nut instead?
The JWN8 is a stamped steel wing nut with wings 0.30 to 0.34 inches thick, built for hand tightening and quick removal rather than torqued structural joints. Use it where panels, covers, guards, or temporary assemblies come on and off by hand. Where the connection carries real load or needs to be torqued to a value, specify a hex nut and tighten it with a wrench; a stamped wing is not meant to be driven with a tool.
4) How are Metallics JWN8 wing nuts packaged and what is the smallest quantity I can buy?
They ship in a jar of 100, and that jar is the minimum order quantity, so the buy is in multiples of 100 pieces. Total packed weight is 2.75 lbs.
5) I need the same wing nut in a different size than 3/8-16. What are my options?
The JWN series covers other diameters and pack quantities beyond the 3/8-16 JWN8, available by request. Match on thread size and pitch, since the wing geometry scales with the diameter.
