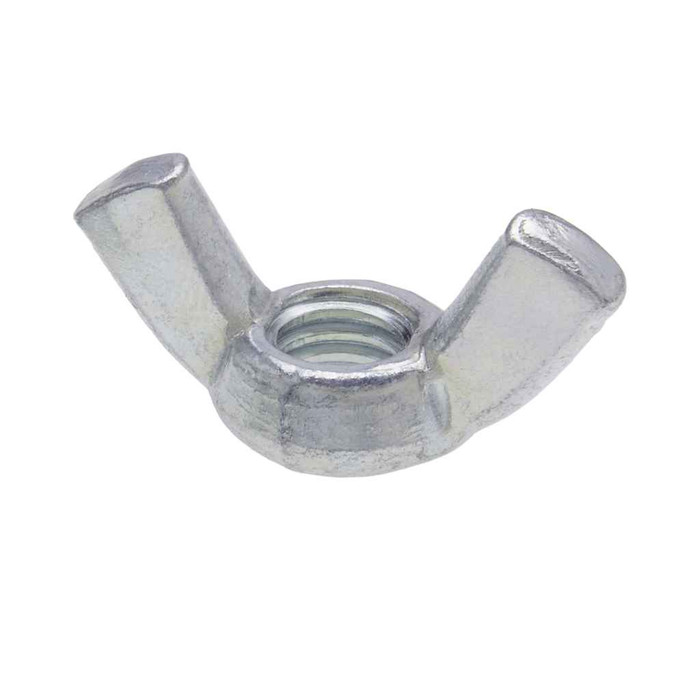

Metallics JWNCF5 Nuts 10-32 Wing Nut Forge-St (Jar 100)

The JWNCF5 is a 10-32 wing nut, so it threads onto a #10 machine screw or threaded rod at 32 threads per inch. That is the standard fine thread for #10 fasteners, so it will run onto 10-32 all-thread, fixture studs, and machine screws, but not onto a 10-24 coarse screw. Threads are made to ANSI/ASME B18.17.

The JWNCF5 is flagged as both Buy American compliant and ARRA compliant, which is what a public-agency, school, or federally funded project submittal usually asks for on fasteners. Country of origin is listed as multiple.

This one is cold forged steel rather than stamped sheet. The wings are 0.10 to 0.14 inch thick with a 0.78 to 0.91 inch spread, which gives enough grip and rigidity to pull a connection tight by hand without the wings folding back the way thin stamped wings do. If you only need light finger tension on a cover or a temporary hold, a stamped wing nut is the lighter-duty alternative.

Plan on roughly an inch of swing clearance. The wings spread 0.78 to 0.91 inch across, the base is 0.39 to 0.43 inch in diameter, and wing height runs 0.34 to 0.47 inch. In a tight box or behind a fixture canopy where you cannot get a full turn of the wings, a hex nut on the same 10-32 thread is the better choice.

They come 100 to a jar, and 100 count is the order minimum. The jar keeps loose nuts contained on a service truck or MRO shelf rather than spilling in a bin. Other sizes and quantities are available by request.

The JWNCF5 is zinc finished over forged steel, which handles indoor and normally dry locations and gives moderate corrosion resistance in damp areas. For continuous wet exposure, coastal air, or direct weather, specify stainless rather than zinc plated steel.

A jar of 100 runs 0.72 lbs, with the container measuring 3 x 3 x 2.15 inches. Small enough to keep several sizes on a van without eating shelf space.
