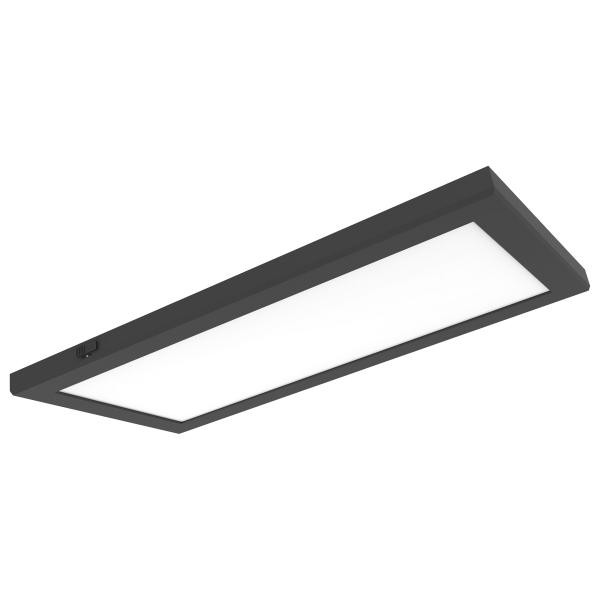

NUVO Lighting 62-1785 Blink Pro Plus, 47W, 12 in. x 48in, Surface Mount LED, CCT Selectable, 90 CRI, Rectangular Shape

Yes. The Blink Pro Plus 62-1785 is a dual-voltage fixture wired for 120V or 277V, so it drops onto either a standard 120V branch circuit or a 277V commercial lighting circuit with no separate part number. Pulls 47 watts either way.

The nominal 12 in. x 48 in. call-out is the trade size. Actual fixture dimensions are 47.72 inches long, 11.83 inches wide, and 1.06 inches high, at 8.82 lbs. That 1.06 inch depth is why it reads as a flush panel rather than a wrap, and it matters if you are working under a low soffit or tight to ductwork.

Bathroom ceiling yes, covered exterior walkway no. The 62-1785 is rated for damp locations and listed as an indoor fixture, so it handles the humidity of a bathroom, locker room, or laundry. It is not wet rated, so keep it out of direct spray and off any exterior application, even a covered one. Safety listing is cETLus.

Ceiling mount. The Blink Pro Plus 62-1785 is a surface mount close-to-ceiling fixture, installed flat against the deck rather than recessed into a grid or drywall opening. That is what makes it useful in concrete-deck corridors, parking structures, and basements where there is no plenum to recess into.

You do not pick a Kelvin when you order. The 62-1785 is CCT selectable, so the color temperature is set at the fixture during install. For a property manager standardizing across a building, that means one SKU stocked on the shelf covers whatever the other openings and corridors are already running.

Dimmable, yes. Relamping, no. The 62-1785 is an integrated LED, meaning the diodes are built into the fixture and there is no socket or replaceable lamp. Rated life is 50,000 hours, so plan on it as a fixture replacement at end of life rather than a maintenance lamp change. Confirm your dimmer is an LED-compatible control before you tie it in.

Output is 3450 to 3800 lumens depending on the CCT setting you select, from 47 watts. The 90 CRI rendering is the reason to spec it over a standard 80 CRI panel: it matters where people judge color, so retail display, healthcare exam and patient rooms, salons, and hospitality corridors where finishes and skin tone need to read correctly.

Black only, on a die-cast aluminum base. The aluminum housing doubles as the heat sink for the LED, which is what supports the 50,000 hour rated life. The black contemporary finish is the reason it gets specced in exposed-deck retail and office fit-outs where a white wrap fixture would stand out against dark ceilings.

Edge lit. The LEDs fire in from the perimeter through a diffusing panel rather than sitting behind the lens, which is how NUVO gets the 1.06 inch overall depth on a 47.72 inch fixture and why the face reads as an even sheet of light instead of a row of hot spots. If you are replacing a troffer in an area where glare is a complaint, that construction is the difference.

Order NUVO Lighting 62-1785, the Blink Pro Plus 47W surface mount LED in black. NUVO also writes the same number as 62/1785 with a slash on packaging and price sheets, so the two designations are the same fixture. There is a single configuration, so no finish or Kelvin suffix is needed on the PO.

RoHS compliant, yes. It also carries a California Proposition 65 warning for lead, which is standard disclosure on wired electrical assemblies and is required information for institutional and government procurement files. Safety listing is cETLus, covering both US and Canadian requirements.

At 8.82 lbs over a 47.72 inch body, the Blink Pro Plus is a one-man hang for a run of fixtures, unlike a comparable-length steel wrap. The die-cast aluminum housing carries the load, so standard ceiling anchoring for the deck type is enough. Worth knowing if you are bidding a corridor retrofit with a couple dozen units.
