NUVO Lighting 62-1803 7in, LED...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$17.99
NUVO Lighting NUV-62-1803 7 inch - LED Disk Light - 5-CCT Selectable 27K/3K/35K/4K/5K - Bronze Finish

NUVO Lighting 62-1803 7in, LED Disk Light, 5-CCT Selectable 27K/3K/35K/4K/5K, Bronze Finish

(No reviews yet) Write a Review

Model: 62-1803
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$17.99
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

NUVO Lighting 62-1803 7in, LED Disk Light, 5-CCT Selectable 27K/3K/35K/4K/5K, Bronze Finish

SATCO's newest LED CCT Selectable Disk Lights, feature our innovative ColorQuick™ Selectable CCT technology. These lights offer a versatile range of color temperature options, including 2700K, 3000K, 3500K, 4000K, and 5000K, allowing you to customize the lighting ambiance to suit your preference or specific needs. Available in both 7-inch and 10-inch sizes, these disk lights provide options to accommodate various spaces. You can purchase them individually or in convenient 6-pack contractor packs, making them suitable for both personal and professional use. Made with durable steel construction and featuring an acrylic lens, these lights ensure long-lasting performance. With a high CRI of 90, they deliver excellent color accuracy and vibrant illumination. Our LED CCT Selectable Disk Lights come equipped with built-in 2.5KV surge protection, offering added electrical safety and durability. With a rated life of 50,000 hours and a wet location rating, these lights provide reliable and efficient illumination for extended periods in numerous locations. They can be easily mounted to 3 and 4-inch junction boxes, simplifying the installation process. To learn more about SATCO's LED CCT Selectable Disk Lights and explore their features and benefits, visit SATCO.com. Experience the convenience, quality, and customizable lighting options offered by these innovative disk lights.

7 inch - LED Disk Light - 5-CCT Selectable 27K/3K/35K/4K/5K - Bronze Finish

  • Warranty: 5 Year Limited - Fixtures
  • Dimensions: H:1.42" DIA:7.42"

62-1803 Spec Sheet

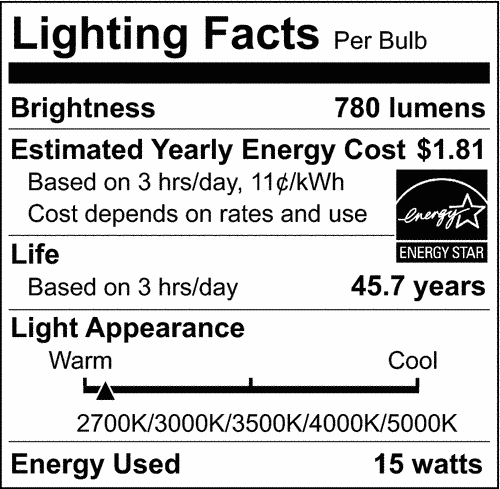

62-1803 Lighting Facts Label

62-1803 Instructions

Manufacturer Resources

Product Specs

CCT Selectable:
Yes
Dimmable:
Yes
Lamp Base:
Integrated
Lamp Shape:
Integrated LED
Location Rating:
Wet
Lumens:
780L-910L
Product Type:
Disk Light
RoHS Compliant:
Yes
Warranty:
5 Year Limited - Fixtures
Bulb Voltage:
120V
Bulb Wattage:
15
Bulbs Included:
Integrated
Product Group:
Commercial Indoor Lighting
CRI:
93
Product Subgroup:
Disk Light
Safety Listing:
cETLus
Subcategory:
LED Disk
Technology:
LED
Avg Rated Hours:
50000
CA Prop 65 Chemicals:
Lead
Base Material:
Steel
Location Indoor/ Outdoor:
Indoor
Product Voltage:
120V
Product Diameter:
7.42"
Mounting Method:
Ceiling
Product Style:
Contemporary
Product Height:
1.42"
Product Category:
Close-to-Ceiling
Product Weight:
0.58lbs
Product Wattage:
15W

NUVO Lighting 62-1803 – Frequently Asked Questions

1) Will the NUVO 62-1803 disk light mount to an existing junction box?
Yes. The 62-1803 7 inch disk light mounts to 3 inch and 4 inch junction boxes and is a ceiling-mount, close-to-ceiling fixture. The housing is 7.42 inches in diameter and 1.42 inches high, so it covers the box opening and sits nearly flush to the ceiling. No recessed can is needed.
2) Can I use this LED disk light in a covered porch, bathroom, or laundry area?
The 62-1803 carries a wet location rating and is cETLus safety listed, so damp areas like bathrooms, laundry rooms and covered exteriors are within its rating. Note the fixture is also catalogued for indoor use, so for fully exposed exterior positions confirm the mounting location stays protected.
3) How do I set the color temperature on the NUVO 62-1803, and what are the choices?
Color temperature is field selectable on the fixture itself, no separate driver or controller. Five settings: 2700K, 3000K, 3500K, 4000K and 5000K. That lets a property manager stock one SKU and match warm 2700K in residential units and 4000K or 5000K in back-of-house and garage areas.
4) How much light does a 15W disk light actually put out, and how many do I need for a room?
Output runs 780 to 910 lumens at 15W, 120V, with the lumen figure shifting across the five CCT settings. That is comparable to a single well-sized ceiling fixture for a small bath, hall or closet; for a bedroom or kitchen most layouts use several spaced across the ceiling. CRI is 93, so finishes and skin tones read accurately.
5) Is the NUVO 62-1803 dimmable, and do I need a special LED dimmer?
The fixture is dimmable and runs on standard 120V line voltage. The LED is integrated, so dimming performance comes from the fixture's own driver paired with your wall control. Use an LED-rated dimmer; standard incandescent dimmers with high minimum loads often cause flicker on a single 15W fixture.
6) Can the bulb be replaced in this disk light when it burns out?
No. The LED is integrated into the 62-1803, so there is no lamp to change. Rated life is 50,000 hours, and at end of life the fixture is replaced rather than relamped. For maintenance planning in multi-family or MRO, treat it as a sealed fixture.
7) Should I use a 7 inch or a 10 inch disk light?
The 62-1803 is the 7 inch bronze version, 7.42 inches across. Pick 7 inch for halls, closets, small baths and tight fixture spacing; the 10 inch size in the same SATCO CCT selectable disk family covers larger rooms and wider fixture spacing with fewer units. Both mount to 3 and 4 inch junction boxes.
8) What is the NUVO 62-1803 made of, and will it hold up in a rental or commercial corridor?
Steel housing with an acrylic lens, in a bronze finish. Built-in 2.5KV surge protection is included, which matters on circuits that see switching transients. At 0.58 lbs the fixture puts minimal load on a standard ceiling box.
9) Is the bronze 62-1803 offered in other finishes or in a contractor multi-pack?
The 62-1803 is the bronze finish, 7 inch, 5-CCT selectable unit. SATCO's CCT selectable disk lights are sold individually or in 6-pack contractor packs, which is the way most multi-family and remodel jobs buy them. Order the bronze if you are matching existing bronze trim; the finish is fixed per part number, not field selectable.
10) Does this NUVO disk light carry a California Prop 65 warning?
Yes. The 62-1803 carries a California Prop 65 notice for lead. It is also RoHS compliant. Institutional and government buyers who track Prop 65 disclosures should flag it in their submittal package.
