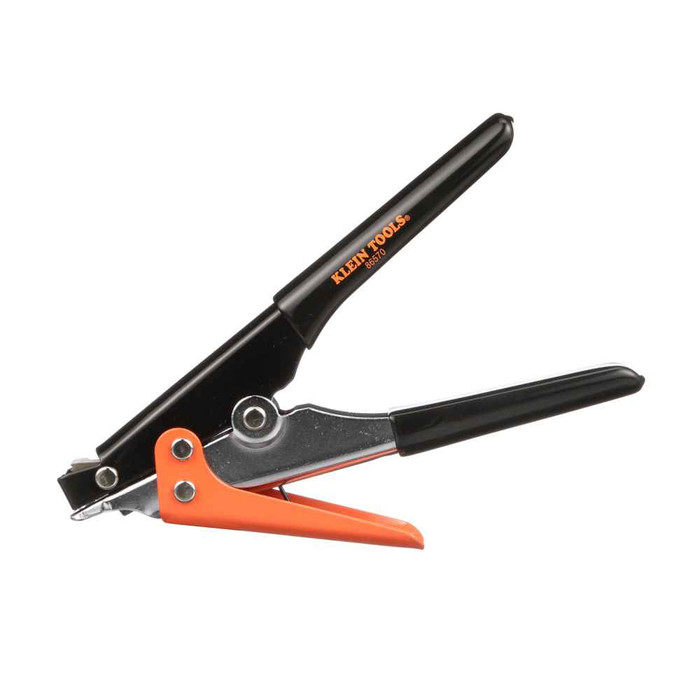

Nylon Tie Tensioning Tool
86570 - spec sheet
Warnings
- Not insulated. Will not protect against electrical shock.
- Always wear approved eye protection.
Features
- Feed end of tie through tip of tool
- Tensions up to 65 lb (30 kg)
- Designed for work with ties rated at 120-250-pounds (54.4 to 113 kg)
- Tighten with tool handles and use lever to cut off excess tie material
- Nylon Tensioning Tool tensions up to 65-Pound (29.5 kg)
- Handle grips for comfort
- Maximum tie width of 15/32-Inch (1.2 cm)
86570 - spec sheet
Manufacturer Resources
Spec Sheet
Product Specs
- Accessories:
- 5111, 5166
- Cable Size:
- Maximum 15/32" (1.2 cm)
- Handle Type:
- Handle Grips for Comfort
- Item Depth:
- 7.8000 in
- Item Height:
- 1.0000 in
- Item Weight:
- 0.8700 lbs
- Item Width:
- 6.0000 in
- Overall Length:
- 7.8" (19.2 cm)
- Department:
- Electrical
- Product Group:
- Hand Tools
- Product Subgroup:
- Tool Kits
- Product Type:
- HVAC Nylon Tie Tensioning Tools
- Product Details:
- HVAC Nylon Tie Tensioning Tools
- Product Weight:
- 13.9 oz (395 g)
Klein Tools 86570 – Frequently Asked Questions
1) Does this Klein tie tool cut the excess tail, or do I still need flush cutters?
It cuts. You feed the tie tail through the tip, squeeze the handles to tension, then work the lever to shear off the excess. One tool, one motion per tie, so no second pass with snips on a long run of bundles.
2) Is the Klein 86570 safe to use on energized circuits?
No. The 86570 is not insulated and will not protect against electrical shock. De-energize before bundling conductors, and wear approved eye protection, since the cut tie tail leaves a stub and can flick loose.
3) Is this tool small enough to carry in a pouch and use overhead in a ceiling?
Overall length is 7.8 inches (19.2 cm), with a 6 inch width and 1 inch height, and it weighs 13.9 oz (395 g). That is a pouch-sized, one-hand tool, which matters when you are tensioning ties on trapeze-hung conduit or ductwork above a ceiling grid. The handles have comfort grips for repeated squeezing on long runs.
4) Do ties or a pouch come with the Klein 86570, or do I order those separately?
The 86570 ships as the tool only. No nylon ties are included, so order the ties for your bundle size separately. Klein lists accessories 5111 and 5166 as companion items for it.
5) Will this work for strapping duct and refrigerant line sets, or is it only an electrical tool?
Both. It is catalogued on the electrical side, but it is built as an HVAC nylon tie tensioning tool, so bundling line sets, flex duct straps and sensor wiring is squarely in scope. The limits are the same either way: ties no wider than 15/32 inch, and tension capped at 65 lb.
6) What is the Klein part number for the nylon tie tensioning tool?
Klein Tools 86570, sold as a single model with manufacturer part number 86570. There are no finish or size variations to specify.
