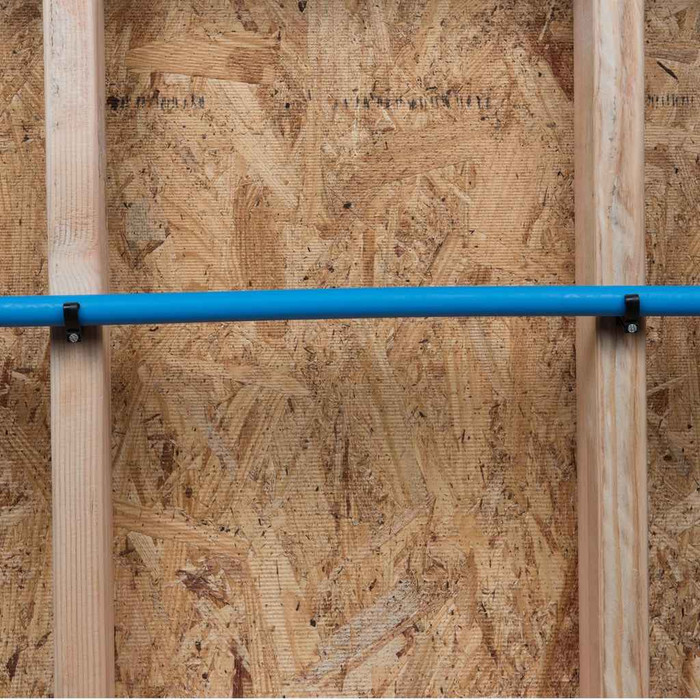

1/2" - 3/4" DuoFit™ Pipe Support With Nails
34295 - spec sheet
Features
- Constructed of black polypropylene
- Move pre-loaded nail to keep pipe off of stud
- For warranty product details, refer to the Oatey Limited Warranty document
- 1/2" and 3/4" pipe support
- Eliminate contact between the pipe and framing surface and insulate against sound
- Use on copper, CPVC and PEX
34295 - spec sheet
Manufacturer Resources
Product Specs
- Temperature Range:
- 0°F - 160°F
- Volume:
- 0.021
- Department:
- Plumbing
- Product Group:
- Plumbing Accessories
- Product Subgroup:
- Pipe Supports
- Product Type:
- Support Clamp
- Product Weight:
- 0.117
OATEY 34295 – Frequently Asked Questions
1) Will the Oatey 34295 DuoFit pipe support work with PEX, or is it copper only?
The 34295 DuoFit support handles copper, CPVC and PEX tubing in 1/2 inch and 3/4 inch sizes. One part covers both sizes, so a plumber roughing in a mixed-material job can carry a single support instead of separate clips per material.
2) Does the Oatey 34295 pipe support come with nails, or do I need to supply fasteners?
Nails are pre-loaded in the 34295, so nothing else is needed to fasten it to framing. The nail position can be moved to hold the pipe off the face of the stud.
3) How do I keep copper pipe from rubbing against the stud and ticking inside the wall?
That is what the 34295 DuoFit is for. The black polypropylene body separates the pipe from the framing surface and dampens sound transmission, and the pre-loaded nail can be relocated so the pipe sits off the stud rather than against it. Useful on multi-family and hotel work where water hammer and pipe tick generate complaints.
4) Can I use the Oatey 34295 DuoFit support on a hot water line?
The 34295 is rated for a service temperature range of 0 to 160 degrees F. That covers normal domestic hot water distribution. It is not a part for high temperature hydronic or steam piping above that range, and the 0 degree low end means it is fine in unheated crawl spaces.
5) What is the Oatey 34295 made of, and will it hold up in an exterior or damp wall?
It is molded from black polypropylene, so there is nothing to corrode where copper or steel clips would. Polypropylene also isolates copper from contact with metal framing or fasteners. Service range is 0 to 160 degrees F.
6) Is the Oatey 34295 DuoFit a single piece or does it ship as a multi-pack?
The 34295 is ordered as a single Oatey manufacturer part number, 34295, and each piece weighs 0.117 pounds. Buyers standardizing a rough-in kit typically order by the count of stud bays being piped.
