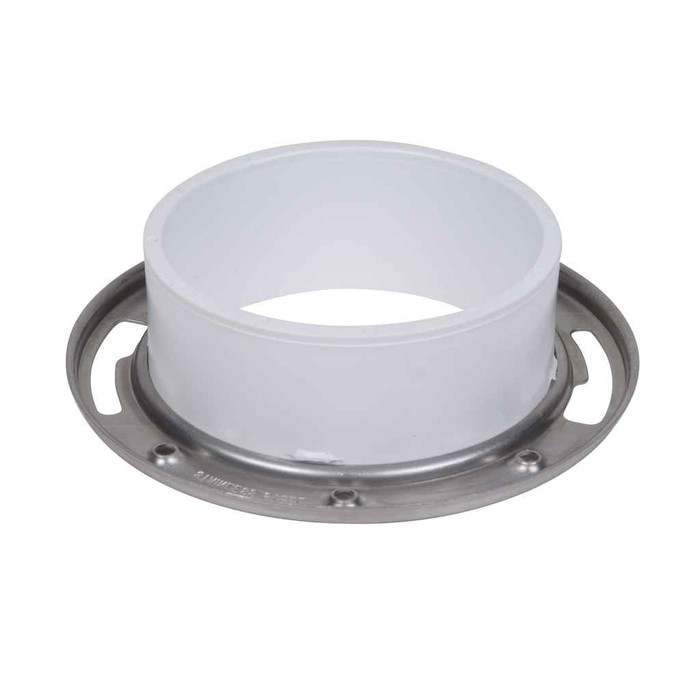

OATEY 43499 4 in. PVC Closet Flange with Stainelss Steel Ring without Test Cap

It fits over 4 inch pipe. The 43499 is a PVC Level-Fit toilet flange sized to go over the outside of 4 inch pipe, so the hub slips down over the stack rather than being inserted into it. If your rough-in is a 3 inch pipe, this is the wrong part for the opening.

The 43499 uses a stainless steel ring with patented bolt slot shelves that hold standard closet bolts in place and keep them from falling through the slot. That is the difference between this and a plain plastic-ring flange, where the bolt drops as soon as you let go while setting the bowl.

No. The 43499 is the version supplied without a test cap. If you need to pressure or water test the DWV rough-in through the closet opening before setting the bowl, order the test-cap version of the flange instead, or plan on a separate knockout plug.

Yes. The stainless ring on the 43499 rotates independently of the PVC body, so you can glue the flange to the pipe first and then spin the ring to line the closet bolts and screw holes up with the bowl and the joists. That matters on remodels where the stack location is fixed and the bolts have to land square to the wall.

Six screw holes. Oatey spaced them so the flange can be anchored on wood or concrete regardless of how the joists or subfloor seams fall under it, which is the usual problem with four-hole flanges on a tight bay.

A straight Level-Fit flange like the 43499 is for a sound 4 inch PVC stub that comes up at or near finished floor height, glued on and screwed down. Use an offset flange when the stack is not centered under the bowl's rough-in, and a repair or spanner flange when the existing flange ring is broken but the pipe is still good and you do not want to cut it. This one assumes you can solvent weld to clean 4 inch pipe.

Each 43499 flange is listed at 0.833 lb with a volume of 0.074, which is useful if you are buying them by the case for a multi-family or hotel bathroom refit and need to figure freight.
