OATEY 38541 Quadtro, 1/4 Turn, CPVC, Hammer Arrestor, Washing Machine Outlet Box – Standard Pack

OATEY 38541 Quadtro, 1/4 Turn, CPVC, Hammer Arrestor, Washing Machine Outlet Box – Standard Pack

(No reviews yet) Write a Review

Model: 38541
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$268.57
$218.57
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Quadtro, 1/4 Turn, CPVC, Hammer Arrestor, Washing Machine Outlet Box – Standard Pack

  • Features

    • Top or Bottom Valve Mount
    • Easy to remove 1/4 turn knockout
    • Snap-on Faceplate Frame accommodates up to 1" drywall
    • 2" drain opening fits PVC or ABS Sch. 40 DWV pipe
    • Valves available in no hammer or hammer options
    • Box made of high impact polystyrene
    • 4 support brackets included for mounting


38541 - spec sheet

Manufacturer Resources

Product Specs

Box Dimensions:
8-3/4"W x 7-1/2"H x 3-5/8"D
Faceplate Dimensions:
11-3/4"W x 10-1/8"H
Volume:
0.242
Department:
Plumbing
Product Group:
Plumbing Boxes
Product Subgroup:
Appliance Outlet Boxes
Product Type:
Washer Outlet Box
Product Weight:
2.75

OATEY 38541 – Frequently Asked Questions

1) Does the Oatey 38541 washer box have water hammer arrestors built in?
Yes, the 38541 is the hammer arrestor version of the Quadtro. That matters on quarter turn valves, which close fast enough to bang the piping when a washer solenoid shuts. Oatey builds the Quadtro in both no-hammer and hammer arrestor valve configurations, and this one is the arrestor build.
2) Do I need copper or CPVC supply lines for this Oatey Quadtro box?

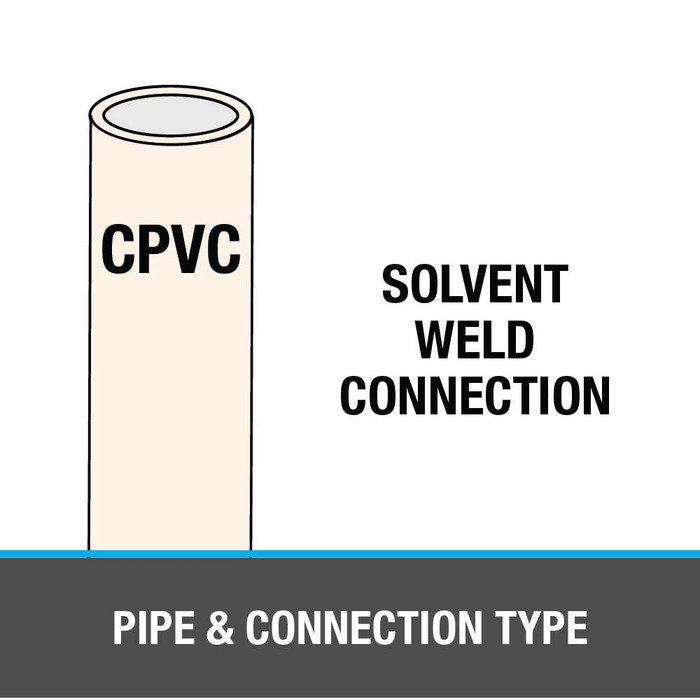

This one is the CPVC build, so the valve inlets are made to be solvent welded to CPVC supply piping. If your rough-in is copper or PEX, you want the matching Quadtro version for that material rather than adapting at the box.
3) Can the valves be mounted at the top of the box instead of the bottom?
Both. The Quadtro accepts a top or bottom valve mount, so you can orient it to whichever side your supply drops come from without ordering a different box. Handy when the hot and cold come down from an overhead run in a second-floor laundry.
4) What do I order to finish a washer rough-in besides the Oatey 38541 box?
The box ships with its four mounting brackets and the snap-on faceplate frame, so the box itself is complete. What you supply is the 2 inch Sch. 40 PVC or ABS DWV drain and trap, and the CPVC hot and cold supply runs to the valve inlets. Washer hoses are not part of the box.
5) What is the Quadtro outlet box made of, and will it hold up in rental laundry rooms?
The box is high impact polystyrene, not thin vacuum-formed plastic, and the whole unit weighs about 2.75 pounds. The 1/4 turn knockout is made to pop out easily during rough-in. For property managers standardizing laundry closets across units, the same model number gives you an identical faceplate footprint on every opening.
