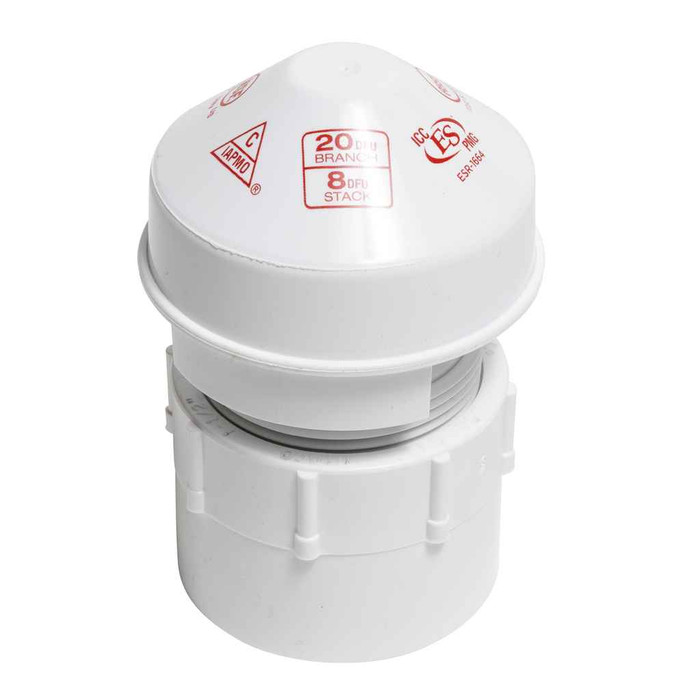

OATEY 39228 Sure-Vent® 1.5 in. 20 Branch, 8 Stack DFU Air Admittance Valve with PVC Sched. 40 Adapter

OATEY 39228 Sure-Vent® 1.5 in. 20 Branch, 8 Stack DFU Air Admittance Valve with PVC Sched. 40 Adapter

(No reviews yet) Write a Review

Model: 39228
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$87.14
$37.14
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Sure-Vent® 1.5 in. 20 Branch, 8 Stack DFU Air Admittance Valve with PVC Sched. 40 Adapter

  • Features

    • Screening on air inlets to guard the seal
    • International Plumbing Code (IPC) and Uniform Plumbing Code (UPC) approved
    • Complies to ASSE Standard 1050 and 1051
    • Vents up to 20 DFU Branch or 8 DFU Stack
    • 100% functionally tested at 1/4" H2O and 30" H2O ensuring trouble free performance
    • Sweet Spot™ technology opens valve at -0.01 psi and seals at 0 psi and above
    • For warranty product details, refer to the Oatey Limited Warranty document
    • PVC Schedule 40 Adapter
    • One size approved to handle up to 2" vent pipe
    • For use as a secondary vent
    • Protective sleeve provides grip for installation and keeps valve free from debris


39228 - spec sheet

Manufacturer Resources

Product Specs

Adapter Material:
PVC
Adapter Size:
1.5 in.
Connection Size:
1.5 in.
Dfu Rating:
20 Branch, 8 Stack
Volume:
0.01
Department:
Plumbing
Product Group:
Plumbing
Product Subgroup:
Fittings
Product Type:
Plastic Fittings
Product Finish:
White
Product Material:
PVC
Product Weight:
0.2

OATEY 39228 – Frequently Asked Questions

1) Will the Oatey 39228 Sure-Vent air admittance valve fit 2 inch vent pipe, or only 1-1/2 inch?
The 39228 ships with a 1-1/2 inch PVC Schedule 40 adapter, and the valve itself is approved to handle up to 2 inch vent pipe. So the connection you glue to is 1-1/2 inch solvent-weld PVC; if your stub-out is 2 inch, you bush it down to 1-1/2 inch to land on the adapter, and the valve is still rated for that line.
2) How many fixtures can one Oatey 39228 air admittance valve vent?
It carries a 20 DFU branch, 8 DFU stack rating. That means one valve can serve a branch line totaling up to 20 drainage fixture units, or up to 8 DFU where it is venting a stack. A typical bath group or a kitchen sink island loop sits well inside the branch number, but add up the DFU on your drawing before you commit a single valve to a multi-fixture run.
3) Can I use an air admittance valve instead of running a vent through the roof?
Not as the building's only vent. The 39228 is intended for use as a secondary vent, so the structure still needs its primary vent to atmosphere. Where it earns its place is on island sinks, remodel bathrooms, basement bars, and additions where cutting a new roof penetration is impractical. Local jurisdiction still governs, and some areas restrict AAVs regardless of the code approvals on the product.
4) Is the Oatey Sure-Vent 39228 code approved for IPC and UPC jobs?
It is approved under both the International Plumbing Code and the Uniform Plumbing Code, and it complies with ASSE Standard 1050 and 1051. Those are the two standards an inspector will look for on an AAV: 1051 covers individual and branch-type valves, 1050 covers stack-type. Having both on the same valve is what lets the 20 DFU branch and 8 DFU stack ratings apply.
5) At what pressure does the Sure-Vent valve open, and will it leak sewer gas back into the room?
Sweet Spot technology opens the valve at -0.01 psi and seals at 0 psi and above, so it only cracks when draining flow pulls a negative on the line and it is shut any time the system is at or above atmospheric. Every unit is functionally tested at 1/4 inch H2O and 30 inch H2O. Screening over the air inlets guards the seal from debris that would otherwise hold it open.
6) Do I need primer and cement to install the Oatey 39228, and does anything else come with it?
The valve comes with its PVC Schedule 40 adapter already fitted, so the only thing you add is the solvent weld to your 1-1/2 inch PVC line, primer and PVC cement bought separately. The adapter is PVC, so it takes standard PVC cement, not ABS or transition cement. A protective sleeve on the unit gives you something to grip while you set it and keeps construction debris out of the valve until the job is closed up.
7) Which Oatey Sure-Vent do I need for an island sink versus a whole branch of fixtures?
For a single island sink or a small fixture group on a 1-1/2 inch line, the 39228 with its 1-1/2 inch PVC adapter is the size to reach for. Step up to a larger Sure-Vent with a higher DFU rating when the branch you are venting exceeds 20 DFU, or when the valve is terminating a stack carrying more than 8 DFU. Sizing is driven by the fixture unit count on the line, not by the pipe diameter alone.
8) Is this AAV light enough to hang off a 1-1/2 inch stub without extra support?
The unit weighs 0.2 pounds. That is light enough that a properly cemented 1-1/2 inch PVC stub carries it without added bracing, which is part of why AAVs work in tight remodel cavities. Keep it accessible and upright above the fixture trap arm per code, and leave clearance for air to reach the inlet screening rather than burying it in insulation.
9) What color is the Oatey 39228 AAV if it ends up somewhere visible under a sink?
White, in PVC. Under an island sink cabinet or in an access panel it reads as ordinary white PVC plumbing rather than a fixture, which is usually what a property manager wants when the valve has to stay accessible and cannot be concealed.
