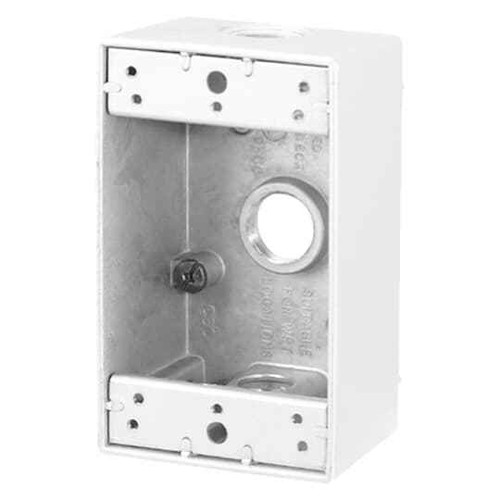

OUTDOOR RECT BOX 3X1/2 HOLE BRONZE
Manufacturer Resources
Product Specs
- Application:
- Dry-tite boxes and covers protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations
- Product Group:
- Electrical Boxes
- Product Type:
- Device Boxes, Covers & Accessories
- Product type2:
- Weatherproof boxes
- Selling Unit Of Measure:
- each
- Special Functions:
- Clean cover edges help provide good gasket sealing
- Standards:
- 18685
- Volume:
- 18.3 cu.. in
- Department:
- Electrical
- Product Subgroup:
- Outlet Boxes
- Product Color:
- Bronze
Red Dot S100BRCN – Frequently Asked Questions
1) Can the Red Dot S100BRCN weatherproof box be used outdoors in a wet location?
Yes. The S100BRCN is a Red Dot Dry-Tite rectangular outlet box, and the Dry-Tite line is built to protect wiring devices, switches, electronic components and terminal blocks in dry, damp and wet locations. It's a weatherproof box, so exterior walls, patios and other exposed installs are what it's made for. Pair it with a matching gasketed cover to keep the seal intact.
2) How many 1/2 inch conduit openings does the Red Dot S100BRCN box have?
Three 1/2 inch hubs. That gives you a feed in plus two more runs out, so you can carry a circuit through the box to the next device rather than dead-ending it. If your run only needs one or two, plug the unused openings with 1/2 inch closure plugs to keep the box weathertight.
3) How much wire volume does the Red Dot S100BRCN outdoor box give me for conductor fill?
18.3 cubic inches. That's the number you use when you run your box fill calculation for conductors, clamps, and the device itself. If you're landing a lot of conductors, splices and a receptacle in one enclosure, check the fill against 18.3 cu. in. before you commit, since a three-hub box invites multiple runs coming together.
4) Does the Red Dot S100BRCN outdoor box come with a cover?
No. The S100BRCN is the box only, sold each. You order the cover separately and choose it based on what's going in the box, a flip lid for occasional use or an in-use (bubble) cover where something stays plugged in. Red Dot designs the box with clean cover edges so the cover gasket seats properly and seals.
5) Will the bronze finish on the Red Dot S100BRCN match other exterior device boxes on the building?
The S100BRCN is finished in bronze, which is the common dark exterior color used on brick, stone and dark trim so the box disappears into the wall. If the rest of your openings are gray or white, this one will stand out, so for a property manager standardizing a fleet of exterior receptacles, spec the same bronze across all of them.
6) Is the Red Dot S100BRCN a single gang box?
Yes, it's a rectangular single device box, sized to take one wiring device such as a receptacle or switch behind a weatherproof cover. If you need two devices side by side on the same exterior wall, you want a two gang weatherproof box instead, not this one.
7) Why does gasket seating matter on a weatherproof outlet box like the Red Dot S100BRCN?
Because the box only stays dry if the cover gasket compresses evenly all the way around. The S100BRCN is machined with clean cover edges specifically so the gasket seats flat and seals. Rough or burred edges are where water tracks in, and once water gets behind a device on an exterior wall you're chasing nuisance trips instead of finishing the job.
