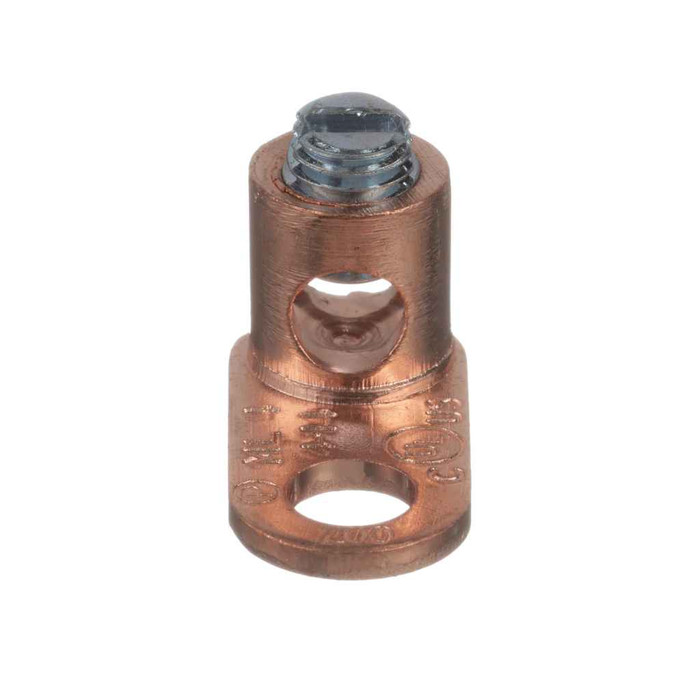

Panduit Pan-Lug™ ML4-CY Mechanical Lug, 14-4 AWG Copper Straight Tongue, 1/4" Stud
The Panduit Pan-Lug™ ML4-CY is a mechanical lug engineered for terminating bare copper conductors from 14-4 AWG using a straight tongue design with 1/4" stud compatibility. Built with single barrel construction and a bare copper finish, this cULus Listed lug is rated for 600V applications at 90°C, making it suitable for demanding electrical panel and control connections. Each package contains 100 pieces, giving contractors and panel builders a ready supply for professional installations.
Key Features
- Conductor Range: Accommodates 14-4 AWG solid and stranded copper conductors for versatile termination applications.
- Bare Copper Construction: Provides excellent conductivity and long-term corrosion resistance.
- Single Barrel Design: Delivers a secure mechanical connection with consistent contact pressure for reliable conductivity.
- Straight Tongue Configuration: Offers direct connection capability with 1/4" stud compatibility for standard mounting applications.
- 600V / 90°C Rating: Supports reliable performance in demanding electrical environments with high-temperature capability.
- Slotted Screw Type: Enables secure, straightforward conductor termination.
- 100-Piece Package: Convenient bulk packaging reduces inventory management and ensures adequate supply for larger projects.
Certifications & Compliance
- cULus Listed
- RoHS Compliant
Technical Specifications
- Product Type: Mechanical Lug
- Base Material: Copper
- Finish Coating: Bare
- Barrel Type: Single Barrel
- Tongue Type: Straight Tongue
- Screw Type: Slotted
- Minimum Copper Conductor Size (Sol): 14 AWG
- Maximum Copper Conductor Size (Sol/Str): 4 AWG
- Maximum Voltage: 600V
- UL Temperature Rating: 90°C
- CSA Temperature Rating: 90°C
- Stud Hole Size: 6.4 mm
- Tongue Thickness: 2.3 mm
- Std Package Quantity: 100 Piece
- Sub Brand: Pan-Lug™
- Country of Origin: India
Typical Applications
- Electrical Panel Connections
- Motor Control Centers
- Distribution Equipment
- Industrial Control Systems
- Commercial Electrical Installations
- Maintenance and Repair Operations
Why Panduit?
Panduit Pan-Lug™ mechanical lugs deliver proven reliability with cULus Listed certification and RoHS compliance. The 600V rating and 90°C temperature capability, combined with bare copper construction and single barrel design, ensure dependable, code-compliant performance for professional electrical installations.
Manufacturer Resources
Product Specs
- Any Reason Not to Sell:
- N
- Arra Compliant:
- Y
- Barrel Type:
- Single Barrel
- Base Material:
- Copper
- California Pro65 Cancer:
- No
- Ean:
- 74983596287
- GTIN Carton:
- 5.0075E+13
- GTIN Package:
- 74983596287
- Hazardous Material Flag:
- N
- Lead Content Indicator:
- Y
- Maximum Copper Conductor Size Awg Sol:
- 4
- Maximum Copper Conductor Size Awg Str:
- 4
- Mercury Content Indicator:
- N
- Min Order Qty:
- 1
- Minimum Copper Conductor Size Awg Sol:
- 14
- Note:
- For use with copper code conductors
- Overall Height (In.):
- 0.55
- Overall Height Mm:
- 13.9
- Overall Length (In.):
- 1.11
- Overall Length (mm):
- 28.1
- Pallet Quantity:
- 0
- Pallet Volume:
- 0
- Pallet Weight:
- 0
- Product Segment:
- IEI
- Product Type:
- Mechanical Lug
- REACH Status:
- N
- Restricted Use of Hazardous Substances:
- Y
- Rohs Compliant:
- Compliant
- Screw Type:
- Slotted
- Standard Carton Volume Ft3:
- 0.0328
- Standard Carton Weight Pounds:
- 34
- Standard Package Volume Ft3:
- 0.0033
- Standard Package Weight Pounds:
- 3.4
- Std Carton Height In:
- 3.25
- Std Carton Height MM:
- 82.55
- Std Carton Length In:
- 20.5
- Std Carton Length MM:
- 520.7
- Std Carton Width In:
- 10.5
- Std Carton Width MM:
- 266.7
- Std Ctn Qty:
- 1000
- Std Package Height In:
- 3.45
- Std Package Height MM:
- 87.63
- Std Package Length In:
- 4.75
- Std Package Length MM:
- 120.65
- Std Package Width In:
- 3.5
- Std Package Width MM:
- 88.9
- Std. Pkg. Qty.:
- 100
- Sub Brand:
- Pan-Lug™
- Tongue Angle:
- Straight
- Tongue Type:
- Straight Tongue
- Tongue Width In:
- 0.54
- Tongue Width Mm:
- 13.7
- UOM EA PK:
- PK
- Department:
- Electrical
- Product Group:
- Wire Connectors & Terminals
- Product Subgroup:
- Lugs & Terminals
- Tongue Thickness (In.):
- 0.09
- Tongue Thickness (mm):
- 2.3
- Finish/Coating:
- Bare
- Maximum Voltage (V):
- 600
- CSA Temperature Rating (°C):
- 90
- Stud Hole Size (mm):
- 6.4
- Min. Order UOM:
- Piece
- Stud Hole Size (In.):
- 1/4
- Std. Pkg. UOM:
- Piece
- UL Temperature Rating (°C):
- 90
- Application:
- Copper Code Conductor
Panduit ML4-CY – Frequently Asked Questions
1) What wire sizes will the Panduit ML4-CY lug take?
The ML4-CY accepts copper conductors from 14 AWG solid up to 4 AWG, solid or stranded. It is a copper-only lug (bare copper body) intended for copper code conductors, so do not use it to terminate aluminum.
2) Can I use the ML4-CY on a 90 degree C rated circuit at 480V?
Yes. The lug is rated to 600V maximum with a 90 degree C temperature rating under both UL and CSA, which covers 480V panel and motor control work. Size your conductor ampacity to the lowest-rated component in the termination as usual.
3) Is the Panduit ML4-CY UL Listed and RoHS compliant for a spec job?
It is cULus Listed, covering both US and Canadian requirements, and RoHS compliant. It is also flagged ARRA compliant, which matters on federally funded work. Country of origin is India.
4) Do I get 100 lugs in a pack, and can I buy just one?
Standard packaging is 100 pieces, and the full carton is 1,000. Minimum order quantity is 1 piece, so you are not forced to take a full pack for a small repair.
5) How much space does the ML4-CY take up inside a control enclosure?
It is a compact single-barrel lug measuring 1.11 inches (28.1 mm) overall length by 0.55 inches (13.9 mm) overall height, so it fits tight terminal areas in motor control centers and control panels without crowding adjacent terminations.
6) What tool do I need to land a wire in this lug?
The set screw is slotted, so a flat-blade screwdriver is all it takes. Being a mechanical lug, there is no crimp tool and no die set involved, which is why these get used for field changes and MRO work where a hydraulic crimper is not on the truck.
7) Is the ML4-CY plated or bare copper, and does that matter for corrosion?
The finish is bare, with a copper base. Bare copper conducts well and is normal for copper-to-copper terminations indoors. If you are terminating into a damp, coastal, or chemically aggressive environment, a tin-plated lug is the usual specification instead.
