Panduit D14-250-C Pan-Term D14...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$51.51
$48.53

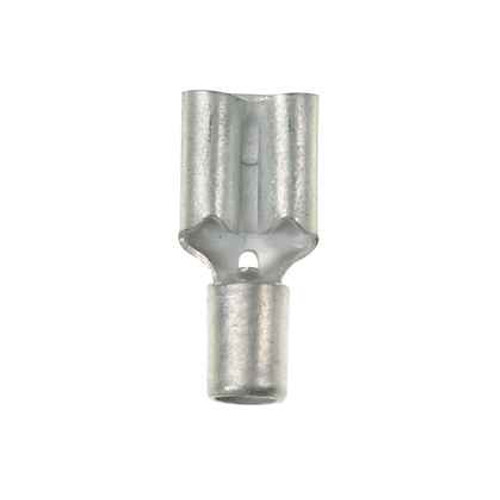

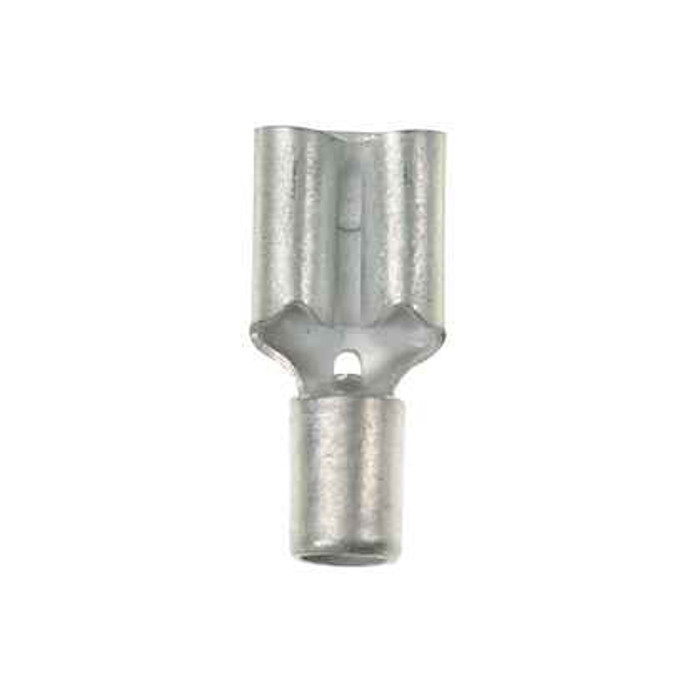

Panduit D14-250-C Pan-Term D14-250-C Loose Piece Disconnect

Panduit D14-250-C Pan-Term D14-250-C Loose Piece Disconnect

(No reviews yet) Write a Review

Model: D14-250-C
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$51.51
$48.53
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
Pan-Term D14-250-C Loose Piece Disconnect

  • Prop 65

    • No

  • Standards and Certifications

    • Standards Met: UL Recognized, UL Listed 20H3 E78522; CSA Certified LR31212

Manufacturer Resources

Product Specs

Arra Compliant:
Y
Barrel Type:
Standard
Base Material:
Brass
California Pro65 Cancer:
No
Country Of Origin:
Mexico
Disconnect Type:
Female Disconnect
Ean:
74983822027
Finish Coating:
Tin-Plated
For Use With:
CT-100, CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
Gtin Carton:
5.0075E+13
Gtin Package:
74983822027
Hazardous Material Flag:
N
Insulation Material:
Non-Insulated
Lead Content Indicator:
N
Maximum Copper Conductor Size Awg :
14
Maximum Metric Conductor Size Mm :
2.5
Maximum Operating Temperature C :
150
Maximum Operating Temperature F :
302
Maximum Voltage Kv :
2
Maximum Voltage V :
2000
Maximum Wire Size Awg :
14
Mercury Content Indicator:
N
Min Order Qty:
100
Minimum Copper Conductor Size Awg :
16
Minimum Metric Conductor Size Mm :
1.5
Minimum Wire Size Awg :
16
Overall Length In :
0.66
Overall Length Mm :
16.8
Overall Thickness In :
0.16
Overall Thickness Mm :
0.4
Overall Width In :
0.3
Overall Width Mm :
7.6
Packaging Type:
Bottle
Pallet Quantity:
0
Pallet Volume:
0
Pallet Weight:
0
Product Segment:
IEI
Product Type:
Disconnect
Reach Status:
N
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
0.0214
Standard Carton Weight Pounds:
1.45
Standard Package Volume Ft3:
0.0043
Standard Package Weight Pounds:
0.29
Std Carton Height In:
3.7
Std Carton Height Mm:
93.98
Std Carton Length In:
9.45
Std Carton Length Mm:
240.03
Std Carton Width In:
2.85
Std Carton Width Mm:
72.39
Std Ctn Qty:
500
Std Package Height In:
1.8
Std Package Height Mm:
45.72
Std Package Length In:
3.6
Std Package Length Mm:
91.44
Std Package Width In:
1.8
Std Package Width Mm:
45.72
Std Pkg Qty :
100
Std Pkg Uom:
Piece
Tab Size In :
0.250 x 0.032
Tab Size Mm :
6.3 x 0.8
Tongue Angle:
Straight
Wire Strip Length In :
Sep-32
Wire Strip Length Mm :
7.1
