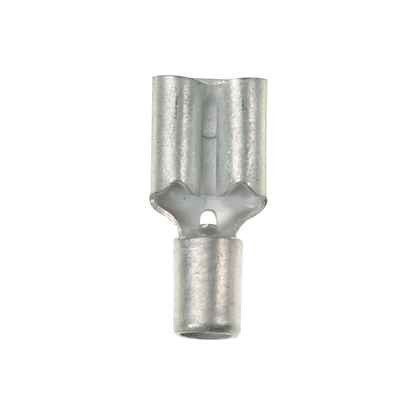

Panduit D10-250-L Pan-Term D10-250-L Loose Piece Disconnect

Panduit D10-250-L Female Disconnect Terminal, 10-12 AWG Tin-Plated Brass

(No reviews yet) Write a Review

Model: D10-250-L

In Stock (leaves warehouse same day if ordered before 3pm ET)

$118.44
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit D10-250-L Female Disconnect Terminal, 10-12 AWG Tin-Plated Brass

The Panduit D10-250-L Female Disconnect Terminal delivers a dependable, non-insulated wire termination solution for 10-12 AWG copper conductors. Machined from tin-plated brass for superior conductivity and corrosion resistance, this disconnect terminal is rated for continuous operation up to 302°F (150°C) and voltage up to 2000V, with a standard 0.250 x 0.032 inch tab size for secure mating with industry-standard male terminals. Backed by UL Listed and CSA Certified approvals, it is engineered for demanding industrial, commercial, and OEM electrical applications.

Key Features

  • Wire Range: Accommodates 10-12 AWG copper conductors for versatile installation flexibility.
  • Tin-Plated Brass Construction: Provides superior electrical conductivity and corrosion resistance for long-term reliability.
  • High-Temperature Rating: Operates safely at temperatures up to 302°F (150°C) for elevated-temperature environments.
  • 2000V Voltage Rating: Handles high-voltage applications up to 2kV for industrial and commercial electrical systems.
  • Standard Tab Size: 0.250 x 0.032 inch tab dimensions ensure compatibility with industry-standard male terminals and connectors.
  • Non-Insulated Design: Allows for custom insulation solutions and compact installations where space is critical.
  • Straight Tongue Angle: Standard barrel type simplifies alignment and crimping in tight enclosures.

Certifications & Compliance

  • UL Listed 20H3 E78522
  • CSA Certified LR31212
  • RoHS Compliant

Technical Specifications

  • Base Material: Brass
  • Disconnect Type: Female Disconnect
  • Finish Coating: Tin-Plated
  • Insulation Material: Non-Insulated
  • Barrel Type: Standard
  • Tongue Angle: Straight
  • Maximum Copper Conductor Size Awg : 10
  • Minimum Copper Conductor Size Awg : 12
  • Maximum Operating Temperature F : 302
  • Maximum Operating Temperature C : 150
  • Maximum Voltage V : 2000
  • Maximum Voltage Kv : 2
  • Tab Size In : 0.250 x 0.032
  • Overall Length In : 0.72
  • Overall Width In : 0.3
  • Country Of Origin: Mexico
  • Min Order Qty: 50
  • Std Pkg Qty : 50
  • Std Ctn Qty: 500

Typical Applications

  • Industrial Control Panels and Electrical Enclosures
  • Commercial Building Electrical Systems
  • Manufacturing Equipment Wire Harnesses
  • HVAC Control and Power Distribution Systems
  • Telecommunications Infrastructure
  • Automotive and Transportation Wiring

Why Panduit?

Panduit Pan-Term disconnect terminals deliver proven reliability with UL Listed and CSA Certified approvals, ensuring compliance with rigorous safety standards for professional electrical work. The tin-plated brass construction and 302°F (150°C) temperature rating provide long-term durability in demanding applications, while RoHS compliance supports environmentally responsible installations.

Manufacturer Resources

Product Specs

Arra Compliant:
Y
Barrel Type:
Standard
Base Material:
Brass
California Pro65 Cancer:
No
Country Of Origin:
Mexico
Disconnect Type:
Female Disconnect
Ean:
74983822041
Finish Coating:
Tin-Plated
For Use With:
CT-1570, CT-2300/ST (CD-570), CT-2500/L (CT-2570CH), UP14ZLW (CD-570)
Gtin Carton:
5.0075E+13
Gtin Package:
74983822041
Hazardous Material Flag:
N
Insulation Material:
Non-Insulated
Lead Content Indicator:
N
Maximum Copper Conductor Size Awg :
10
Maximum Metric Conductor Size Mm :
6
Maximum Operating Temperature C :
150
Maximum Operating Temperature F :
302
Maximum Voltage Kv :
2
Maximum Voltage V :
2000
Maximum Wire Size Awg :
10
Mercury Content Indicator:
N
Min Order Qty:
50
Minimum Copper Conductor Size Awg :
12
Minimum Metric Conductor Size Mm :
4
Minimum Wire Size Awg :
12
Overall Length In :
0.72
Overall Length Mm :
18.3
Overall Thickness In :
0.18
Overall Thickness Mm :
0.4
Overall Width In :
0.3
Overall Width Mm :
7.6
Packaging Type:
Bottle
Pallet Quantity:
0
Pallet Volume:
0
Pallet Weight:
0
Product Segment:
IEI
Product Type:
Disconnect
Reach Status:
N
Rohs Compliant:
Compliant
Standard Carton Volume Ft3:
0.0398
Standard Carton Weight Pounds:
1.95
Standard Package Volume Ft3:
0.004
Standard Package Weight Pounds:
0.195
Std Carton Height In:
3.65
Std Carton Height Mm:
92.71
Std Carton Length In:
9.4
Std Carton Length Mm:
238.76
Std Carton Width In:
3.85
Std Carton Width Mm:
97.79
Std Ctn Qty:
500
Std Package Height In:
1.75
Std Package Height Mm:
44.45
Std Package Length In:
3.6
Std Package Length Mm:
91.44
Std Package Width In:
1.8
Std Package Width Mm:
45.72
Std Pkg Qty :
50
Std Pkg Uom:
Piece
Tab Size In :
0.250 x 0.032
Tab Size Mm :
6.3 x 0.8
Tongue Angle:
Straight
Wire Strip Length In :
Sep-32
Wire Strip Length Mm :
7.1
Department:
Electrical
Product Group:
Wiring Devices

Panduit D10-250-L – Frequently Asked Questions

1) What wire size does the Panduit D10-250-L disconnect accept?
It terminates 10 to 12 AWG copper conductors, which is 4 to 6 mm2 in metric terms. Anything smaller than 12 AWG will not crimp reliably in this barrel, so step down to a disconnect sized for 14-16 AWG for those conductors.
2) Which crimp tools work with the Panduit D10-250-L?
Panduit lists the CT-1570, CT-2300/ST (CD-570 die), CT-2500/L (CT-2570CH) and UP14ZLW (CD-570) for this terminal. Using the matched die matters here because the terminal is non-insulated brass and a generic insulated-terminal nest will deform the barrel.
3) Is the Panduit D10-250-L UL Listed and RoHS compliant for a spec job?
Yes, it carries UL Listing 20H3 E78522 and CSA Certification LR31212, and it is RoHS compliant. It is also flagged ARRA compliant and contains no lead or mercury, which covers the usual procurement questions on government and institutional work. Country of origin is Mexico.
4) How far do I strip the wire before crimping this Panduit disconnect?
Strip length is 7.1 mm of bare copper. Strip that, seat the conductor fully in the barrel, then crimp with a tool rated for non-insulated terminals.
5) Is this disconnect insulated, and does that matter in a control panel?
It is a non-insulated tin-plated brass terminal, so the crimped barrel and tab shoulder are exposed metal. In a crowded enclosure that means you add your own sleeving or a nylon fully-insulated housing over it. Upside is a smaller footprint where spacing is tight, and you can pick the insulation to suit the temperature in the panel.
6) Can this Panduit disconnect handle high-temperature equipment wiring?
Rated for continuous operation to 302 F (150 C), which covers HVAC plenum and motor-compartment terminations as well as heat-producing industrial equipment. Voltage rating is 2000 V, so control and power circuits in a panel are both within range.
7) How many Panduit D10-250-L terminals come in a package?
They ship 50 pieces to a bottle, and 50 is also the minimum order. Full carton is 500 pieces, made up of ten of those 50-count packages.
8) I need the male half to go with this 1/4 inch female disconnect. What pairs with it?
The D10-250-L is the female side. For the mating male tab terminal, the ABB 250 Series fully insulated male disconnect (TNF14-250MD-XV) is a nylon-insulated 250 Series part on the same quarter-inch tab standard. Note that one is insulated and sized for smaller wire than the 10-12 AWG this Panduit takes, so match the male terminal to the conductor on its own side of the joint.
9) I need an insulated disconnect instead of a bare one - what are my options?
The Panduit D10-250-L is non-insulated, which is the right choice when you are adding your own heat shrink or working in a tight enclosure where a nylon sleeve will not fit. If you want the insulation built in, the ABB TNF14-250MD-XV is a fully insulated nylon 250 Series disconnect - note that it is the male half, so it suits the tab side of the connection rather than the receptacle side the Panduit covers.
