Panduit EDV14-250B-Q StrongHold, EDV14-250B-Q Loose Piece Disconnect Terminal

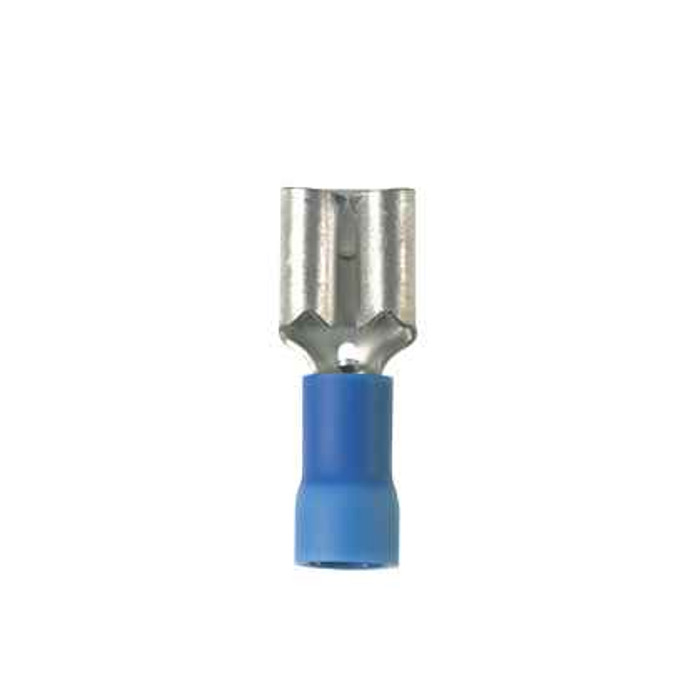

Panduit StrongHold Female Disconnect Terminal 14-16 AWG Tin-Plated Brass with Vinyl Insulation

(No reviews yet) Write a Review

Model: EDV14-250B-Q
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.57
$21.06
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit StrongHold Female Disconnect Terminal 14-16 AWG Tin-Plated Brass with Vinyl Insulation

Professional Electrical Connection Solution for Reliable Performance

The Panduit StrongHold Female Disconnect Terminal delivers dependable electrical connections for 14-16 AWG wire applications. Featuring tin-plated brass construction with vinyl barrel insulation, this disconnect terminal provides reliable performance rated for 600V maximum voltage and operating temperatures up to 105�C (221�F). The blue color-coded design ensures easy identification while the butted seam construction delivers consistent connectivity.

Professional Features & Benefits

  • 14-16 AWG Wire Range: Accommodates standard copper conductors from 16 AWG minimum to 14 AWG maximum for versatile wiring applications
  • 600V Maximum Voltage Rating: Provides reliable electrical performance for demanding commercial and industrial applications
  • Tin-Plated Brass Construction: Delivers superior conductivity and corrosion resistance for long-term reliability
  • Vinyl Barrel Insulation: Offers excellent electrical insulation and protection against environmental factors
  • 105�C Operating Temperature: Maintains performance integrity in high-temperature environments up to 221�F
  • UL Recognized & CSA Listed: Meets rigorous safety standards including cULus, E78522, and LR31212 certifications
  • Blue Color Coding: Enables quick visual identification and proper circuit organization

Technical Specifications

  • Base Material: Brass
  • Color Code: Blue
  • Country Of Origin: Mexico
  • Disconnect Type: Female Disconnect
  • Ean: 6.13056E+11
  • Finish Coating: Tin-Plated
  • For Use With: KST2000C
  • Gtin Carton: 5.06131E+13
  • Gtin Package: 6.13056E+11
  • Hazardous Material Flag: N
  • Insulation Material: Vinyl - Barrel Insulated
  • Insulation Type: Barrel Insulated
  • Maximum Copper Conductor Size Awg: 14
  • Maximum Metric Conductor Size Mm: 2.5
  • Maximum Operating Temperature C: 105
  • Maximum Operating Temperature F: 221
  • Maximum Voltage Kv: 0.6
  • Maximum Voltage V: 600
  • Maximum Wire Insulation Diameter In: 0.17
  • Maximum Wire Insulation Diameter Mm: 4.3
  • Maximum Wire Size Awg: 14
  • Mercury Content Indicator: N
  • Min Order Qty: 250
  • Minimum Copper Conductor Size Awg: 16
  • Minimum Metric Conductor Size Mm: 1.5
  • Minimum Wire Size Awg: 16
  • Overall Length In: 0.81
  • Overall Length Mm: 20.6
  • Overall Thickness In: 0.16
  • Overall Thickness Mm: 0.4
  • Overall Width In: 0.29
  • Overall Width Mm: 7.4
  • Packaging Type: Loose Piece
  • Pallet Quantity: 0
  • Pallet Volume: 0
  • Pallet Weight: 0
  • Product Segment: IEI
  • Product Type: Disconnect
  • Reach Status: N
  • Rohs Compliant: Compliant
  • Seam Type: Butted
  • Standard Carton Volume Ft3: 0.1031
  • Standard Carton Weight Pounds: 0.5
  • Standard Package Volume Ft3: 0.0103
  • Standard Package Weight Pounds: 0.05
  • Std Carton Height In: 4.4
  • Std Carton Height Mm: 111.76
  • Std Carton Length In: 9.15
  • Std Carton Length Mm: 232.41
  • Std Carton Width In: 4.3
  • Std Carton Width Mm: 109.22
  • Std Ctn Qty: 250
  • Std Package Height In: 0.7
  • Std Package Height Mm: 17.78
  • Std Package Length In: 4.55
  • Std Package Length Mm: 115.57
  • Std Package Width In: 2.5
  • Std Package Width Mm: 63.5
  • Std Pkg Qty: 25
  • Std Pkg Uom: Piece
  • Tab Size In: 0.250 x 0.032
  • Tab Size Mm: 6.3
  • Wire Strip Length In: 4-Jan
  • Wire Strip Length Mm: 6.3

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Commercial Electrical Systems
  • Industrial Control Panels
  • Electrical Distribution Equipment
  • Motor Control Centers
  • Instrumentation Wiring
  • Control Circuit Applications
  • Professional Electrical Installations

Why Choose Panduit Quality?

Panduit StrongHold disconnect terminals deliver proven reliability with UL Recognition, CSA listing, and RoHS compliance. The tin-plated brass construction and vinyl insulation provide long-term durability in demanding electrical environments, while comprehensive certifications ensure code compliance and professional installation confidence.

Manufacturer Resources

Product Specs

Base Material:
Brass
Color Code:
Blue
Country Of Origin:
Mexico
Disconnect Type:
Female Disconnect
Ean:
6.13056E+11
Finish Coating:
Tin-Plated
For Use With:
KST2000C
Gtin Carton:
5.06131E+13
Gtin Package:
6.13056E+11
Hazardous Material Flag:
N
Insulation Material:
Vinyl - Barrel Insulated
Insulation Type:
Barrel Insulated
Maximum Copper Conductor Size Awg :
14
Maximum Metric Conductor Size Mm :
2.5
Maximum Operating Temperature C :
105
Maximum Operating Temperature F :
221
Maximum Voltage Kv :
0.6
Maximum Voltage V :
600
Maximum Wire Insulation Diameter In :
0.17
Maximum Wire Insulation Diameter Mm :
4.3
Maximum Wire Size Awg :
14
Mercury Content Indicator:
N
Min Order Qty:
250
Minimum Copper Conductor Size Awg :
16
Minimum Metric Conductor Size Mm :
1.5
Minimum Wire Size Awg :
16
Overall Length In :
0.81
Overall Length Mm :
20.6
Overall Thickness In :
0.16
Overall Thickness Mm :
0.4
Overall Width In :
0.29
Overall Width Mm :
7.4
Packaging Type:
Loose Piece
Pallet Quantity:
0
Pallet Volume:
0
Pallet Weight:
0
Product Segment:
IEI
Product Type:
Disconnect
Reach Status:
N
Rohs Compliant:
Compliant
Seam Type:
Butted
Standard Carton Volume Ft3:
0.1031
Standard Carton Weight Pounds:
0.5
Standard Package Volume Ft3:
0.0103
Standard Package Weight Pounds:
0.05
Std Carton Height In:
4.4
Std Carton Height Mm:
111.76
Std Carton Length In:
9.15
Std Carton Length Mm:
232.41
Std Carton Width In:
4.3
Std Carton Width Mm:
109.22
Std Ctn Qty:
250
Std Package Height In:
0.7
Std Package Height Mm:
17.78
Std Package Length In:
4.55
Std Package Length Mm:
115.57
Std Package Width In:
2.5
Std Package Width Mm:
63.5
Std Pkg Qty :
25
Std Pkg Uom:
Piece
Tab Size In :
0.250 x 0.032
Tab Size Mm :
6.3
Wire Strip Length In :
4-Jan
Wire Strip Length Mm :
6.3
