Panduit EDV18-250B-Q StrongHold, EDV18-250B-Q Loose Piece Disconnect Terminal

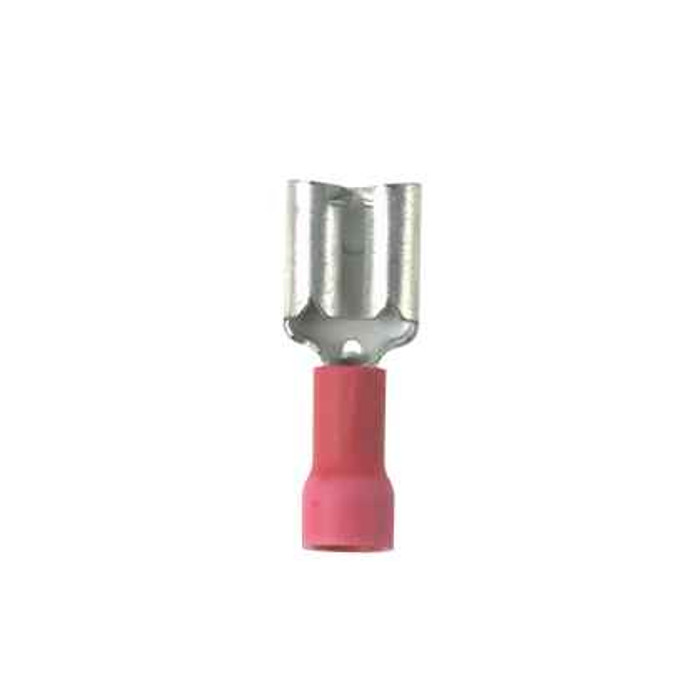

Panduit StrongHold Female Disconnect Terminal 18-22 AWG Tin-Plated Brass with Vinyl Insulation

(No reviews yet) Write a Review

Model: EDV18-250B-Q
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$50.50
$16.91
Adding to cart… The item has been added
Free Shipping on orders over $99
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit StrongHold Female Disconnect Terminal 18-22 AWG Tin-Plated Brass with Vinyl Insulation

Professional electrical connection solution for reliable wire termination

The Panduit StrongHold Female Disconnect Terminal delivers dependable electrical connections for 18-22 AWG wire applications. Featuring tin-plated brass construction with vinyl barrel insulation, this disconnect terminal provides secure termination with 600V maximum voltage rating and 105�C operating temperature capability. The red color coding ensures easy identification in electrical installations.

Professional Features & Benefits

  • 18-22 AWG Wire Range: Accommodates common wire sizes for versatile installation applications
  • Tin-Plated Brass Construction: Provides excellent conductivity and corrosion resistance for long-term reliability
  • 600V Maximum Voltage Rating: Suitable for standard electrical system voltages with safety margin
  • 105�C Operating Temperature: Maintains performance in demanding thermal environments
  • Vinyl Barrel Insulation: Offers electrical isolation and protection against environmental factors
  • cULus Listed (E78522): Meets recognized safety standards for professional electrical installations
  • Red Color Coding: Enables quick visual identification and circuit organization

Technical Specifications

  • Base Material: Brass
  • Color Code: Red
  • Country Of Origin: Mexico
  • Disconnect Type: Female Disconnect
  • Ean: 6.13056E+11
  • Finish Coating: Tin-Plated
  • For Use With: CT-1525, CT-2300/ST, CT-2500/L
  • Gtin Carton: 5.06131E+13
  • Gtin Package: 6.13056E+11
  • Hazardous Material Flag: N
  • Insulation Material: Vinyl - Barrel Insulated
  • Insulation Type: Barrel Insulated
  • Maximum Copper Conductor Size Awg : 18
  • Maximum Metric Conductor Size Mm : 1
  • Maximum Operating Temperature C : 105
  • Maximum Operating Temperature F : 221
  • Maximum Voltage Kv : 0.6
  • Maximum Voltage V : 600
  • Maximum Wire Insulation Diameter In : 0.15
  • Maximum Wire Insulation Diameter Mm : 3.8
  • Maximum Wire Size Awg : 18
  • Mercury Content Indicator: N
  • Min Order Qty: 250
  • Minimum Copper Conductor Size Awg : 22
  • Minimum Metric Conductor Size Mm : 0.5
  • Minimum Wire Size Awg : 22
  • Overall Length In : 0.81
  • Overall Length Mm : 20.6
  • Overall Thickness In : 0.16
  • Overall Thickness Mm : 0.4
  • Overall Width In : 0.29
  • Overall Width Mm : 7.4
  • Packaging Type: Loose Piece
  • Pallet Quantity: 0
  • Pallet Volume: 0
  • Pallet Weight: 0
  • Product Segment: IEI
  • Product Type: Disconnect
  • Reach Status: N
  • Rohs Compliant: Compliant
  • Seam Type: Butted
  • Standard Carton Volume Ft3: 0.1031
  • Standard Carton Weight Pounds: 0.5
  • Standard Package Volume Ft3: 0.0103
  • Standard Package Weight Pounds: 0.05
  • Std Carton Height In: 4.45
  • Std Carton Height Mm: 113.03
  • Std Carton Length In: 9.1
  • Std Carton Length Mm: 231.14
  • Std Carton Width In: 4.35
  • Std Carton Width Mm: 110.49
  • Std Ctn Qty: 250
  • Std Package Height In: 0.75
  • Std Package Height Mm: 19.05
  • Std Package Length In: 4.55
  • Std Package Length Mm: 115.57
  • Std Package Width In: 2.9
  • Std Package Width Mm: 73.66
  • Std Pkg Qty : 25
  • Std Pkg Uom: Piece
  • Tab Size In : 0.250 x 0.032
  • Tab Size Mm : 6.3
  • Wire Strip Length In : 4-Jan
  • Wire Strip Length Mm : 6.3

Installation & Operation

  1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
  2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
  3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
  4. Configure any available load management or control features as supported by the provided specifications.
  5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
  6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

  • Electrical panel connections and wire termination
  • Control circuit applications
  • Industrial equipment wiring
  • Commercial electrical installations
  • Maintenance and repair operations
  • OEM equipment manufacturing

Why Choose Panduit Quality?

Panduit StrongHold terminals deliver proven reliability with cULus listing and RoHS compliance. The tin-plated brass construction and vinyl insulation provide long-term durability in professional electrical applications, backed by Panduit's commitment to quality electrical connection solutions.
