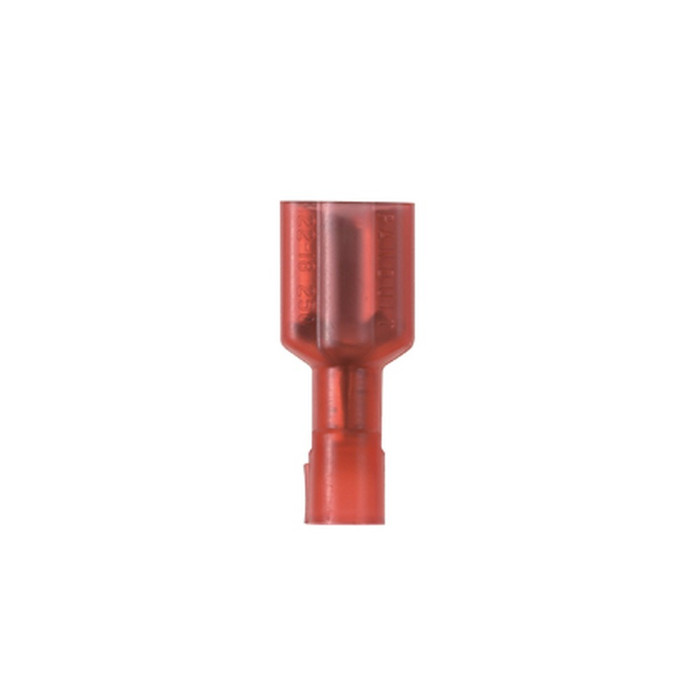

Panduit Pan-Term DNF1 Series Brass Female Disconnect, Tin-Plated

Panduit Pan-Term DNF1 Series Brass Female Disconnect, Tin-Plated

(No reviews yet) Write a Review

Model: DNF18-205FIB-M

In Stock (leaves warehouse same day if ordered before 3pm ET)

$461.29
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Term DNF1 Series Brass Female Disconnect, Tin-Plated

The Panduit Pan-Term® DNF1 Series is a vibration-resistant female disconnect built from brass with a tin-plated finish and fully insulated in a blue nylon housing. It features a tab size of 0.187 x 0.032" (4.8 x 0.8 mm) and supports a wire range of 16-14 AWG (1.5-2.5 mm²), making it a reliable choice for terminal and wire harness connections. The disconnect is UL 310 Listed and CSA Certified, giving electrical professionals confidence in code-compliant performance.

Key Features

  • Wire Range: 16-14 AWG (1.5-2.5 mm²) accommodates common branch-circuit and control wiring.
  • Durable Construction: Brass base material with a tin-plated finish for reliable conductivity and corrosion resistance.
  • Fully Insulated Housing: Blue nylon insulation provides vibration resistance and touch-safe coverage over the connection point.
  • Tab Size: 0.187 x 0.032" (4.8 x 0.8 mm) tab for secure, repeatable mating connections.
  • Funnel Entry Barrel: Funnel entry barrel configuration simplifies wire insertion and alignment.
  • Butted Seam Barrel: Butted seam barrel construction supports consistent, dependable crimp quality.
  • Compact Dimensions: 0.78" (19.8 mm) long by 0.29" (7.4 mm) wide for use in tight terminal blocks and panels.

Certifications & Compliance

  • UL 310 Listed
  • UL Listed 20H3 E78522
  • CSA Certified LR31212, C22.2 No.153
  • RoHS Compliant

Technical Specifications

  • Mercury Content Indicator: N
  • Lead Content Indicator: Y
  • Product Segment: IEI
  • UOM EA PK: PK
  • Any Reason Not to Sell: N
  • REACH Status: N
  • California Pro65 Cancer: No
  • Std Ctn Qty: 0
  • ARRA Compliant: Y
  • Packaging Type: Box
  • Hazardous Material Flag: N
  • Wire Strip Length (mm): 7.1
  • Restricted Use of Hazardous Substances: N
  • Overall Height (mm): 5.6
  • Country of Origin: MEX

Typical Applications

  • Terminal Block and Panel Wiring Connections
  • Wire Harness and Cable Assembly Terminations
  • Industrial and Commercial Electrical Assemblies
  • OEM Equipment Wire Termination
  • Control Panel and Switchgear Wiring

Why Panduit?

Panduit's Pan-Term® disconnects are engineered with brass construction, tin-plated contacts, and fully insulated nylon housings to deliver dependable, vibration-resistant connections. Backed by UL 310 Listing and CSA Certification, this DNF1 Series female disconnect is built for consistent, code-compliant performance in demanding electrical and industrial wiring applications.

Manufacturer Resources

Product Specs

Std. Pkg. UOM:
Piece
Standard Carton Volume Ft3:
0.0000
Mercury Content Indicator:
N
Lead Content Indicator:
Y
Sub Brand:
Pan-Term®
Wire Strip Length (In.):
9/32
Product Segment:
IEI
Standard Carton Weight Pounds:
0.0000
Overall Height (In.):
0.22
Min Order Qty:
1,000.0000
Disconnect Type:
Female Disconnect
UOM EA PK:
PK
Pallet Volume:
0.000000
Any Reason Not to Sell:
N
Barrel Type:
Funnel Entry
Tongue Angle:
Straight
REACH Status:
N
Base Material:
Brass
California Pro65 Cancer:
No
Finish/Coating:
Tin-Plated
Std Ctn Qty:
0
Seam Type:
Butted
Product Type:
Disconnect
Flammability Rating:
UL94-HB
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Std. Pkg. Qty.:
1000
Packaging Type:
Box
Hazardous Material Flag:
N
Insulation Material:
Nylon
Wire Strip Length (mm):
7.1
Restricted Use of Hazardous Substances:
N
Overall Height (mm):
5.6
Country of Origin:
MEX
Department:
Electrical
Product Group:
Wiring Devices
