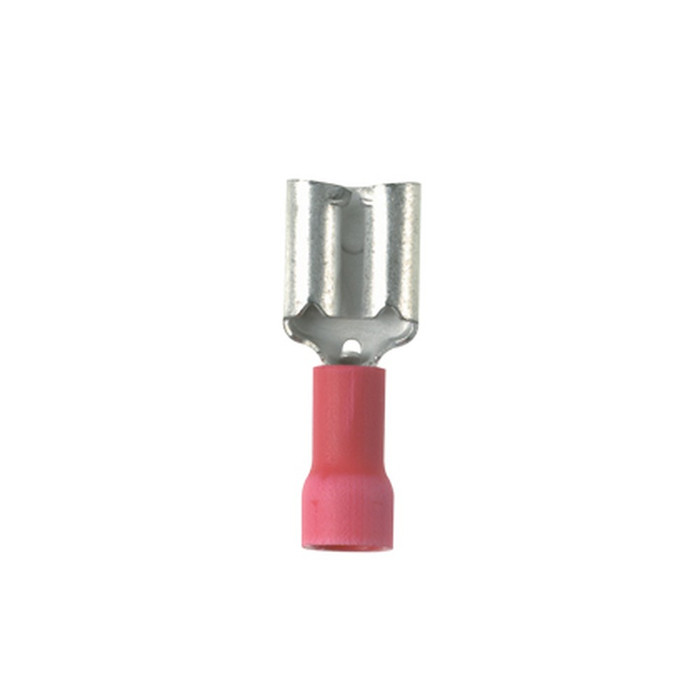

Panduit Pan-Term DV18250 Series Loose Piece Female Disconnect Terminal, Brass

Panduit Pan-Term DV18250 Series Loose Piece Female Disconnect Terminal, Brass

(No reviews yet) Write a Review

Model: DV18-250B-CY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$87.71
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Term® DV18250 Series Loose Piece Female Disconnect Terminal, Brass

The Panduit Pan-Term® DV18250 Series is a vibration-resistant loose piece female disconnect terminal built from brass with a tin-plated finish for reliable, corrosion-resistant electrical connections. Insulated with a red vinyl barrel housing, this disconnect features a 0.250 x 0.032" (6.3 x 0.8 mm) tab size and supports a wire range of 22-18 AWG (0.5-1.0 mm²). Rated to 600V and UL 310 Listed, it is engineered for demanding industrial and commercial wire termination applications where secure, code-compliant connections are essential.

Key Features

  • Wire Range: Accommodates 22-18 AWG (0.5-1.0 mm²) conductors for small-gauge terminations.
  • Durable Construction: Brass body with a tin-plated finish provides vibration resistance and corrosion protection.
  • Tab Size: 0.250 x 0.032" (6.3 x 0.8 mm) female disconnect tab for a secure mating connection.
  • Insulation: Red vinyl barrel insulation with an insulation diameter of 0.15", color-coded for the 22-18 AWG wire range.
  • Barrel Configuration: Funnel entry barrel with a butted seam for easy wire insertion and a consistent crimp.
  • Voltage Rating: Rated up to 600V (0.6 kV) for a broad range of electrical applications.
  • Compact Dimensions: Measures 0.81" (20.6 mm) long and 0.29" (7.4 mm) wide, with a wire strip length of 9/32".

Certifications & Compliance

  • UL 310 Listed, UL Listed 20H3 E78522
  • CSA Certified LR31212, C22.2 No.153
  • RoHS Compliant
  • Flammability Rating: UL94V-0

Technical Specifications

  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Color Code: Red
  • Mercury Content Indicator: N
  • Lead Content Indicator: Y
  • Product Segment: IEI
  • Minimum Metric Conductor Size (mm²): 0.5
  • Maximum Metric Conductor Size (mm²): 1
  • Overall Thickness (mm): 0.4
  • Overall Thickness (In.): 0.16
  • Insulation Diameter (mm): 3.8
  • Wire Strip Length (mm): 7.1
  • UOM EA PK: PK
  • Std Ctn Qty: 500
  • Std. Pkg. Qty.: 100
  • Pallet Quantity: 0
  • Any Reason Not to Sell: N
  • REACH Status: N
  • California Pro65 Cancer: No
  • Country of Origin: MEX
  • ARRA Compliant: Y
  • Hazardous Material Flag: N
  • Restricted Use of Hazardous Substances: N

Typical Applications

  • Electrical Panel and Control Wiring
  • Industrial Equipment Wire Termination
  • OEM Wire Harness Assembly
  • Low-Voltage Circuit Connections
  • Commercial and Industrial Electrical Installations

Why Panduit?

Panduit's Pan-Term® DV18250 Series disconnect terminals combine vibration-resistant brass construction with a tin-plated finish and red vinyl insulation for dependable, long-lasting connections. Backed by UL 310 Listing, UL Listed E78522, and CSA Certification, these terminals deliver the code-compliant performance professionals need for demanding electrical and industrial wiring projects.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0064
Maximum Operating Temperature (°F):
221
Std. Pkg. UOM:
Piece
Maximum Voltage (V):
600
Standard Carton Volume Ft3:
0.0319
Color Code:
Red
Mercury Content Indicator:
N
Lead Content Indicator:
Y
Sub Brand:
Pan-Term®
Wire Strip Length (In.):
9/32
Product Segment:
IEI
Minimum Metric Conductor Size (mm²):
0.5
Overall Height (In.):
0.12
Min Order Qty:
100.0000
Product Size:
22-18 AWG
Overall Thickness (mm):
0.4
Maximum Metric Conductor Size (mm²):
1
UOM EA PK:
PK
Pallet Volume:
0.000000
Any Reason Not to Sell:
N
Barrel Type:
Funnel Entry
Copper Conductor Size:
22-18 AWG
Tongue Angle:
Straight
Tab Size (In.):
0.250 x 0.032
Insulation Diameter (In.):
0.15
REACH Status:
N
California Pro65 Cancer:
No
Maximum Voltage (kV):
0.6
Country of Origin:
MEX
Std Ctn Qty:
500
Seam Type:
Butted
Product Type:
Disconnect
Pallet Quantity:
0
Flammability Rating:
UL94V-0
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
Tab Size (mm):
6.3 x 0.8
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
105
Std. Pkg. Qty.:
100
Insulation Diameter (mm):
3.8
Insulation Type:
Barrel Insulated
Packaging Type:
Bottle
Hazardous Material Flag:
N
Insulation Material:
Vinyl
Wire Strip Length (mm):
7.1
Restricted Use of Hazardous Substances:
N
Pallet Weight:
0.0000
Overall Thickness (In.):
0.16
Department:
Electrical
Product Group:
Wiring Devices
