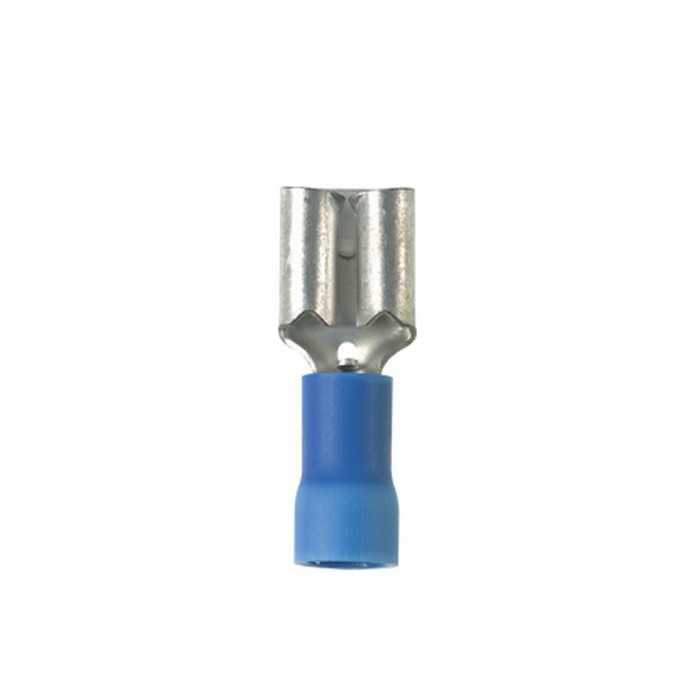

Panduit Pan-Term® DV14 Series Loose Piece Female Disconnect, Brass

Panduit Pan-Term® DV14 Series Loose Piece Female Disconnect, Brass

(No reviews yet) Write a Review

Model: DV14-188B-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$90.46
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Pan-Term® DV14 Series Loose Piece Female Disconnect, Brass

The Panduit Pan-Term® DV14 Series loose piece female disconnect is a vibration-resistant terminal made of brass and tin-plated for reliable, corrosion-resistant connections. Rated for a maximum voltage of 600V (0.6kV), it supports a wire range of 16-14 AWG (1.5-2.5 mm²) and features a funnel entry barrel with a butted seam for easy wire insertion. Barrel insulated in blue vinyl housing, it is UL Listed and CSA Certified for demanding commercial and industrial wiring applications.

Key Features

  • Tab Size: 0.187 x 0.02" (4.8 x 0.5 mm) for a secure, vibration-resistant mating connection.
  • Durable Construction: Brass base material with a tin-plated finish for enhanced conductivity and corrosion resistance.
  • Barrel Insulated: Blue vinyl housing color-codes the disconnect for the 16-14 AWG (1.5-2.5 mm²) wire range.
  • Funnel Entry Barrel: Simplifies wire insertion during assembly and field installation.
  • Butted Seam Barrel: Consistent crimp performance for dependable terminations.
  • Straight Tongue Angle: Standard configuration measuring 0.79" (20.1 mm) long and 0.23" (5.8 mm) wide.
  • Voltage Rating: Rated up to 600V (0.6kV) maximum for demanding electrical circuits.
  • Temperature Rated: Maximum operating temperature of 221°F (105°C) with a UL94V-0 flammability rating.

Certifications & Compliance

  • UL 310 Listed, UL Listed 20H3 E78522
  • CSA Certified LR31212, C22.2 No.153
  • RoHS Compliant

Technical Specifications

  • Maximum Voltage (V): 600
  • Maximum Voltage (kV): 0.6
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Minimum Metric Conductor Size (mm²): 1.5
  • Maximum Metric Conductor Size (mm²): 2.5
  • Country of Origin: MEX
  • Std Ctn Qty: 500
  • Std. Pkg. Qty.: 100
  • ARRA Compliant: Y

Typical Applications

  • Commercial and Industrial Electrical Installations
  • Panelboard and Control Wiring
  • Terminal Block and Wire Harness Connections
  • OEM and Electrical Panel Assembly
  • Renovation and New Construction Wiring

Why Panduit?

Panduit's Pan-Term® DV14 Series disconnects are engineered with brass construction, tin-plated contacts, and barrel insulation to deliver vibration-resistant, code-compliant terminations. Backed by UL and CSA certifications along with RoHS compliance, these disconnects give professional electricians a dependable, consistent-performing solution for demanding wiring applications.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0064
Maximum Voltage (V):
600
Standard Carton Volume Ft3:
0.0319
Color Code:
Blue
Lead Content Indicator:
Y
Mercury Content Indicator:
N
Wire Strip Length (In.):
9/32
Std Carton Width MM:
54.61
UOM EA PK:
PK
Pallet Volume:
0.000000
Copper Conductor Size:
16-14 AWG
Tongue Angle:
Straight
California Pro65 Cancer:
No
Maximum Voltage (kV):
0.6
Country of Origin:
MEX
Std Ctn Qty:
500
Product Type:
Disconnect
Pallet Quantity:
0
Flammability Rating:
UL94V-0
Std. Pkg. Qty.:
100
Insulation Type:
Barrel Insulated
Hazardous Material Flag:
N
Wire Strip Length (mm):
7.1
Restricted Use of Hazardous Substances:
N
Maximum Operating Temperature (°F):
221
Std. Pkg. UOM:
Piece
Sub Brand:
Pan-Term®
Product Segment:
IEI
Minimum Metric Conductor Size (mm²):
1.5
Min Order Qty:
100.0000
Product Size:
16-14 AWG
Maximum Metric Conductor Size (mm²):
2.5
Any Reason Not to Sell:
N
Barrel Type:
Funnel Entry
REACH Status:
N
Std Carton Width In:
2.15
Seam Type:
Butted
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
105
Packaging Type:
Bottle
Insulation Material:
Vinyl
Pallet Weight:
0.0000
Prop 65 Warning:
No
Department:
Electrical
Product Group:
Wiring Devices
