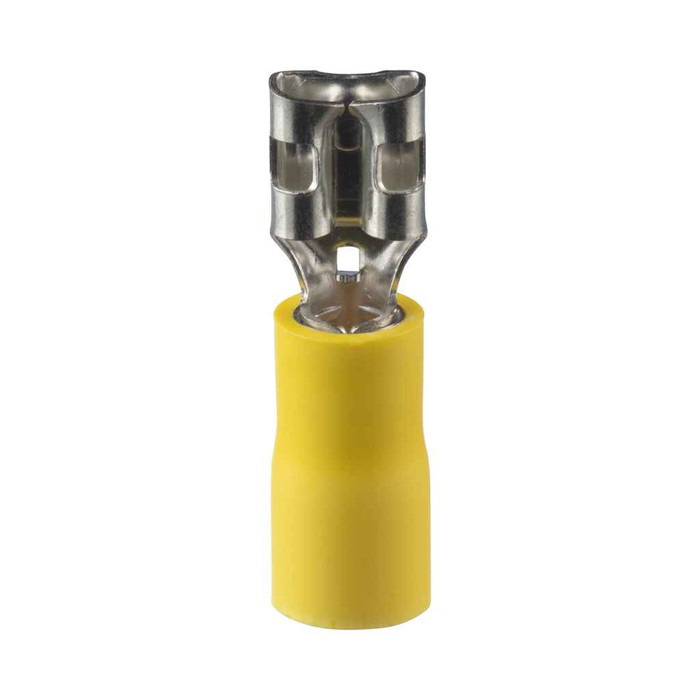

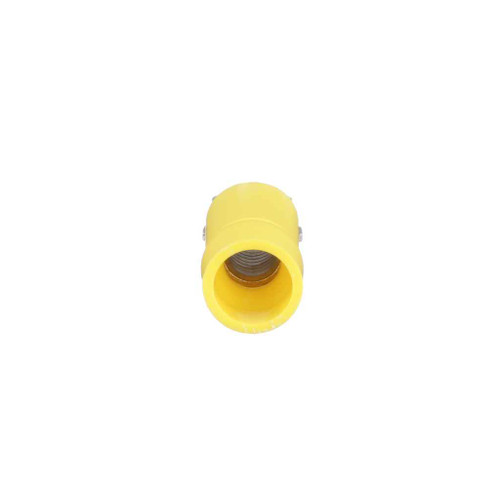

Panduit StrongHold Female Disconnect Terminal 12-10 AWG Yellow Vinyl Insulated

Panduit StrongHold Female Disconnect Terminal 12-10 AWG Yellow Vinyl Insulated

Professional Electrical Connection Solution

The Panduit StrongHold Female Disconnect Terminal delivers reliable electrical connections for 12-10 AWG wire applications. Featuring yellow vinyl barrel insulation and tin-plated brass construction, this disconnect terminal provides secure connections rated for 600V maximum voltage and operating temperatures up to 90�C (194�F). The grip sleeve barrel design ensures dependable performance in professional electrical installations.

Professional Features & Benefits

• 12-10 AWG Wire Range: Accommodates standard wire sizes for versatile electrical connection applications
• 600V Maximum Voltage Rating: Provides safe operation in standard electrical systems with reliable voltage handling
• Tin-Plated Brass Construction: Delivers excellent conductivity and corrosion resistance for long-term reliability
• Yellow Vinyl Barrel Insulation: Offers clear color coding and electrical insulation protection for safe installations
• 90�C Operating Temperature: Maintains performance in demanding temperature environments up to 194�F
• UL Recognized & CSA Listed: Meets rigorous safety standards for professional electrical applications
• Grip Sleeve Barrel Design: Ensures secure wire retention and reliable electrical connection integrity

Technical Specifications

• Arra Compliant: Y
• Barrel Type: Grip Sleeve
• Base Material: Brass
• Color Code: Yellow
• Country Of Origin: Mexico
• Disconnect Type: Female Disconnect
• Ean: 74983279807
• Finish Coating: Tin-Plated
• For Use With: CT-600-A, CT-1550, CT-1551, CT-2300/ST, CT-2500/L
• Gtin Carton: 5.0075E+13
• Gtin Package: 74983279807
• Hazardous Material Flag: N
• Insulation Material: Vinyl - Barrel Insulated
• Insulation Type: Barrel Insulated
• Maximum Copper Conductor Size Awg : 10
• Maximum Metric Conductor Size Mm : 6
• Maximum Operating Temperature C : 90
• Maximum Operating Temperature F : 194
• Maximum Voltage Kv : 0.6
• Maximum Voltage V : 600
• Maximum Wire Insulation Diameter In : 0.23
• Maximum Wire Insulation Diameter Mm : 5.8
• Maximum Wire Size Awg : 10
• Mercury Content Indicator: N
• Min Order Qty: 250
• Minimum Copper Conductor Size Awg : 12
• Minimum Metric Conductor Size Mm : 4
• Minimum Wire Size Awg : 12
• Overall Length In : 1.03
• Overall Length Mm : 26.2
• Overall Width In : 0.3
• Overall Width Mm : 7.6
• Packaging Type: Loose Piece
• Pallet Quantity: 0
• Pallet Volume: 0
• Pallet Weight: 0
• Product Segment: IEI
• Product Type: Disconnect
• Reach Status: N
• Rohs Compliant: Compliant
• Seam Type: Butted
• Standard Carton Volume Ft3: 0.1031
• Standard Carton Weight Pounds: 0.5
• Standard Package Volume Ft3: 0.0103
• Standard Package Weight Pounds: 0.05
• Std Carton Height In: 4.35
• Std Carton Height Mm: 110.49
• Std Carton Length In: 9.05
• Std Carton Length Mm: 229.87
• Std Carton Width In: 4.35
• Std Carton Width Mm: 110.49
• Std Ctn Qty: 250
• Std Package Height In: 0.8
• Std Package Height Mm: 20.32
• Std Package Length In: 4.6
• Std Package Length Mm: 116.84
• Std Package Width In: 3
• Std Package Width Mm: 76.2
• Std Pkg Qty : 25
• Std Pkg Uom: Piece
• Tab Size In : 0.25
• Tab Size Mm : 6.3
• Wire Strip Length In : Sep-32
• Wire Strip Length Mm : 7.1

Installation & Operation

1. Mount the unit in a suitable location with appropriate clearance and access for connections and service.
2. Connect utility and load conductors following applicable guidelines and the manufacturer's instructions.
3. Wire generator or power input according to the provided voltage/phase specifications and compatible capacity.
4. Configure any available load management or control features as supported by the provided specifications.
5. Test automatic transfer or operational functionality and verify proper performance before placing into service.
6. Complete final inspection and follow ongoing maintenance practices appropriate to the product category.

Professional Applications

• Electrical Panel Connections
• Control Circuit Wiring
• Industrial Equipment Connections
• Commercial Electrical Systems
• Maintenance and Repair Applications
• Professional Electrical Installations

Why Choose Panduit Quality?

Panduit StrongHold disconnect terminals deliver proven reliability with UL Recognition and CSA listing for professional electrical applications. The tin-plated brass construction and vinyl barrel insulation provide long-term durability and safe operation in demanding electrical environments.
