Panduit LHMS-S6-C Lightening Hole Cable Tie Mount, Nylon 6.6

Panduit LHMS-S6-C Lightening Hole Cable Tie Mount, Nylon 6.6

(No reviews yet) Write a Review

Model: LHMS-S6-C

In Stock (leaves warehouse same day if ordered before 3pm ET)

$321.23
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit LHMS-S6-C Lightening Hole Cable Tie Mount, Nylon 6.6

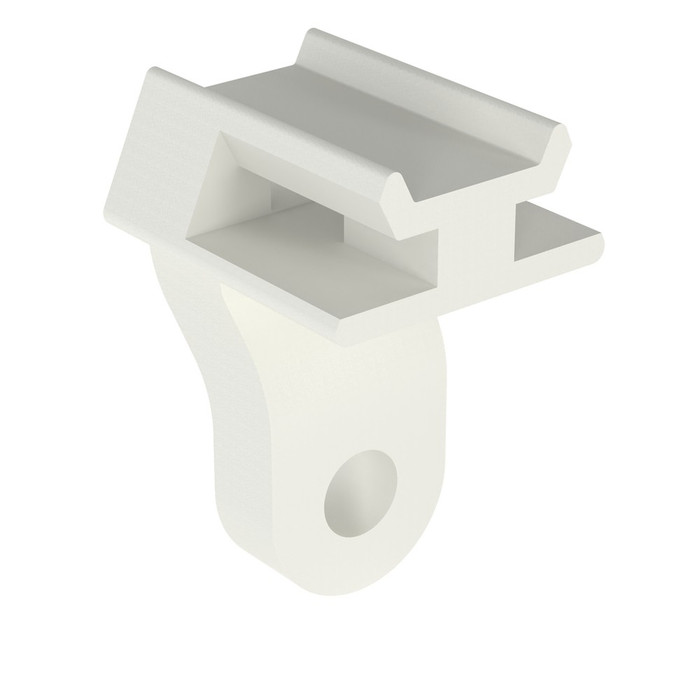

The Panduit LHMS-S6-C Lightening Hole Cable Tie Mount is a screw-on cable management mount designed for indoor use with miniature, intermediate, and standard cross-section cable ties. Molded from durable Nylon 6.6, this cable tie mount features a 0.15" (3.81 mm) diameter mounting hole sized for a #6 (M3) screw, and is packaged 100 pieces per box for professional installation runs. It carries a minimum loop tensile strength of 222 N (50 lb) and is cULus Listed to 62275 Type 2, 21 (E136577), CE marked, and RoHS Compliant.

Key Features

  • Mounting Hole: 0.15" (3.81 mm) diameter hole sized for a #6 (M3) screw for secure surface mounting.
  • Durable Construction: Molded from Nylon 6.6 for reliable indoor cable management performance.
  • Screw-On Mount Method: Simple screw-on installation for fast, secure placement on panels and enclosures.
  • For Use With: Compatible with miniature, intermediate, and standard cross-section cable ties.
  • Minimum Loop Tensile Strength: Rated to 222 N (50 lb) for dependable cable bundle retention.
  • Operating Temperature Range: Rated from -76°F to 185°F (-60°C to 85°C) for consistent performance across environments.
  • Flammability Rating: UL94V-2 rated material for indoor cable tie mounting applications.
  • Finish: Natural color Nylon 6.6 construction.

Certifications & Compliance

  • cULus Listed to 62275 Type 2, 21 (E136577)
  • CE Marked
  • RoHS Compliant

Technical Specifications

  • Maximum Operating Temperature (°F): 185
  • Minimum Operating Temperature (°F): -76
  • Maximum Operating Temperature (°C): 85
  • Minimum Operating Temperature (°C): -60
  • Overall Length (In.): 0.75
  • Overall Length (mm): 19
  • Overall Height (In.): 1.1
  • Mounting Hole Thread Size: #6
  • Minimum Loop Tensile Strength (N): 222
  • Minimum Loop Tensile Strength (lb): 50
  • For Use With: Miniature, Intermediate, Standard Cross-Section Ties
  • Std. Pkg. Qty.: 100
  • Std Ctn Qty: 500

Typical Applications

  • Indoor Cable Management and Routing
  • Panel and Enclosure Wire Bundling
  • Commercial and Industrial Wiring Installations
  • Screw-Mounted Cable Tie Applications
  • Data Center and Control Panel Cable Organization

Why Panduit?

Panduit builds the LHMS-S6-C from durable Nylon 6.6 with a UL94V-2 flammability rating, cULus Listing, CE marking, and RoHS Compliance, giving electrical professionals a dependable, code-compliant cable tie mount for indoor installations. Its screw-on design and 222 N (50 lb) minimum loop tensile strength deliver secure, long-lasting cable bundle retention across a wide -76°F to 185°F operating range.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0539
Maximum Operating Temperature (°F):
185
Standard Package Weight Pounds:
0.5600
REACH Status:
N
Std. Pkg. UOM:
Piece
Overall Width (mm):
17.7
Std Carton Length In:
10.37
California Pro65 Cancer:
No
Std Carton Height In:
4.38
Application:
Lightening Hole Cable Tie Mount
Std Package Length In:
8
Overall Length (mm):
19
Country of Origin:
United States
Standard Carton Volume Ft3:
0.2695
Std Package Length MM:
203.2
Mercury Content Indicator:
N
Std Carton Width In:
10.25
Std Ctn Qty:
500
Mount Method:
Screw-On
Product Segment:
IEI
Product Type:
Cable Tie Mount
GTIN Carton:
50074983417402
Std Carton Height MM:
111.252
Minimum Loop Tensile Strength (N):
222
Std Package Width MM:
38.1
Pallet Quantity:
145,000
Std Package Height In:
7
Flammability Rating:
UL94V-2
Minimum Operating Temperature (°C):
-60
Standard Carton Weight Pounds:
2.8000
Overall Height (In.):
1.1
Minimum Operating Temperature (°F):
-76
Std Package Height MM:
177.8
Min Order Qty:
100.0000
Mounting Hole Thread Size:
#6
RoHS Compliant:
Compliant
GTIN Package:
00074983417407
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
85
Std. Pkg. Qty.:
100
Minimum Loop Tensile Strength (lb):
50
For Use With:
Miniature, Intermediate, Standard Cross-Section Ties
Overall Length (In.):
0.75
Environment:
Indoor
Std Carton Length MM:
263.398
Std Carton Width MM:
260.35
Product Material:
Nylon 6.6
Product Color:
Natural
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
100

Panduit LHMS-S6-C – Frequently Asked Questions

1) What size screw does the Panduit LHMS-S6-C cable tie mount take?
The LHMS-S6-C uses a #6 screw, through a 0.15 inch (3.81 mm) mounting hole. That is the metric M3 equivalent, so if your panel is tapped for M3 you are fine. The screw itself is not supplied, so add #6 or M3 self-tapping or machine screws to the order depending on whether you are fastening into sheet metal or a tapped hole.
2) Can I use this Panduit screw-on tie mount outdoors or in an unheated building?
It is specified for indoor use, so exterior runs with UV exposure are the wrong application for it. Temperature is not the limit: the natural Nylon 6.6 body is rated from -76 F to 185 F (-60 C to 85 C), which covers unheated warehouses, cold storage, and hot equipment rooms. The restriction is weather and sunlight, not cold.
3) Does this Panduit cable tie mount meet RoHS and flammability requirements for a control panel spec?
The LHMS-S6-C is RoHS compliant, CE marked, and cULus Listed to 62275 Type 2, 21 under file E136577. Material flammability is UL94V-2. It is also ARRA compliant with United States country of origin, which matters on federally funded work.
4) How many Panduit LHMS-S6-C mounts come in a box, and is there a minimum order?
Standard package is 100 pieces, and 100 is also the minimum order quantity, sold by the piece. A full carton holds 500. For a job that needs a few hundred mounts, order in multiples of 100.
5) Can the LHMS-S6-C be stuck on with adhesive instead of screwed down?
No. It is a screw-on mount only, with a single #6 hole through the base. There is no adhesive pad. If you cannot drill or tap the surface, you need an adhesive-backed tie mount instead.
6) What color is the Panduit LHMS-S6-C, and does it matter in a visible install?
Natural, meaning the off-white unpigmented Nylon 6.6. In a closed enclosure or above ceiling it is invisible, but on exposed indoor surfaces it will not blend with black wiring or dark backplates. Plan for that if the run is in sight.
