Panduit Pan-Lug Compression Lug, Tin-Plated Copper, One-Hole

Panduit Pan-Lug Compression Lug, Tin-Plated Copper, One-Hole

(No reviews yet) Write a Review

Model: LCA1/0-38-X

In Stock (leaves warehouse same day if ordered before 3pm ET)

$6.51
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like
"

Panduit Pan-Lug Compression Lug, Tin-Plated Copper, One-Hole

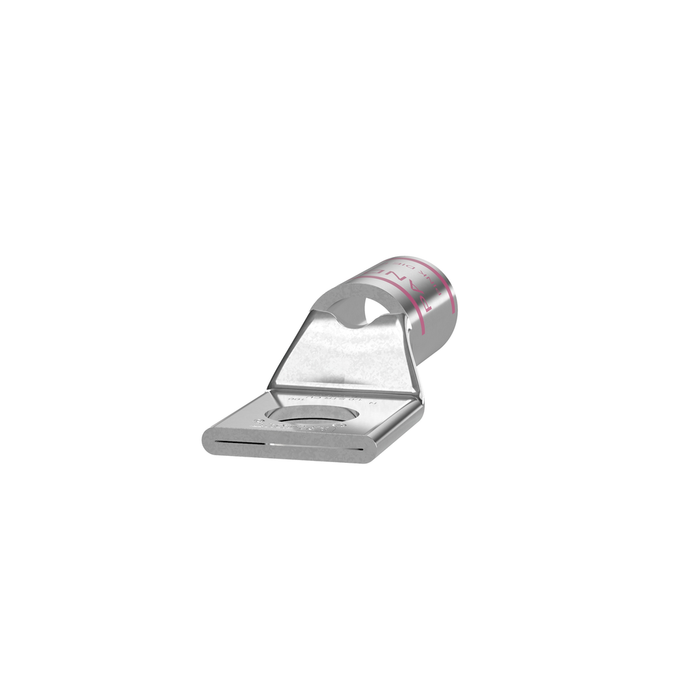

The Panduit Pan-Lug compression lug is a one-hole, standard-barrel connector built from tin-plated copper for flexible conductor terminations. The color-coded barrel is marked with Panduit and specified competitor die index numbers for proper crimp die selection, while a built-in inspection window lets installers visually confirm full conductor insertion before crimping. It is UL Listed and CSA Certified to a maximum voltage of 35 kV and temperature rated to 90 degrees C, making it suitable for demanding industrial and commercial power connections.

Key Features

  • Tin-Plated Copper Construction: Copper base metal with a tin-plated finish helps inhibit corrosion for a long-lasting, reliable connection.
  • One-Hole Standard Barrel: Configured with a single stud hole and a beveled barrel entry to guide flexible conductors into place during installation.
  • Inspection Window: A built-in inspection window allows visual verification of full conductor insertion prior to crimping.
  • Color-Coded Die Index Marking: Barrels are marked with Panduit and specified competitor die index numbers to help installers select the correct crimp die.
  • Standard Tongue Configuration: Straight tongue angle and standard tongue type for common panel and busbar mounting patterns.
  • Voltage and Temperature Rated: Certified to a maximum voltage of 35 kV and temperature rated to 90 degrees C for demanding electrical environments.

Certifications & Compliance

  • UL Listed, temperature rated to 90 degrees C
  • CSA Certified to 35 kV, temperature rated to 90 degrees C
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164
  • ABS Approved
  • RoHS Compliant

Technical Specifications

  • Standard Package Volume Ft3: 0.0328
  • Std. Pkg. UOM: Piece
  • CSA Temperature Rating (°C): 90
  • Inspection Window: Yes
  • Sub Brand: Pan-Lug™
  • Min Order Qty: 1.0000
  • Maximum Voltage (kV): 35
  • UL Temperature Rating (°C): 90
  • Country of Origin: MEX
  • Min. Order UOM: Piece
  • Std. Pkg. Qty.: 10
  • Number of Stud Holes: 1

Typical Applications

  • Industrial and Commercial Electrical Installations
  • Panelboard and Switchgear Terminations
  • Grounding and Bonding Connections
  • Flexible Conductor Terminations
  • Renovation and New Construction Wiring

Why Panduit?

Panduit engineers the Pan-Lug line with tin-plated copper construction, a built-in inspection window for installation quality control, and UL Listing plus CSA Certification to 35 kV, giving electrical professionals a dependable, code-compliant termination for flexible conductors. The color-coded, die-index-marked barrel further helps installers select the correct crimp tooling for a consistent, reliable crimp every time.

"

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0328
Std. Pkg. UOM:
Piece
CSA Temperature Rating (°C):
90
Barrel Entry:
Beveled
Inspection Window:
Yes
Standard Carton Volume Ft3:
0.0000
Lead Content Indicator:
N
Mercury Content Indicator:
N
Sub Brand:
Pan-Lug™
Product Segment:
IEI
Standard Carton Weight Pounds:
0.0000
Min Order Qty:
1.0000
UOM EA PK:
PK
Pallet Volume:
0.000000
Any Reason Not to Sell:
N
Barrel Type:
Standard
Stud Hole Spacing (mm):
0
Tongue Angle:
Straight
REACH Status:
N
Base Material:
Copper
California Pro65 Cancer:
No
Maximum Voltage (kV):
35
Finish/Coating:
Tin-Plated
UL Temperature Rating (°C):
90
Country of Origin:
MEX
Std Ctn Qty:
0
Product Type:
Compression Lug
Pallet Quantity:
0
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Std. Pkg. Qty.:
10
Tongue Type:
Standard
Hazardous Material Flag:
N
Restricted Use of Hazardous Substances:
N
Number of Stud Holes:
1
Pallet Weight:
0.0000
Prop 65 Warning:
No
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
100
