Panduit StrongHold™ EV10-6FB-Q Copper Vinyl-Insulated Fork Terminal, 600V

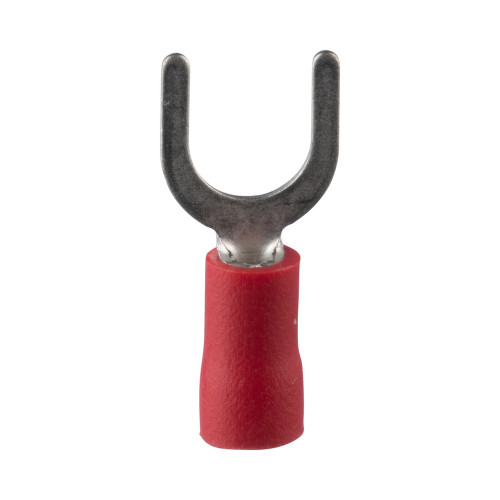

The Panduit StrongHold™ EV10-6FB-Q is a contractor-grade, vinyl-insulated fork terminal engineered for reliable, economical performance across general-purpose electrical applications. It accommodates 12-10 AWG conductors, is compatible with a #6 Stud (M3.5) / 1/8" stud size, and carries a 600V maximum voltage rating. This terminal is available in Blue, Red, and Yellow vinyl insulation colors, allowing installers to color-code conductor gauges while relying on the same UL Listed and CSA Certified construction across every option. The fork-style tongue allows for fast, easy installation without removing the fastener, making the EV10-6FB-Q a practical choice for commercial and industrial wiring systems, panelboards, and control panel terminations.

Key Features

  • Wire Range: Accommodates 12-10 AWG conductors for a broad range of general-purpose wiring applications.
  • Fork Design: Open fork tongue enables fast, easy installation and removal without disconnecting the fastener.
  • Stud Compatibility: Sized for a #6 Stud (M3.5) / 1/8" stud connection.
  • Durable Construction: Copper base material with a butted seam barrel and funnel entry for a secure, reliable crimp.
  • Insulation Colors: Offered in Blue, Red, and Yellow vinyl insulation for conductor-gauge color coding and easy identification.
  • Insulation Protection: Vinyl insulation provides electrical insulation and mechanical protection over the crimp area regardless of color selected.
  • Finish: Tin-plated copper contacts resist corrosion and maintain consistent conductivity.
  • Voltage Rating: Rated to a 600V maximum for general-purpose electrical circuits.
  • Operating Temperature: Rated to 221°F (105°C) for demanding installation environments.

Certifications & Compliance

  • UL Listed 587H E52164
  • CSA Certified LR31219
  • RoHS Compliant
  • Flammability Rating: UL587-H

Technical Specifications

  • Product Type: Fork Terminal
  • Base Material: Copper
  • Insulation Material: Vinyl
  • Insulation Colors Available: Blue, Red, Yellow
  • Finish/Coating: Tin-Plated
  • Fork Type: Standard
  • Barrel Type: Funnel Entry
  • Seam Type: Butted
  • Maximum Voltage (V): 600
  • Maximum Operating Temperature (°F): 221
  • Maximum Operating Temperature (°C): 105
  • Std. Pkg. Qty.: 25
  • RoHS Compliant: Compliant
  • Country of Origin: Mexico

Typical Applications

  • General-Purpose Electrical Wiring Connections
  • Commercial and Industrial Electrical Installations
  • Panelboard and Control Panel Wiring
  • Color-Coded Conductor Identification Systems
  • OEM and MRO Terminal Connections
  • Renovation and New Construction Wiring

Why Panduit?

Panduit's StrongHold™ line delivers contractor-grade fork terminals built from tin-plated copper with vinyl insulation for dependable, code-compliant performance across every available color option. Backed by UL and CSA certification, the EV10-6FB-Q offers a fast-install fork design that electrical contractors can rely on for consistent, secure terminations across general-purpose wiring projects, whether specifying Blue, Red, or Yellow for gauge identification.

"

Manufacturer Resources

Product Specs

Maximum Voltage (V):
600
Minimum Voltage (kV):
0.6
Mercury Content Indicator:
N
Minimum Operating Temperature (°F):
221
UOM EA PK:
PK
Pallet Volume:
0.000000
Std Package Length In:
4.55
Maximum Voltage (kV):
0.6
Finish/Coating:
Tin-Plated
Product Type:
Fork Terminal
Pallet Quantity:
0
Flammability Rating:
UL587-H
Minimum Operating Temperature (°C):
105
Std. Pkg. Qty.:
25
Hazardous Material Flag:
N
Minimum Voltage (V):
600
Maximum Operating Temperature (°F):
221
Std. Pkg. UOM:
Piece
Std Package Length MM:
115.57
Sub Brand:
StrongHold™
Product Segment:
IEI
Min Order Qty:
250.0000
Any Reason Not to Sell:
N
Barrel Type:
Funnel Entry
REACH Status:
N
Base Material:
Copper
Fork Type:
Standard
Seam Type:
Butted
RoHS Compliant:
Compliant
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
105
Packaging Type:
Loose Piece
Insulation Material:
Vinyl
Pallet Weight:
0.0000
Country of Origin:
Mexico
Department:
Electrical
Product Group:
Wiring Devices
Pack Size:
100
Product Material:
Copper
Finish:
Tin-Plated
Voltage Rating:
600V
Listing:
UL Listed
Standards:
CSA Certified

Panduit EV18-6FB-Q – Frequently Asked Questions

1) What wire size does the Panduit EV10-6FB-Q fork terminal take, and which stud does it fit?
The EV10-6FB-Q handles 12-10 AWG conductors and is sized for a #6 stud (M3.5) / 1/8 inch stud. If your conductor is smaller, the color-coded siblings cover it: EV14-14FB-Q in blue and EV18-6FB-Q in red. Vinyl insulation follows the usual color code, so yellow is the 12-10 AWG part on the bench.
2) Can I use a Panduit StrongHold vinyl fork terminal on a 600V control panel circuit?
Yes. The StrongHold vinyl-insulated fork terminals are rated to 600V maximum, which covers panelboard and control panel wiring, general-purpose branch circuits, and OEM/MRO terminations. They are UL Listed (587H E52164) and CSA Certified (LR31219).
3) Why choose a fork terminal instead of a ring terminal for panel wiring?
The open fork tongue slides in under a screw or nut that is only backed off, so you can land or pull a conductor without removing the fastener. That saves real time on a panel full of terminal blocks and on service work. A ring terminal is the choice where vibration or an accidental pull could dislodge the connection, since the ring is captive on the stud. The EV10-6FB-Q uses a standard fork type.
4) What is the barrel construction on these Panduit terminals, and will it crimp cleanly on stranded wire?
Copper barrel with a butted seam and a funnel entry, tin-plated. The funnel entry guides stranded conductors in without birdcaging strands on the barrel edge, and the tin plating keeps the copper-to-copper contact from corroding. Crimp with a tool matched to insulated terminals in the 12-10 AWG range.
5) Are Panduit StrongHold fork terminals RoHS compliant and ARRA compliant for a government job?
Both. The StrongHold vinyl fork terminals are RoHS compliant and flagged ARRA compliant, with no mercury content. They carry a UL587-H flammability rating and are made in Mexico. That combination is what institutional and government specs usually ask for on terminal accessories.
6) How do Panduit StrongHold fork terminals come packaged, and is there a minimum order?
They ship as loose pieces, standard package quantity 25, with a pack size of 100. Minimum order is 250 pieces. Worth knowing if you are buying for a single panel rather than stocking a truck.
