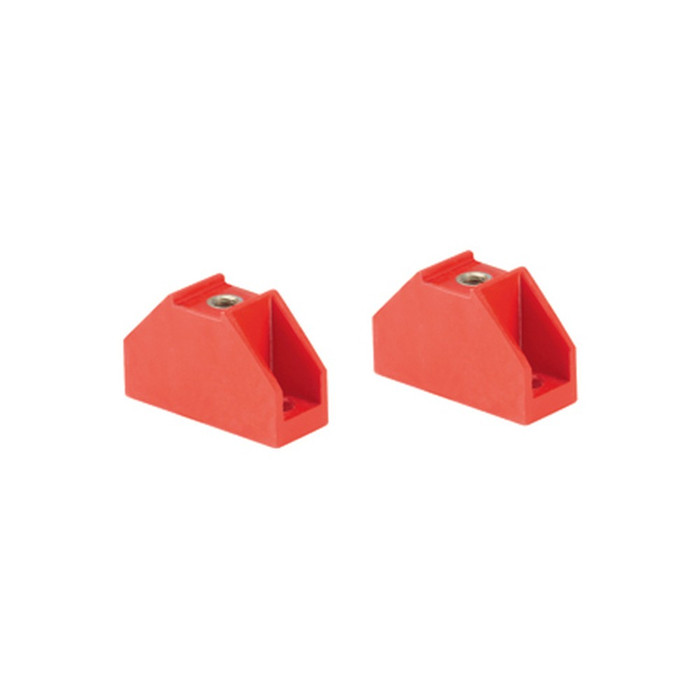

Panduit StructuredGround™ UGB-IN-SO Universal Ground Bar Stand-Off, Plastic

Panduit StructuredGround™ UGB-IN-SO Universal Ground Bar Stand-Off, Plastic

(No reviews yet) Write a Review

Model: UGB-IN-SO

In Stock (leaves warehouse same day if ordered before 3pm ET)

$28.50
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit StructuredGround™ UGB-IN-SO Universal Ground Bar Stand-Off, Plastic

The Panduit StructuredGround™ UGB-IN-SO Universal Ground Bar Stand-Off is a bonding accessory used with Panduit Universal Ground Bar products to securely terminate the main equipment grounding conductor using a compression or mechanical connector inside any control panel or enclosure. Constructed from 110 electrolytic tin plated copper and DMC grade plastic, the stand-off features a unique shape that increases surface contact between wire connectors and the ground bar for a dependable bonding path. Multiple termination methods and mounting options make it a versatile choice for control panel grounding, and the assembly is RoHS Compliant for use in regulated industrial and commercial environments.

Key Features

  • Durable Construction: Built from 110 electrolytic tin plated copper and DMC grade plastic for reliable conductivity and long-term durability.
  • Enhanced Contact Design: Unique shape increases surface contact between wire connectors and the ground bar for a secure bonding connection.
  • Flexible Termination: Compatible with compression or mechanical connectors, supporting multiple termination methods.
  • Mounting Versatility: Multiple mounting options are available to fit a range of control panel and enclosure layouts.
  • Control Panel Application: Designed specifically for bonding and grounding within control panels and enclosures.
  • Kit Packaging: Supplied as a Kit with a Standard Package Quantity of 1 for straightforward stocking and installation.

Certifications & Compliance

  • RoHS Compliant
  • ARRA Compliant

Technical Specifications

  • REACH Status: N
  • Std. Pkg. UOM: Kit
  • Overall Width (mm): 15
  • Std Carton Length In: 9.1
  • Std Carton Height In: 4.4
  • Overall Length (mm): 40
  • Mercury Content Indicator: N
  • Std Carton Width In: 4.4
  • Std Ctn Qty: 10
  • Product Segment: IEI
  • Pallet Quantity: 0
  • Std Package Height In: 1.2
  • Min. Order UOM: Kit
  • ARRA Compliant: Y
  • Std. Pkg. Qty.: 1
  • UOM EA PK: EA
  • Std Package Width In: 3.8
  • Hazardous Material Flag: N
  • Any Reason Not to Sell: N
  • Overall Height (mm): 25
  • Overall Width (In.): 0.59

Typical Applications

  • Control Panel and Enclosure Grounding
  • Main Equipment Grounding Conductor Termination
  • Industrial and Commercial Electrical Installations
  • Compression and Mechanical Connector Bonding
  • Panduit Universal Ground Bar System Assemblies

Why Panduit?

Panduit builds the StructuredGround™ UGB-IN-SO Stand-Off from tin plated copper and DMC grade plastic to deliver a dependable, code-compliant bonding path for control panel and enclosure grounding. With RoHS Compliant materials and a design engineered for maximum wire-connector contact, this stand-off supports reliable, professional-grade grounding installations.

Manufacturer Resources

Spec Sheet

Product Specs

Standard Package Volume Ft3:
0.0074
Standard Package Weight Pounds:
0.1100
REACH Status:
N
Std. Pkg. UOM:
Kit
Overall Width (mm):
15
Std Carton Length In:
9.1
Std Carton Height In:
4.4
Std Package Length In:
4.15
Overall Length (mm):
40
Standard Carton Volume Ft3:
0.0741
Std Package Length MM:
105.41
Mercury Content Indicator:
N
Std Carton Width In:
4.4
Sub Brand:
StructuredGround™
Std Ctn Qty:
10
Product Segment:
IEI
Product Type:
Grounding Busbar
GTIN Carton:
50074983402187
Std Carton Height MM:
111.76
Std Package Width MM:
96.52
Pallet Quantity:
0
Std Package Height In:
1.2
Standard Carton Weight Pounds:
1.1000
Overall Height (In.):
0.98
Std Package Height MM:
30.48
Min Order Qty:
3.0000
RoHS Compliant:
Compliant
GTIN Package:
00074983402182
Min. Order UOM:
Kit
Arra Compliant:
Y
Std. Pkg. Qty.:
1
Overall Length (In.):
1.57
Std Carton Length MM:
231.14
Std Carton Width MM:
111.76
UOM EA PK:
EA
Pallet Volume:
0.000000
Std Package Width In:
3.8
Hazardous Material Flag:
N
Any Reason Not to Sell:
N
Pallet Weight:
0.0000
Overall Height Mm:
25
Overall Width (In.):
0.59
Department:
Electrical
Product Group:
Grounding & Bonding
Product Subgroup:
Grounding & Bonding
Application:
Control Panel

Panduit UGB-IN-SO – Frequently Asked Questions

1) What does the Panduit UGB-IN-SO stand-off actually do in a control panel?
The UGB-IN-SO is a bonding accessory that mounts a Panduit Universal Ground Bar off the panel surface so the main equipment grounding conductor can be terminated inside a control panel or enclosure. It is not a ground bar by itself, it is the insulating stand-off the bar sits on. Its shape increases surface contact between the wire connector and the bar, and it accepts either compression or mechanical connectors.
2) Is the ground bar included with the UGB-IN-SO, or do I order that separately?
The UGB-IN-SO is the stand-off only. It is an accessory used with Panduit Universal Ground Bar products, so the bar itself, plus the connectors you intend to land, are separate line items. Order the bar sized for the number of terminations your panel needs and the stand-offs to mount it.
3) Is the Panduit UGB-IN-SO conductive or is it an insulator?
Both materials are in the assembly. It is built from 110 electrolytic tin plated copper and DMC grade plastic, so you get the plastic body for the stand-off and tin plated copper where the bonding path runs. Tin plating on copper is what keeps the contact surface from oxidizing in a panel over time.
4) How many UGB-IN-SO stand-offs do I have to buy at a time?
Minimum order is 3 kits, and each kit is a standard package quantity of 1. Cartons hold 10, so a full carton is 10 kits. Ground bars are typically mounted on a pair of stand-offs, so plan your quantity around how many bars you are setting.
5) Does the UGB-IN-SO meet RoHS and Buy American style requirements for a government or institutional job?
The stand-off is RoHS Compliant and flagged ARRA Compliant, which is what most federally funded and institutional specs ask for on grounding hardware. It also carries no mercury content and is not classed as hazardous material for shipping.
6) What is the part number and where is the Panduit UGB-IN-SO made?
The manufacturer part number is UGB-IN-SO, from Panduit's StructuredGround line. Country of origin is listed as Mexico or India depending on the production run.
