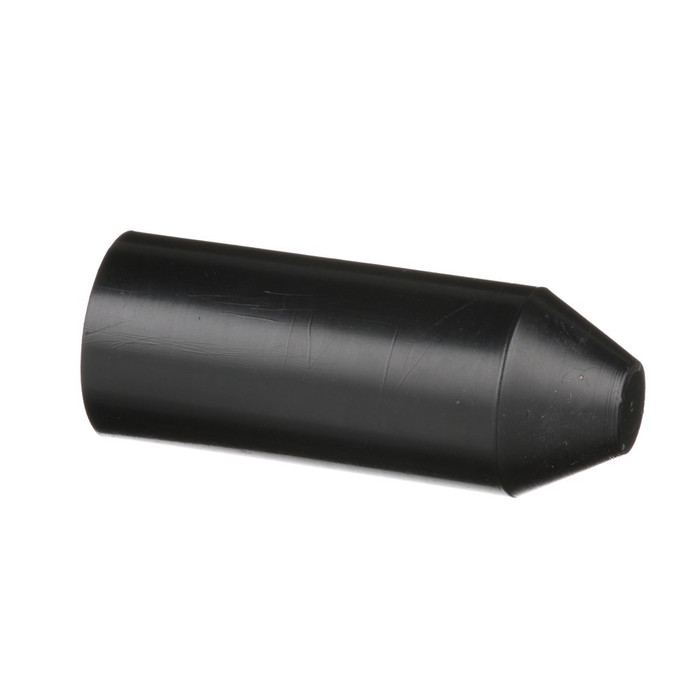

Panduit Wet-Shrink™ HSEC0.5-X Heat Shrink End Cap, Black Polyolefin

Panduit Wet-Shrink™ HSEC0.5-X Heat Shrink End Cap, Black Polyolefin

(No reviews yet) Write a Review

Model: HSEC0.5-X

In Stock (leaves warehouse same day if ordered before 3pm ET)

$7.13
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Panduit Wet-Shrink™ HSEC0.5-X Heat Shrink End Cap, Black Polyolefin

The Panduit Wet-Shrink™ HSEC0.5-X Heat Shrink End Cap is a Cross-linked Polyolefin end cap with an adhesive-lined inner wall that seals out moisture for reliable wire and cable protection in wet locations. It carries a 600V rating, a 2.5:1 shrink ratio, and a 0.47" (11.9 mm) minimum expanded I.D., and is RoHS Compliant for use across industrial and electrical infrastructure applications.

Key Features

  • Adhesive-Lined Inner Wall: Seals and protects wire and cable ends against moisture intrusion.
  • Durable Construction: Cross-linked Polyolefin material for long-term durability in wet applications.
  • Shrink Ratio: 2.5:1 (HSEC) for a secure, conforming fit.
  • Voltage Rating: 600V for insulating and protecting wires and cables.
  • Temperature Range: -40°F to 257°F (-40°C to 125°C) for demanding environments.
  • Minimum Expanded I.D.: 0.47" (11.9 mm) for compatibility with the HSEC0.5-X size range.
  • Finish: Black color, moisture-resistant.

Certifications & Compliance

  • RoHS Compliant

Technical Specifications

  • Maximum Operating Temperature (°F): 257
  • Minimum Operating Temperature (°F): -40
  • Maximum Operating Temperature (°C): 125
  • Minimum Operating Temperature (°C): -40
  • Overall Length (In.): 1.61
  • Maximum Recovered Inside Diameter (mm): 4.6
  • Nominal Recovered Wall Thickness (mm): 2.2
  • Std. Pkg. Qty.: 10
  • Std Ctn Qty: 100
  • Product Size: 61"
  • Product Segment: IEI
  • REACH Status: N
  • Lead Content Indicator: N
  • Mercury Content Indicator: N
  • ARRA Compliant: Y
  • California Pro65 Cancer: No
  • Std Carton Length In: 8.5
  • Std Carton Length MM: 215.9
  • Std Carton Width MM: 207.01
  • Std Package Length In: 8.1
  • Std Package Height In: 1.4

Typical Applications

  • Insulating and Protecting Wires and Cables
  • Wet-Location Cable and Wire Terminations
  • Moisture Sealing for Splices and Wire Ends
  • Industrial and Electrical Infrastructure (IEI) Wiring
  • Outdoor and Wet-Environment Electrical Installations

Why Panduit?

Panduit's Wet-Shrink™ HSEC0.5-X End Cap combines an adhesive-lined, Cross-linked Polyolefin construction with a 600V rating and RoHS-compliant materials to deliver dependable, moisture-resistant wire protection. It's built for professionals who need code-conscious, long-lasting performance in wet-location electrical work.

Manufacturer Resources

Product Specs

Standard Package Volume Ft3:
0.0185
Maximum Operating Temperature (°F):
257
Standard Package Weight Pounds:
0.1900
Minimum Expanded Inside Diameter (mm):
11.9
REACH Status:
N
Std. Pkg. UOM:
Piece
Std Carton Length In:
8.5
Nominal Recovered Wall Thickness (In.):
0.09
California Pro65 Cancer:
No
Std Carton Height In:
5.85
Std Package Length In:
8.1
Overall Length (mm):
40.9
Country of Origin:
India
Standard Carton Volume Ft3:
0.1850
Std Package Length MM:
205.74
Lead Content Indicator:
N
Mercury Content Indicator:
N
Std Carton Width In:
8.15
Sub Brand:
Wet-Shrink™
Shrink Ratio:
2.5:1
Std Ctn Qty:
100
Product Segment:
IEI
Resistance Properties:
Moisture-Resistant
Product Type:
Heat Shrink End Cap
GTIN Carton:
50074983913300
Std Carton Height MM:
148.59
Std Package Width MM:
151.13
Pallet Quantity:
20,000
Std Package Height In:
1.4
Minimum Operating Temperature (°C):
-40
Nominal Recovered Wall Thickness (mm):
2.2
Standard Carton Weight Pounds:
1.9000
Minimum Operating Temperature (°F):
-40
Std Package Height MM:
35.56
Min Order Qty:
100.0000
RoHS Compliant:
Compliant
GTIN Package:
00074983913305
Min. Order UOM:
Piece
ARRA Compliant:
Y
Maximum Operating Temperature (°C):
125
Std. Pkg. Qty.:
10
Overall Length (In.):
1.61
Maximum Recovered Inside Diameter (mm):
4.6
Std Carton Length MM:
215.9
Std Carton Width MM:
207.01
Product Material:
Cross-Linked Polyolefin
Product Color:
Black
Product Size:
61"
Department:
Electrical
Product Group:
Wiring Devices
