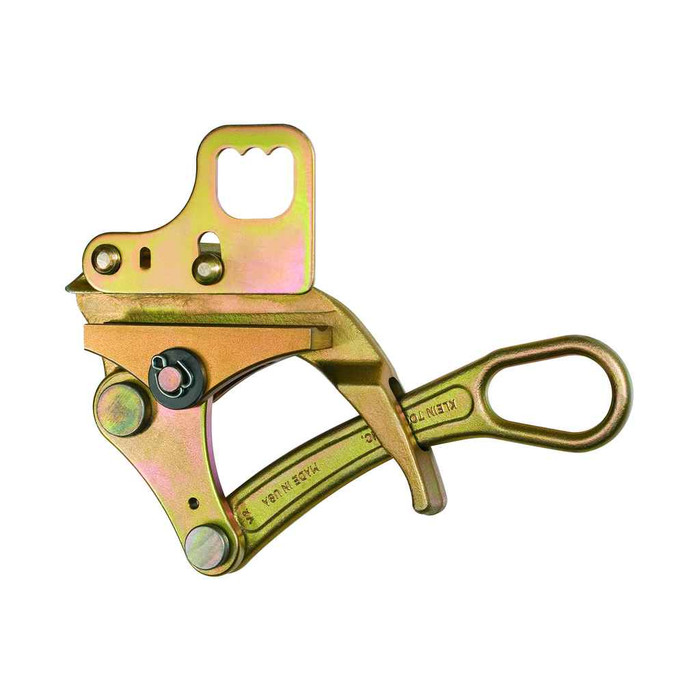

Parallel Jaw Grip 4802 Series with Hot Latch
KT4802 - spec sheet
Warnings
- Always match proper size and type of grip to application.
- Do not exceed rated capacity.
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near energized lines, ground, insulate, or isolate grip before pulling.
- Grips are to be used for temporary installation, not for permanent anchorage.
Features
- Maximum Safe Load of 12,000-pounds (5443 kg)
- Klein offers a lifetime warranty on material defects and workmanship for the normal life of the product
- Made in USA
- Hot Latch
- Round jaw provides maximum contact with the cable minimizing deformation
- Large eyelet opening in the handle to accommodate a wide variety of hooks on hoists, winches and tackle blocks
- Securely pulls 0.700 - 1.25-Inch (17.78 - 31/75 mm) diameter ACSR cables
- Hot latch closes automatically to guard against grip accidently disengaging from wire
KT4802 - spec sheet
Manufacturer Resources
Product Specs
- Cable Diameter:
- 0.7" to 1.25" (17.78 to 31.75 mm)
- Cable Type:
- ACSR, AAC, Copper
- Depth:
- 13.5000 in
- Height:
- 2.2500 in
- Hot Latch:
- Yes
- Jaw Length:
- 5.125" (13 cm)
- Jaw Type:
- Round - Serrated
- Locking Handle:
- No
- Maximum Safe Load:
- 12,000 lb (5443 kg)
- Spring:
- Yes
- Swing Latch:
- No
- Type:
- Parallel Jaw Grip
- Weight:
- 9.0000 lbs
- Width:
- 7.5000 in
