Pass & Seymour Double Pole AC Manual Motor Controller, 30A/600V

Pass & Seymour Double Pole AC Manual Motor Controller, 30A/600V

(No reviews yet) Write a Review

Model: 7802-MD

In Stock (leaves warehouse same day if ordered before 3pm ET)

$59.60
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour Double Pole AC Manual Motor Controller, 30A/600V

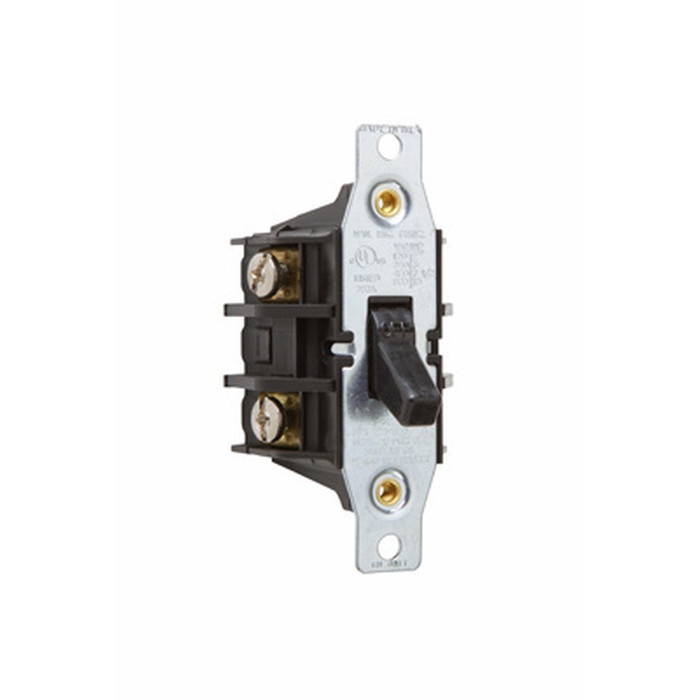

The Pass & Seymour Double Pole, Single Phase AC Manual Motor Controller is a heavy-duty manual disconnect switch rated 30 amp at 600 volts (max), suitable for use as a motor disconnect in single phase AC applications up to 20HP. Built with a glass-reinforced thermoplastic housing and a heavy-duty zinc-plated steel strap secured by two brass rivets, this controller is UL508 and cULus Listed both as an individual device and as an assembled device within an enclosure, making it a dependable choice for commercial and industrial motor circuits.

Key Features

  • Electrical Rating: Rated 30 amp at 600 volts (max) for double pole, single phase AC motor disconnect applications.
  • High Horsepower Rating: 20HP rating supports demanding single phase motor loads.
  • Durable Construction: Glass-reinforced thermoplastic housing paired with a heavy-duty zinc-plated steel strap for long-term durability.
  • Secure Strap Attachment: Two brass rivets secure the strap to the housing for added mechanical reliability.
  • Terminal Design: External screw-pressure-plate back and side wire terminal screws are unstaked for use with ring terminals, and gull-wing shaped brass terminal pressure clamps ensure a solid wire connection.
  • Listing: UL508 and cULus Listing applies to both the individual device and the assembled device within an enclosure.

Certifications & Compliance

  • cULus Listed
  • UL508 Listed (individual device and assembled device within enclosure)

Technical Specifications

  • Amperage Rating: 30A
  • Voltage Rating: 600V (max)
  • Horsepower Rating: 20HP
  • Finish: Matte
  • Product Line: Pass & Seymour
  • Color: Black
  • Material: Thermoplastic
  • Country of Origin: Mexico
  • Packaging: 10 EA

Typical Applications

  • Motor Disconnect Switching for Single Phase AC Motors
  • Commercial and Industrial Electrical Installations
  • Manual Motor Control Circuits up to 20HP
  • Enclosure-Mounted Motor Disconnect Assemblies
  • Renovation and New Construction Motor Wiring

Why Pass & Seymour?

Pass & Seymour builds this double pole AC manual motor controller with a glass-reinforced thermoplastic housing, a zinc-plated steel strap secured by brass rivets, and gull-wing brass terminal pressure clamps for a rugged, long-lasting motor disconnect. With UL508 and cULus Listing on both the individual device and the assembled enclosure, it delivers code-compliant, reliable performance for demanding single phase motor disconnect applications up to 30A, 600V, and 20HP.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
PASS-20260820
Product Type:
Manual Motor Starter
Product Finish:
Matte
Voltage Rating:
600V
Amperage Rating:
30A
Listing:
cULus
Product Material:
Thermoplastic
Product Color:
Black
Department:
Electrical
Product Group:
Motor Control & Automation
Product Subgroup:
Motor Starters & Contactors

Pass & Seymour 7802-MD – Frequently Asked Questions

1) Will a double pole manual controller work on a three phase motor?
No. The 7802-MD is a two-pole device for single phase AC circuits, so it only interrupts two conductors and will not serve a three phase motor. For three phase you need a three-pole controller, for example the Leviton MS303-DSW, an industrial grade 3-pole 600V AC 30A three phase manual motor controller.
2) Is the Pass & Seymour 7802-MD listed for use inside an enclosure, or only as a standalone device?
Both. The UL508 and cULus Listing on the 7802-MD covers the individual device and the assembled device within an enclosure, so an inspector will accept it mounted in an enclosure as a motor disconnect assembly.
3) How much horsepower will the 7802-MD handle?
Up to 20HP on single phase AC, at 30 amps and 600 volts max. Size the circuit to the motor's full load amps, not the horsepower alone, since the 30A rating is the ceiling on current through the device.
4) What should I use instead of the Pass & Seymour 7802-MD for a three-phase motor disconnect?
The 7802-MD is a double pole, single phase AC manual motor controller rated 30A at 600V, so it does not suit a three-phase motor. For a three-phase load, the Leviton MS303-DSW is a 3-pole, 600V AC, 30A industrial grade three-phase manual motor controller at the same 30A/600V ratings but with the third pole the three-phase circuit requires.
5) Is the Leviton MS303-DSW a drop-in replacement for a Pass & Seymour 7802-MD?
No. Both are 30A, 600V AC manual motor controllers, but the pole count differs: the Pass & Seymour 7802-MD is double pole for single phase AC motors up to 20HP, while the Leviton MS303-DSW is 3-pole for three-phase service. Swapping one for the other changes the number of conductors switched, so match the controller to the motor's phase rather than treating them as interchangeable.
6) Can I land ring terminals on this manual motor controller?
Yes. The back and side wire terminal screws on the 7802-MD are external screw-pressure-plate type and are left unstaked specifically so ring terminals can be used. Gull-wing shaped brass pressure clamps hold the conductor. You get both back wire and side wire options, so it works whether you are feeding straight in behind the device or looping conductors to the side.
7) Does the 7802-MD provide overload protection for the motor?
No. It is a manual controller and disconnect switch, used for manually opening the motor circuit, not an overload relay or a combination starter. Branch circuit and motor overload protection has to come from devices upstream or from a starter with overloads.
8) Which 30A manual motor controller is rated industrial grade?
The Leviton MS303-DSW is specified as industrial grade and is a 3-pole, 30A, 600V AC three-phase manual motor controller. The Pass & Seymour 7802-MD covers single phase service as a double pole 30A/600V device with a glass-reinforced thermoplastic housing, zinc-plated steel strap, and UL508 and cULus Listing as both an individual device and an assembled device within an enclosure.
9) Is this manual controller tough enough for an industrial machine room?
The housing is glass-reinforced thermoplastic and the mounting strap is heavy-duty zinc-plated steel fixed with two brass rivets, which is a heavy-duty construction intended for commercial and industrial motor circuits rather than light residential switching.
10) What color and finish is the Pass & Seymour 7802-MD, for matching other devices on a panel?
Black with a matte finish. That is the only configuration of the 7802-MD, so if your other disconnects on the wall are ivory or white device-color, this one will not match them visually.
11) How is the 7802-MD packaged for a larger job?
It is packaged 10 each, so quantities come in multiples suited to multi-unit or plant-wide motor disconnect work rather than a single device clamshell.
