Pass & Seymour L2130P 30A L213...
IN STOCK (leaves warehouse same day if ordered before 3pm ET)
$109.04
$66.07

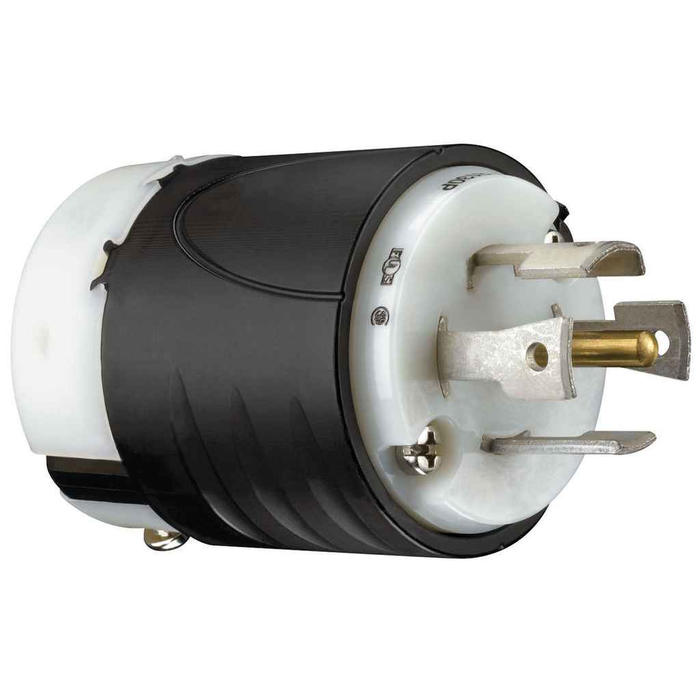

Pass & Seymour L2130P 30A L2130 Twist-Lock Plug, Black/White Nylon

Pass & Seymour L2130P 30A L2130 Twist-Lock Plug, Black/White Nylon

(No reviews yet) Write a Review

Model: L2130-P

In Stock (leaves warehouse same day if ordered before 3pm ET)

$109.04
$66.07
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour L2130P 30A L2130 Twist-Lock Plug, Black/White Nylon

The Pass & Seymour L2130P is a 30A L2130 configuration twist-lock plug built with a black back and white front nylon 6 shell for durability on the job site. Featuring an integral flexible rubber cord grommet, industrial-strength brass alloy blades and contacts, and a double dovetail design, this plug is engineered for reliable, code-compliant field wiring. It is cULus Listed for safe use in demanding industrial and commercial environments.

Key Features

  • Rated Configuration: 30A L2130 NEMA locking configuration, visibly stamped on the device for easy identification.
  • Durable Construction: Impact- and corrosion-resistant nylon 6 shell material with black back and white front body for long service life.
  • Cord Protection: Integral flexible rubber cord grommet conforms to and seals around SO cord, protecting against oils, water, or chips entering the wiring chamber.
  • Ready-to-Wire Design: Quick-thread assembly screws and cord-grip screws come backed-out for faster field installation.
  • Secure Cord Retention: Double dovetail design and new-design external cord grips provide superior protection against cord pull-out forces with visible assurance of proper retention.
  • Non-Slip Grip: Raised ribs and scallop shell design provide a non-slip gripping profile for turning to lock/unlock and for insertion and withdrawal.
  • Contact Material: Industrial-strength brass alloy plug blades and connector contacts resist heat rise and provide excellent conductivity.
  • Job-Site Durability: Rounded back contour reduces snags and hang-ups during handling and use.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Country Of Origin: Mexico
  • Product Length: 2.57 in
  • Product Line: Pass & Seymour
  • Product Width: 2.2 in

Typical Applications

  • Industrial and Commercial Power Cord Assemblies
  • Portable Equipment and Machinery Connections
  • Temporary Power Distribution
  • Job-Site and Construction Site Wiring
  • Replacement or Upgrade of Existing L2130 Devices

Why Pass & Seymour?

Pass & Seymour builds the L2130P with industrial-strength brass alloy contacts, impact- and corrosion-resistant nylon 6 construction, and a cULus Listed rating for dependable performance in demanding environments. The reinforced cord-grip design and visible NEMA configuration stamping help ensure safe, code-compliant connections for professional electrical work.

Manufacturer Resources

Spec Sheet

Product Specs

Product Type:
Locking Plug
Product Material:
Nylon
Product Color:
Black/White
Amperage Rating:
30A
Configuration:
L2130
Listing:
cULus
Department:
Electrical
Product Group:
Wiring Devices
Product Subgroup:
Plugs & Connectors
Product Length:
2.57 in
Product Width:
2.2 in

Pass & Seymour L2130-P – Frequently Asked Questions

1) Will the L2130P mate with an existing L21-30 receptacle or connector already installed?
Yes. Any device built to the NEMA L21-30 pattern intermates, so the L2130P plugs into an existing L21-30 receptacle or twist-lock connector body regardless of brand. It is a direct drop-in for replacing a damaged L2130 plug on a cord assembly.
2) Can this twist-lock plug be used outdoors or on a wet job site?
The L2130P itself is not a weatherproof enclosure. What it does have is an integral flexible rubber cord grommet that conforms and seals around SO cord, which keeps oils, water, and metal chips out of the wiring chamber, plus a nylon 6 shell rated impact- and corrosion-resistant. For exposed outdoor use, pair it with a weatherproof receptacle or cover; the plug is intended for industrial, commercial, and construction-site cord assemblies.
3) How does the L2130P hold the cord so it does not pull out under strain?
Retention is handled two ways: a double dovetail shell design and external cord grips that give visible confirmation the cord is properly clamped, so you can see the retention rather than guessing. The cord-grip screws and assembly screws ship backed out, which saves a step when you are terminating cords in the field.
4) Is the L2130P a plug or a connector body, and what do I need to complete the cord?
This is the male plug end, the half with blades that goes into a receptacle or connector. To build a full extension or equipment cord in L21-30 you also need the mating female connector body on the other end, plus 5-conductor SO cord sized for 30 amps. Mounted panel outlets and inlets are separate devices again.
5) What are the blades and contacts made of on this 30A locking plug?
Industrial-strength brass alloy, for the blades and the contacts both. Brass resists heat rise at 30 amps on three legs, which is where a cheap plug fails first, discolored blades and a melted face. The shell around it is nylon 6 with a black back and white front.
6) How big is the L2130P plug body?
Published dimensions are 2.57 in length and 2.2 in width. Worth checking if you are feeding it through a strain-relief boot or into a tight equipment panel pocket. The back contour is rounded to cut down on snagging when the cord gets dragged.
7) Where can I get the full spec sheet for the Pass & Seymour L2130P?
Pass & Seymour publishes a spec sheet for the L2130P, and it is linked in the product specifications. The device is made in Mexico and sold as part number L2130-P under the Pass & Seymour line.
