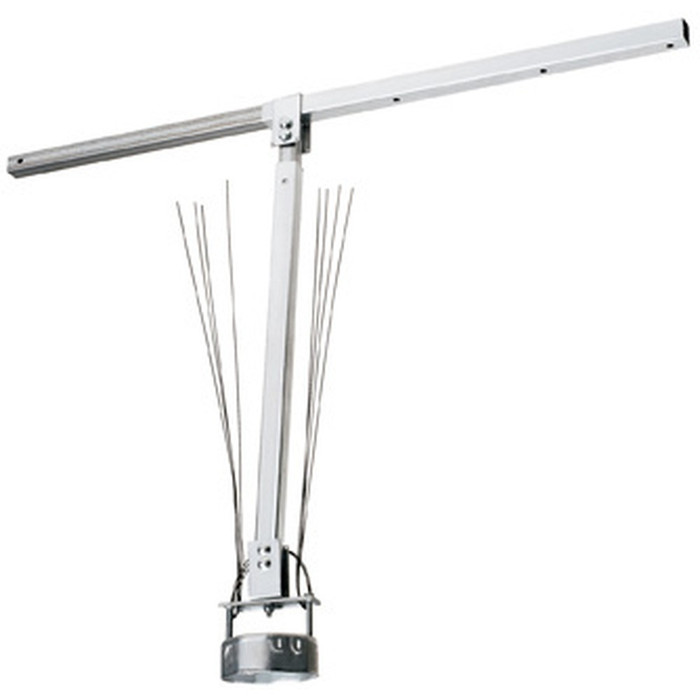

Pass & Seymour Reiker Drop Ceiling Fan & Fixture Support Box

Pass & Seymour Reiker Drop Ceiling Fan & Fixture Support Box

The Pass & Seymour Reiker Drop Ceiling Support is a UL listed electrical box engineered for direct joist-mount fan and fixture support in drop ceiling applications. Built from Cold Rolled Steel with a 16 cubic inch volume and 1.5" depth, it features a single #10 support designed for 24-36" spans with a 38" drop, and is rated up to 70 pounds for ceiling fans and 150 pounds for light fixtures at a 16" span. Supplied complete with hardware and a pre-installed ground screw, this box is built for fast, code-compliant installation in commercial and residential ceiling systems.

Key Features

• Support Span: Single #10 support accommodates 24-36" spans with a 38" drop for flexible joist placement.
• Durable Construction: Cold Rolled Steel body resists deformation under sustained load for long-term reliability.
• Direct Mount to Joist: Simplifies installation without additional bracing hardware.
• Weight Rating: Rated up to 70 pounds for fans and 150 pounds for fixtures at a 16" span, covering the broadest range of ceiling-mounted loads.
• 16 Cubic Inch Volume: Compact 1.5" depth box fits shallow drop-ceiling cavities while meeting box-fill requirements.
• Ground Screw Pre-Installed: Speeds grounding termination during rough-in.
• Top Knockouts: Included for straightforward conduit and cable entry.
• Peel-Off Tape: Enables "hands-free" installation, holding the box in place while the installer secures mounting hardware.

Certifications & Compliance

• UL Listed for fan and fixture support

Technical Specifications

• Material: Cold Rolled Steel
• Product Line: Pass & Seymour
• Country of Origin: China
• Packaging: 6 EA
• Depth: 1.5"
• Volume: 16 cubic inch

Typical Applications

• Drop Ceiling Fan Installations
• Light Fixture Mounting in Suspended Ceilings
• Commercial Office and Retail Ceiling Systems
• Residential Ceiling Fan Retrofits
• New Construction Joist-Mounted Electrical Boxes

Why Pass & Seymour?

Pass & Seymour's Reiker line of drop ceiling supports delivers UL listed, code-compliant fan and fixture mounting backed by durable Cold Rolled Steel construction and thoughtful installation features like a pre-installed ground screw and peel-off mounting tape. With rated capacities up to 70 pounds for fans and 150 pounds for fixtures, this support box is built for reliable, long-term performance in professional electrical installations.
