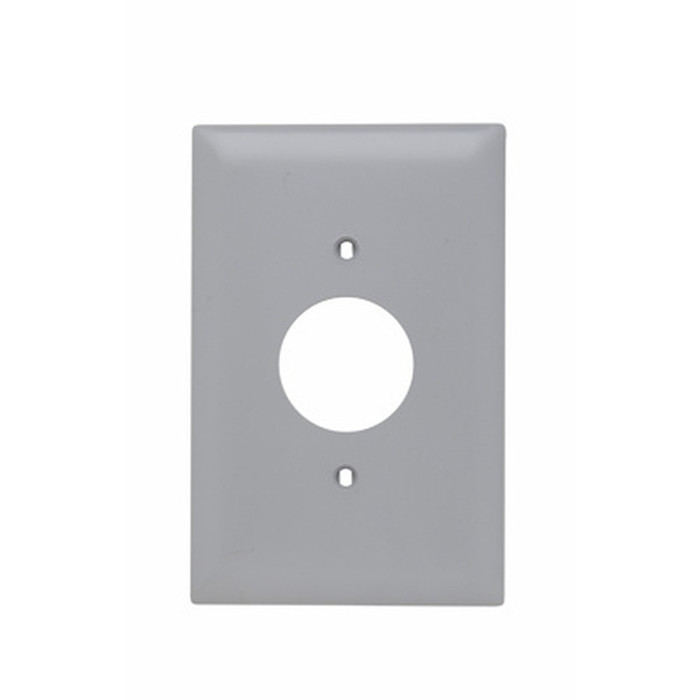

Pass & Seymour TradeMaster Jumbo 1-Gang Nylon Single-Receptacle Wall Plate

Pass & Seymour TradeMaster Jumbo 1-Gang Nylon Single-Receptacle Wall Plate

(No reviews yet) Write a Review

Model: TPJ7-GRY

In Stock (leaves warehouse same day if ordered before 3pm ET)

$2.10
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour TradeMaster Jumbo 1-Gang Nylon Wall Plate, Single Receptacle Opening

The Pass & Seymour TradeMaster Jumbo 1-Gang Nylon Wall Plate delivers a durable, single receptacle opening cover engineered for demanding commercial and institutional environments. Molded of rugged, practically indestructible self-extinguishing nylon in the 'TP' series, this Jumbo-size plate measures a nominal .070 inch thick and offers an extra 3/16 inch of width and height over Standard-size plates for better coverage on rough or oversized openings. Finished in Matte Gray and cULus Listed, it is built for hospital, industrial, institutional, and other high-abuse applications where standard-duty plates fall short.

Key Features

  • Jumbo Sizing: 'TP' series construction adds an extra 3/16 inch of width and height versus Standard-size plates for greater coverage over rough-in openings and imperfect wall cutouts.
  • Rugged Nylon Construction: Molded of practically indestructible, self-extinguishing nylon that withstands repeated impact, cleaning chemicals, and heavy-traffic use.
  • Nominal Thickness: .070 inch nominal thickness for a solid, substantial feel and long-term durability at the wall.
  • Single Receptacle Opening: Configured for 1-Gang single receptacle device installations for a clean, finished appearance.
  • Matte Gray Finish: Clean Matte Gray finish suited to commercial, institutional, and industrial interiors.
  • High-Abuse Rated: Preferred for hospital, industrial, institutional, and other high-abuse applications where standard plates fall short.

Certifications & Compliance

  • cULus Listed

Technical Specifications

  • Finish: Matte
  • Product Line: Pass & Seymour
  • Color: Gray
  • Material: Nylon
  • Country of Origin: Mexico
  • Packaging: 20 EA

Typical Applications

  • Hospital and Healthcare Facilities
  • Industrial Plants and Manufacturing Sites
  • Institutional and Educational Buildings
  • High-Abuse Commercial Environments
  • Renovation and New Construction Wiring Device Installations

Why Pass & Seymour?

Pass & Seymour builds the TradeMaster line from rugged, self-extinguishing nylon and backs it with cULus Listing, giving electrical contractors and facility managers a wall plate that holds up to hospital, industrial, and institutional wear year after year. The Jumbo sizing and Matte Gray finish make it a dependable, code-compliant choice for demanding professional installations that require more than a standard-size plate can offer.

Product Specs

Product Material:
Nylon
Listing:
cULus
Department:
Electrical
Product Finish:
Matte
Product Group:
Wiring Devices
Product Type:
Single Receptacle Wallplate
Product Subgroup:
Wallplates
Product Height:
5.062 in
Product Depth:
0.25 in
Product Width:
3.312 in

Pass & Seymour TPJ7-GRY – Frequently Asked Questions

1) Will a jumbo wall plate cover the oversized cutout left by the old plate?
That is what the TradeMaster TPJ7 jumbo plate is for. It runs an extra 3/16 inch of width and height over a standard-size plate, so it hides rough drywall cuts and overcut boxes a standard plate leaves showing. Overall size is 5.062 inches by 3.312 inches, with a 0.25 inch depth at the wall.
2) Does the TPJ7 fit a duplex receptacle or a single round receptacle?
It is a single receptacle opening, not a duplex. The TPJ7 has one round single-receptacle cutout for a 1-gang single receptacle device. If your device is a standard duplex outlet with two plug faces, you need a duplex-opening jumbo plate instead, not this one.
3) Should I use nylon or stainless steel for a high-abuse receptacle plate?
Nylon like the TradeMaster TPJ7 gives you impact resistance, chemical cleanability, and a color match to ivory, white, or gray devices, and it insulates. Go stainless when you want metal in the finish or you are covering a power receptacle: the Mulberry 97221T08 is a 430 stainless plate for a 30/50-amp 3-wire receptacle, and the 97223T08 is the 2-gang version for 30/50/60-amp receptacles. The TPJ7 is sized for a standard 1-gang single receptacle device, not those larger power configurations.
4) Will the TPJ7 cover a twist lock receptacle?
No. The TPJ7 is configured for a 1-gang single receptacle device opening and measures 5.062 inches high by 3.312 inches wide. For a locking device, the Mulberry 97778 is a 2-gang 430 stainless steel twist lock receptacle wallplate, which is the plate matched to that device pattern.
5) What should I use instead of the TradeMaster TPJ7 jumbo plate on a 30-amp or 50-amp dryer or range receptacle?
The TPJ7 is a 1-gang single receptacle wallplate in nylon, sized for a standard single receptacle opening, so it will not cover a large-amperage power receptacle. For a 30/50-amp 3-wire receptacle, the Mulberry 97221T08 is a 430 stainless steel wallplate cut specifically for that device. If the opening carries two large receptacles, the Mulberry 97223T08 is a 2-gang 430 stainless plate for 30/50/60-amp receptacles.
6) What colors does the Pass & Seymour TPJ7 jumbo plate come in?
Three: gray (TPJ7-GRY), ivory (TPJ7-I), and white (TPJ7-W). All three are the same nylon jumbo plate with a matte finish, so you can match whichever device color is already running through the building.
7) Is nylon tough enough for a hospital corridor or a plant floor?
Nylon is the reason this plate gets specified for those spaces. The TradeMaster TP series is molded of self-extinguishing nylon that takes repeated impact and cleaning chemicals, at a nominal .070 inch thickness. It is the line used for hospital, industrial, and institutional high-abuse work where a standard-duty thermoplastic plate cracks.
8) Is this wall plate UL listed for commercial work?
The TPJ7 is cULus Listed, which covers both US and Canadian requirements, so it is acceptable on commercial and institutional jobs in either market.
9) Is there a metal version of a single receptacle wall plate if nylon is not accepted on the job?
The Pass & Seymour TradeMaster TPJ7 is molded nylon with a matte finish, so where a specification calls for metal the Mulberry plates are the stainless alternative: the 97221T08 and 97223T08 are both 430 stainless steel, as is the 97778. Note that none of those three is a standard single receptacle cover - they are cut for 30/50/60-amp and twist lock devices - so confirm the device opening before substituting.
10) For a hospital corridor, how does the nylon TradeMaster jumbo plate compare with a stainless steel plate?
The TPJ7 is self-extinguishing nylon, cULus Listed, with jumbo sizing that adds an extra 3/16 inch of width and height over standard plates to cover rough or oversized cutouts, and it comes in gray, ivory, and white to match existing device colors. The Mulberry stainless options, such as the 97223T08 in 430 stainless, give a metal face in a brushed stainless appearance but are cut for large-amperage receptacles rather than standard devices, and stainless plates are sized to standard dimensions rather than jumbo.
11) How does the TPJ7 ship for a large standardization order?
Packaged 20 each per carton, which is how facility and MRO buyers usually pick it up when standardizing a floor or a wing on one plate style. All three colors are the same TP series jumbo plate, made in Mexico.
