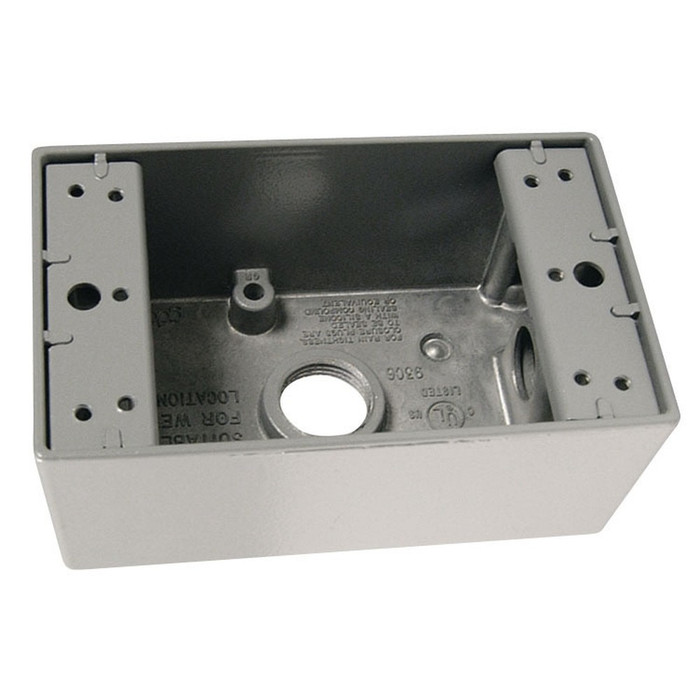

Pass & Seymour WPB23 1-Gang 3-Hole Weatherproof Box, Die-Cast Aluminum

Pass & Seymour WPB23 1-Gang 3-Hole Weatherproof Box, Die-Cast Aluminum

(No reviews yet) Write a Review

Model: WPB23

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.93
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pass & Seymour WPB23 1-Gang 3-Hole Weatherproof Box, Die-Cast Aluminum

The Pass & Seymour WPB23 is a 1-gang, 3-hole weatherproof outlet box built for demanding indoor and outdoor electrical installations. Constructed of heavy die-cast aluminum with 18.5 Cu. In. of interior capacity, this box features one hole on each end and one hole in the back for flexible conduit entry. UL Listed and CSA Listed for wet and/or damp locations when installed with an appropriate cover, it is engineered to hold up in tough exterior environments while accepting standard 4-screw mounting covers and single-gang weatherproof covers.

Key Features

  • 3-Hole Configuration: One hole on each end and one hole in the back for versatile conduit routing.
  • Durable Construction: Heavy die-cast aluminum body resists impact and corrosion in exterior applications.
  • Interior Capacity: 18.5 Cu. In. of usable box volume for device and wiring space.
  • Corrosion-Resistant Finish: Baked-on electrostatic, polyester, powder paint for superior scratch and corrosion resistance.
  • Included Hardware: 2 closure plugs and mounting lugs furnished with every box.
  • Cover Compatibility: Accepts standard 4-screw mounting covers and single-gang weatherproof covers.
  • Easy Installation: Strike the desired knockout studs with a sharp hammer blow for clean, precise mounting holes.
  • Indoor/Outdoor Rated: Designed for both interior and exterior applications.

Certifications & Compliance

  • UL Listed for wet and/or damp locations with appropriate cover
  • CSA Listed

Technical Specifications

  • Material: Die-Cast Aluminum
  • Color: Gray
  • Product Line: Pass & Seymour
  • Country of Origin: India
  • Interior Capacity: 18.5 Cu. In.
  • Packaging: 12 EA

Typical Applications

  • Outdoor and Wet-Location Electrical Installations
  • Weatherproof Receptacle and Switch Housings
  • Commercial and Residential Exterior Wiring
  • Conduit and Raceway Entry Points
  • New Construction and Renovation Projects

Why Pass & Seymour?

Pass & Seymour builds the WPB23 from heavy die-cast aluminum with a baked-on electrostatic powder paint finish, giving installers a weatherproof box that resists scratching and corrosion through years of outdoor exposure. Backed by UL and CSA Listings for wet and/or damp locations, it delivers the code-compliant reliability professional electricians expect from Pass & Seymour, part of the Legrand family of electrical brands.

Manufacturer Resources

Spec Sheet

Product Specs

list_batch:
PASS-20260820
Product Type:
Weatherproof Box
Product Finish:
Powder-Coated
Listing:
UL Listed
Standards:
CSA Listed
Product Material:
Die-Cast Aluminum
Product Color:
Gray
Department:
Electrical
Product Group:
Boxes & Enclosures
Product Subgroup:
Weatherproof Enclosures

Pass & Seymour WPB23 – Frequently Asked Questions

1) Is the Pass & Seymour WPB23 weatherproof box rated for outdoor wet locations?
The WPB23 is UL Listed and CSA Listed for wet and/or damp locations, but only when it is installed with an appropriate cover. The box alone does not make the installation weatherproof; you need a matching single-gang weatherproof cover or a 4-screw mounting cover to close it out. It's suitable for both interior and exterior use.
2) Where are the conduit holes on the WPB23 1-gang box?
Three holes: one on each end and one in the back. That lets you feed conduit straight through end to end for a run, or come in from behind when you are surface mounting against a wall. Two closure plugs ship with the box so any hole you don't use gets sealed.
3) How much wiring volume does the WPB23 box give me for a GFCI receptacle?
Interior capacity is 18.5 cubic inches. That is the number you use for NEC box fill calculations, and you have to count the device, conductors, grounds and clamps against it. For a single GFCI plus a couple of 12 AWG circuit conductors and grounds it is generous; stuffing a feed-through plus a splice gets tight.
4) What covers fit the Pass & Seymour WPB23?
It takes standard 4-screw mounting covers and single-gang weatherproof covers. The cover is a separate purchase and it is what determines your location rating, so pick it for the device going in: a flip-lid or in-use (extra duty) cover for a receptacle, a lever or toggle cover for a switch, a blank cover for a junction point.
5) What weatherproof box should I use if the opening needs three devices instead of one?
The Pass & Seymour WPB23 is a 1-gang die-cast aluminum weatherproof box with 18.5 cubic inches of interior capacity, so it houses a single device. For a three-device exterior opening, the Mulberry 30601 is a 3-gang powdered die-cast aluminum weatherproof outlet box in the Royal Mountie series. Both are die-cast aluminum bodies intended for outdoor boxes; the difference is gang count, which also changes the cover you order, since the WPB23 takes standard 4-screw mounting covers and single-gang weatherproof covers.
6) Will a die-cast aluminum box like the WPB23 hold up on a coastal or corrosive exterior wall?
The body is heavy die-cast aluminum with a baked-on electrostatic polyester powder paint finish, gray, which is there for scratch and corrosion resistance in exterior exposure. Aluminum also avoids the rust-through you get at damaged paint on a steel box. For a parking structure, exterior lighting feed or an equipment yard it's the usual choice.
7) Do I need separate brackets to mount the WPB23, and how do I open the holes?
Mounting lugs come with every box, along with two closure plugs, so no separate bracket is needed for surface mounting. The hole openings are knockout studs: hit the one you want with a sharp hammer blow and it breaks out clean. Open only what you intend to use and plug the rest, since an open hole defeats the wet-location rating.
8) For a wet-location receptacle on a building exterior, which die-cast box carries the listings I need on the inspection?
The Pass & Seymour WPB23 is UL Listed and CSA Listed for wet and/or damp locations when installed with an appropriate cover, and its heavy die-cast aluminum body carries a baked-on electrostatic polyester powder paint finish for corrosion resistance. The comparable Mulberry 30601 is also a powdered die-cast aluminum weatherproof outlet box, but it is a 3-gang enclosure, so for a single exterior receptacle the WPB23 is the matching size.
9) How does the WPB23 weatherproof box come packaged for a multi-unit job?
Standard packaging is 12 each per carton, which works out well when you are doing a run of exterior receptacles across a property or roughing in multiple units. Each box in the carton includes its own closure plugs and mounting lugs.
10) Can the WPB23 be used indoors, or is it outdoor only?
Both. It's built for interior and exterior applications, so the same box works for a damp indoor spot like a mechanical room, car wash bay or walk-in cooler wall as it does on an exterior wall. Indoors you still pair it with an appropriate cover for the location rating you need.
