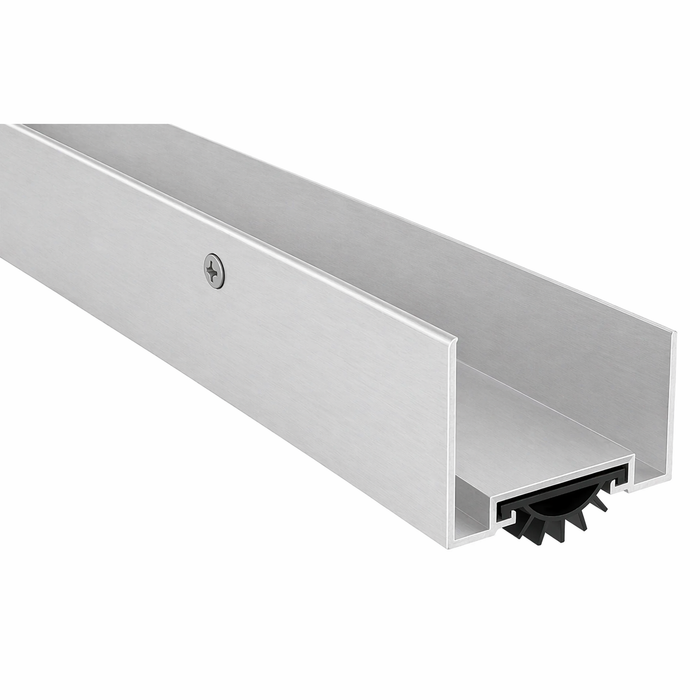

Pemko 222 Aluminum Door Shoe with Eco-V Insert - Commercial Door Bottom Sealing Solution

Pemko 222 Aluminum Door Shoe with Eco-V Insert - Commercial Door Bottom Sealing Solution

(No reviews yet) Write a Review

Model: 222DV 36
$48.75
$41.87
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$48.75
$41.87
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko 222 Aluminum Door Shoe with Eco-V Insert - Commercial Door Bottom Sealing Solution

Professional Door Bottom Sealing Solution

The Pemko 222 Door Shoe provides comprehensive door bottom sealing for commercial applications with 36"; length and durable aluminum construction. This professional-grade door shoe features dual insert compatibility including Eco-V insert (item number EV9) available in gray, black, or white, or PemkoPrene insert for versatile sealing performance. Certified to BHMA A156.21 with UL10C fire rating and UL1784 smoke testing, this door shoe delivers reliable environmental control for demanding commercial installations.

Professional Features & Benefits

  • Professional Dimensions: 36"; length with 1-1/3"; height and 1-5/8"; width designed for standard commercial door applications.
  • Dual Insert System: Compatible with Eco-V insert (EV9) in gray, black, or white, or PemkoPrene insert for customized sealing performance and aesthetic coordination.
  • Durable Aluminum Construction: Aluminum substrate provides long-lasting performance and corrosion resistance in demanding commercial environments.
  • Comprehensive Certifications: BHMA A156.21 certified with UL10C fire rating, UL1784 smoke testing, and GREENGUARD Gold certification for superior performance and indoor air quality.
  • Multi-Performance Testing: Air infiltration tested, sound tested to ASTM E90, and Underwriters Laboratory 4L10 certified for comprehensive environmental control.
  • Fire and Smoke Rated: UL10C positive pressure fire rating and UL1784 smoke testing ensure code compliance for fire-rated door assemblies.
  • Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection in commercial installations.
  • Compatible Accessories: Optional Eco-V insert (EV9) available in multiple colors for extended configuration options.

Technical Specifications

  • ANSI/BHMA: ANSI/BHMA A156.21, Fire Rated - UL10C, Smoke Tested - UL1784, Underwriters Laboratory 4L10, GREENGUARD Gold Certified
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Insert Type: Eco-V Insert or PemkoPrene Insert
  • Product Category: Door Trim and Accessories
  • Product Dimension: H: 1-1/3", W: 1-5/8";
  • Product Function: Door Bottom Shoe
  • Product Group: Door Trim and Accessories
  • Product Length: 36";
  • Product Model: 222
  • Product Subgroup: Door Bottom Sweeps and Door Shoes
  • Product Substrate: Aluminum
  • Product Type: Door Shoes
  • Subcategory: Door Bottoms & Door Shoes
  • Warranty: 5 Year

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Pemko Quality?

Pemko 222 Door Shoes deliver professional-grade environmental control with aluminum construction and comprehensive certification including BHMA A156.21, UL10C fire rating, and GREENGUARD Gold certification. 5 Year warranty coverage provides added confidence for demanding commercial applications where reliable sealing performance and code compliance are essential.

Product Specs

Insert Type:
Eco-V Insert or PemkoPrene Insert
Warranty:
5 Year
Subcategory:
Door Bottoms & Door Shoes
Product Group:
Door Trim and Accessories
Product Subgroup:
Door Bottom Sweeps and Door Shoes
Product Type:
Door Shoes
ANSI/BHMA:
ANSI/BHMA A156.21, Fire Rated - UL10C, Smoke Tested - UL1784, Underwriters Laboratory 4L10, GREENGUARD Gold Certified
Commercial/Residential:
Commercial
Product Model:
222
Product Function:
Door Bottom Shoe
Product Length:
36"
Product Dimension:
H: 1-1/3", W: 1-5/8"
Product Category:
Door Trim and Accessories
Product Substrate:
Aluminum
Department:
Door Hardware

Pemko 222DV 36 – Frequently Asked Questions

1) I am replacing worn door bottoms across a building. Can I just replace the seal instead of the whole Pemko 222 shoe?
That is the point of the 222 design. The aluminum extrusion stays on the door and the seal is a replaceable insert, either the Eco-V insert, item EV9, or PemkoPrene. When the seal wears out on a high traffic opening you order inserts, not new shoes. If you are standardizing a fleet of doors, spec one insert type and one finish across the building so your maintenance stock is a single line item.
2) I need a door shoe for an unheated warehouse dock door that swings through freezing winters and summer heat. Is a Pemko 222 the right pick or is there something better suited?
For a stated temperature range, the NGP 112 neoprene door shoe is the one that publishes it: aluminum alloy construction with a rated temperature range of -20 F to 200 F. The Pemko 222 is an aluminum door shoe rated for commercial use with A156.21 certification and a UL10C fire rating, so it is the choice when the dock opening is part of a fire-rated assembly. On a non-rated exterior opening where thermal swing is the governing condition, the NGP 112 speaks directly to it.
3) What is the closest equivalent to a Pemko 222 door shoe if I need an aluminum shoe with a vinyl insert?
The Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert, the same basic part type as the Pemko 222 aluminum door shoe with its Eco-V or PemkoPrene insert. Both mount to the bottom of the door face and carry a replaceable seal element rather than being a surface-applied sweep. Where the two differ is in what the record carries on the Pemko: the 222 is certified to ANSI/BHMA A156.21, fire rated UL10C, smoke tested to UL1784, Underwriters Laboratory 4L10, and GREENGUARD Gold certified. If the opening is a fire-rated assembly or the facility spec calls out A156.21, the 222 is the one that answers it on paper.
4) My spec sheet calls for a smoke-rated door bottom on a stairwell door. Which of these door shoes meets that?
The Pemko 222 is the one carrying smoke testing to UL1784, along with UL10C positive pressure fire rating, ANSI/BHMA A156.21, and Underwriters Laboratory 4L10. Among the comparable door shoes, the Cal-Royal DS-403 is an aluminum door shoe with a vinyl insert and the NGP 112 is a neoprene door shoe in aluminum alloy; they are door bottom shoes of the same family but the certification language a stairwell submittal needs is what the 222 carries. Order the 222 in the length that matches the door width, 36 inch or 48 inch, in mill finish or dark bronze anodized aluminum.
5) What is a cheaper alternative to the Pemko 222 door shoe if my door is not fire rated?
For a non rated opening, the Cal-Royal DS-403 aluminum door shoe with vinyl insert is the closest straight equivalent in form, an aluminum shoe with a replaceable insert. The NGP 12T thermoplastic door shoe uses a mill aluminum base with vinyl fins, which is a good match where you want fins riding a rough or uneven floor rather than a single seal bulb. Neither of those is a substitute where a UL10C rating is required on the opening, which is where the 222 earns its place.
6) What is the difference between the Eco-V insert and the PemkoPrene insert on the Pemko 222?
Both are seal inserts that drop into the same aluminum 222 extrusion, and you pick one when you order. Eco-V is the item EV9 insert, offered in gray, black or white so you can match the door bottom or the threshold visually. PemkoPrene is the alternative sealing material for the same shoe. Every length and finish combination of the 222 is orderable with either insert, so the choice does not restrict your size or finish.
7) Should I use a door shoe or a surface mounted door sweep on the bottom of my door?
A door shoe like the Pemko 222 wraps the bottom edge of the door, so the aluminum extrusion carries the seal under the door and the insert rides on the threshold or floor. That gives you a fire and smoke rated seal, UL10C and UL1784, that a surface applied sweep screwed to the face of the door generally will not. The tradeoff is installation: the shoe needs the door off the hinges or at least the bottom edge accessible, and it adds 1-1/3 inches of height at the bottom rail. If the door has to stay hung and the opening is not rated, a face mounted sweep is the faster job.
8) I need a door bottom seal for an indoor air quality or green building spec. Does the Pemko 222 qualify?
GREENGUARD Gold certified, which is the low emissions certification specifiers look for on schools and healthcare projects. It is also sound tested to ASTM E90 and air infiltration tested, so it carries data for acoustic and energy sections of a spec as well as the fire section.
9) What do I need to specify when ordering a Pemko 222 door shoe?
Three choices on the order: length, 36 inch or 48 inch; finish, mill finish aluminum or dark bronze anodized aluminum; and insert, Eco-V or PemkoPrene. All eight combinations of those are orderable. If you go Eco-V, the insert itself, EV9, comes in gray, black or white.
10) What is the difference between a Pemko 222 and an NGP 12T door shoe? They look like the same part.
They are both door bottom shoes, but the sealing element differs. The NGP 12T is a thermoplastic door shoe with a mill aluminum base and vinyl fins, so the seal is a finned vinyl profile. The Pemko 222 uses an aluminum substrate with either an Eco-V insert or a PemkoPrene insert, an insert that drops into the shoe extrusion and is replaced on its own. If you are matching an existing set of doors, look at whether the shoe on the door has fins or a removable insert channel before ordering either one.
11) Is the Cal-Royal DS-403 a drop-in replacement for a Pemko 222 insert?
No. The DS-403 is a complete aluminum door shoe with a vinyl insert, not a loose seal element, so it replaces the whole shoe rather than the seal inside a 222. The Pemko 222 takes either an Eco-V insert or a PemkoPrene insert in its own extrusion. If the aluminum extrusion on the door is sound and only the seal is worn, stay within the 222 insert options; if the extrusion itself is damaged, then you are shopping whole shoes and the DS-403 becomes a real alternative.
12) I am standardizing door bottoms across a hospital and want one part number on every opening. Which door shoe supports that?
The Pemko 222 covers a wide sweep of openings from one model: 36 inch and 48 inch lengths, mill finish aluminum or dark bronze anodized aluminum, and either the Eco-V or PemkoPrene insert, all on a 1-1/3 inch high by 1-5/8 inch wide aluminum profile certified to ANSI/BHMA A156.21 with UL10C fire rating, UL1784 smoke testing, and GREENGUARD Gold certification. That certification set is what lets the same model sit on both the rated corridor and stair doors and the non-rated ones. The comparable shoes are single-purpose picks by contrast: the NGP 12T is a thermoplastic shoe with vinyl fins, and the NGP 112 is a neoprene shoe rated -20 F to 200 F for exterior thermal swing.
13) Will an aluminum door shoe hold up on an exterior door in a parking garage or loading dock?
The 222 is an aluminum extrusion rated commercial, and aluminum is what holds up outdoors, it does not rust the way a steel shoe will. For exterior and wash down areas the dark bronze anodized version is the one to spec over mill finish, since the anodizing puts a harder finished surface on the extrusion. Both finishes come in 36 inch and 48 inch.
