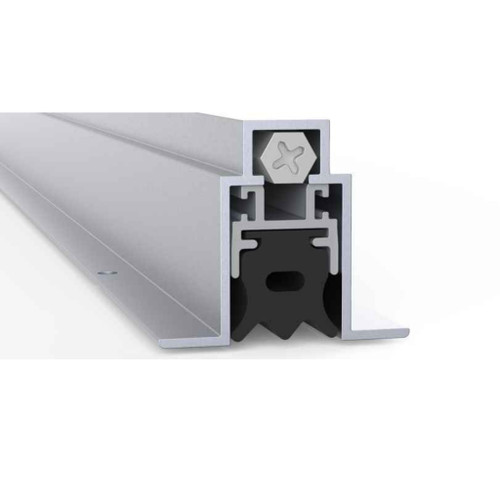

Pemko 434 Full Mortise Automatic Door Bottom with 1/2" Drop Seal - 30"-42" Length
Model: PMK-434
Pemko 434 Full Mortise Automatic Door BottomThe Pemko 434 is a full mortise automatic door bottom engineered for demanding commercial applications where fire rating, smoke control, sound attenuation,...
Pemko
Starting at
$131.40
$107.73
Pemko 412 Series Surface Mounted Automatic Door Bottom with EPDM Insert and Fire Rating
Model: PMK-412
Pemko 412 Series Surface Mounted Automatic Door Bottom with EPDM Insert and Fire RatingProfessional Automatic Door Sealing SolutionThe Pemko 412 Series Surface Mounted Automatic Door Bottom provides...
Pemko
Starting at
$89.46
$79.51

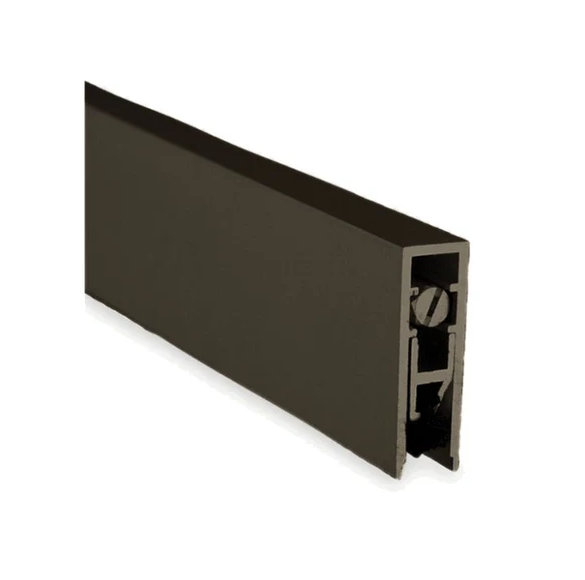

Pemko 4131 Automatic Door Bottom, Surface or Semi-Mortised Mount
The Pemko 4131 is a plunger-actuated automatic door bottom for wood or hollow metal commercial doors. When the door closes, the plunger contacts the strike jamb and drops the seal bar against the floor, closing gaps up to 3/4" without manual adjustment. The unit is reversible and non-handed. It mounts surface or semi-mortised and is available in clear anodized or dark bronze anodized aluminum in lengths from 24" to 48". Four insert types are available: Sponge Neoprene, PemkoPrene, Nylon Brush, and Sponge Silicone.
Certifications and Ratings
- Fire rated: UL10B and UL10C Positive Pressure
- Smoke tested: UL 1784, NFPA 105-2013
- Air infiltration tested: ASTM E-283-04
- Sound tested: ASTM E90
- BHMA certified: ANSI/BHMA A156.22
- GREENGUARD Gold certified
Key Features
- Seals gaps up to 3/4" under the door
- Plunger-actuated drop-bar mechanism for automatic operation
- Reversible, non-handed - no disassembly required to change handing
- Surface or semi-mortised mounting
- End plates included for all mounting configurations
- Stock lengths can be trimmed up to 2" in the field
- Aluminum housing in clear anodized or dark bronze anodized finish
Applications
- Commercial office, healthcare, education, government, and multi-family buildings
- Fire-rated and smoke-rated door assemblies
- Wood or hollow metal door frames
Warranty
5-year manufacturer warranty.
Manufacturer Resources
Pemko/Markar Products Full Line Catalog
Product Specs
- Features:
- Seals to Keep Out Draft, Dust, Moisture, Insects, Fumes, Light, Sound
- Application:
- Wood or Hollow Metal Doors
- Warranty:
- 5 Year
- Product Group:
- Door Trim and Accessories
- Product Subgroup:
- Door Bottom Sweeps and Door Shoes
- Product Type:
- Automatic Door Bottoms
- Subcategory:
- Door Bottoms & Door Shoes
- ANSI/BHMA:
- Air Infiltration Tested ASTM E-283-04, Sound Tested ASTM E90, BHMA Certified ANSI/BHMA A156.22, Smoke Tested UL 1784, NFPA 105-2013, Fire Rated UL10B, UL10C Positive Pressure
- Commercial/Residential:
- Commercial
- Product Model:
- 4131
- Product Dimension:
- L: 24"-48" (cut-to-fit), W: 19/32", H: 1-27/32"
- Product Category:
- Door Trim and Accessories
- Product Substrate:
- Aluminum
- Department:
- Door Hardware
Pemko 4131CRL 36 – Frequently Asked Questions
1) How big a gap under the door will the Pemko 4131 automatic door bottom actually close?
Up to 3/4 inch. The 4131 is plunger actuated: as the door swings shut the plunger hits the strike jamb and drives the seal bar down against the floor, so it takes up an undercut of 3/4 inch or less without anyone adjusting it. Measure from the bottom of the door to the finished floor at the worst point along the swing, not at the hinge edge. If that reading is over 3/4 inch, the 4131 will not reach the floor and you need to fix the gap with a threshold or a taller door bottom instead. Where the floor covering changes across the swing (tile to carpet, for example), measure over the carpet, since that is where the seal has to close.
2) Does the 4131 automatic door bottom mount on the face of the door or does it have to be routed in?
Either way. The 4131 takes a surface mount, screwed to the face of the door at the bottom rail, or a semi mortised mount where the housing sits partly recessed into the door bottom for a flatter look. End plates come with the unit for all mounting configurations, so you are not ordering a separate kit depending on which way you go. The aluminum housing is 19/32 inch wide and 1-27/32 inch high, which is the section you have to clear on the face of the door or rout for on a semi mortised install. Surface mounting is the quicker retrofit on an existing door because it needs no machining of the door itself.
3) Will an automatic door bottom like the Pemko 4131 work on a pair of doors with no mullion?
Think about what the plunger has to hit. The 4131 drops its seal when the plunger contacts the strike jamb as the door closes, so it needs something solid at the strike edge to push against. On a single door in a frame, that is the jamb and it works. On a pair with no mullion, the leading edge of the active leaf closes against the inactive leaf or its astragal rather than a jamb, so before ordering, confirm the plunger will land on a fixed surface at the right height. If there is nothing there for it to contact, the seal bar never drops and the unit does nothing.
4) Do I have to specify left hand or right hand when ordering a Pemko 4131 door bottom?
No handing to specify. The 4131 is reversible and non handed, and the handing is changed without taking the unit apart, so one part number covers a left hand and a right hand opening. For a property manager buying for a run of doors that swing both ways down a corridor, that means a single stocked length and insert covers all of them. What you do have to get right on the order is length, finish and insert type.
5) Will the Pemko 4131 meet a smoke barrier door spec for a hospital or school corridor?
The testing behind the 4131 is what a smoke partition spec usually calls for: smoke tested to UL 1784 and NFPA 105-2013, BHMA certified to ANSI/BHMA A156.22, air infiltration tested to ASTM E-283-04 and sound tested to ASTM E90. It is also GREENGUARD Gold certified, which is the one that tends to matter on school and healthcare projects with indoor air quality requirements. Check those designations against the ones written on your door hardware schedule, and note that a smoke rated assembly needs perimeter gasketing at the head and jambs as well, not the door bottom alone.
6) Does the Pemko 4131 work on hollow metal doors or only wood?
Both. The 4131 is specified for wood or hollow metal commercial doors, which covers the two door types you find in most office, healthcare, education, government and multi family buildings. The mounting method does not change with the door material, though on hollow metal you are fastening into the door skin or the bottom channel, so plan the fastener accordingly. It is a commercial grade unit rather than a residential one.
7) What are the insert choices on the Pemko 4131 automatic door bottom and does the insert change the mounting?
Four inserts are offered: Sponge Neoprene, PemkoPrene, Nylon Brush and Sponge Silicone. The insert is the seal that meets the floor when the plunger drives the bar down, so it is the wear part and the one you replace over time. Mounting does not change with the insert; the aluminum housing still goes on surface or semi mortised and the unit still closes gaps up to 3/4 inch. Pick your insert, your length and your finish, and that is the whole order. If you are standardizing across a building, keeping one insert type across all the openings makes future replacement simpler.
8) Should I use a surface applied automatic door bottom or a fully mortised one?
The 4131 is the surface or semi mortised type, and that is the one to reach for on an existing door: surface mounting needs no machining, and semi mortising only takes a shallow recess for a 19/32 inch wide, 1-27/32 inch high housing. A fully mortised automatic door bottom disappears into a channel routed the length of the door bottom, which looks cleaner and protects the unit from abuse, but it means routing the door, and on a labeled fire door that machining has to be permitted by the door's listing. For retrofit work across an occupied building, the surface or semi mortised approach is the practical one because the doors stay hung.
9) What finishes does the Pemko 4131 come in for matching existing door hardware?
Two: clear anodized aluminum and dark bronze anodized aluminum. Clear anodized reads as a natural aluminum and blends with aluminum storefront and most brushed hardware; dark bronze anodized is the match for bronze frames and dark trim. Both are anodized aluminum, not painted, so the color is in the surface and will not chip off the way a coating does at the door bottom, which is the part of the door that takes the most abuse from carts and feet.
10) Will an automatic door bottom cut down the noise and drafts coming under my office doors?
That is what the 4131 is for. Sealing the underside of the door blocks draft, dust, moisture, insects, fumes, light and sound, and the unit has been air infiltration tested to ASTM E-283-04 and sound tested to ASTM E90. It only seals when the door is closed, since the plunger releases and the bar lifts on opening, so it does not drag on the floor or the carpet in normal traffic. One caveat worth setting expectations on: the door bottom handles the gap at the floor only. If sound or light is also coming through the head and jamb gaps, you need perimeter gasketing on those to get the full result.
