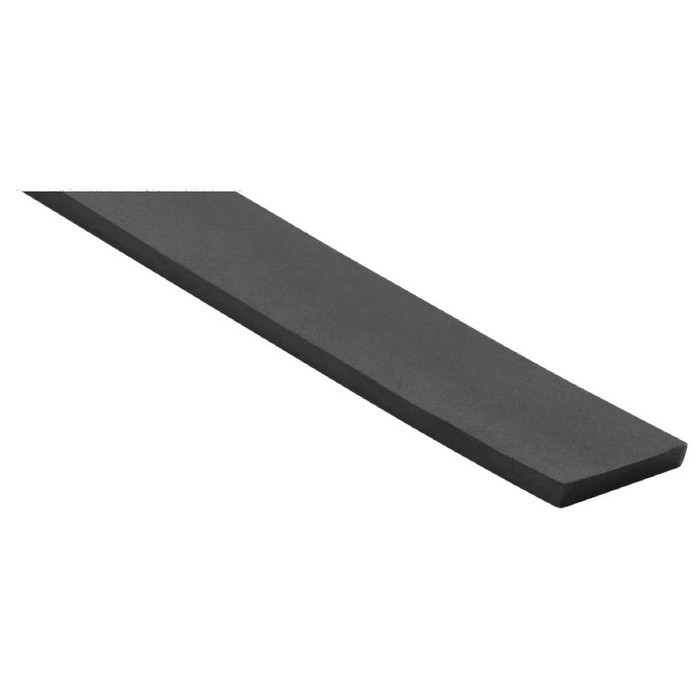

Pemko Pemko 5110 120" Adhesive-Backed Mullion Gasketing in Black Neoprene 5110BL-120

Pemko 5110BL Self-Adhesive Astragal Mullion Gasketing 120" Black Neoprene with ANSI Compliance

(No reviews yet) Write a Review

Model: 5110BL-120-12
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$33.42
$28.37
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko Self-Adhesive Astragal Mullion Gasketing 120"; Black Neoprene with ANSI Compliance

Professional Self-Adhesive Astragal Gasketing Solution

The Pemko Self-Adhesive Astragal provides reliable mullion gasketing for commercial door applications with 120"; length coverage and 1-1/8"; width by 3/16"; height dimensions. This black neoprene gasket features convenient adhesive backing for easy installation and meets ANSI R0C004 specifications with BHMA certification and UL fire ratings. Engineered for durability and weather resistance, this astragal gasketing delivers professional-grade sealing performance for double door configurations in demanding commercial environments.

Professional Features & Benefits

  • Extended Length Coverage: 120"; length with 1-1/8"; width and 3/16"; height provides sufficient material for most standard commercial door applications with minimal waste.
  • Durable Neoprene Construction: Black neoprene substrate material provides excellent weather resistance and long-term flexibility for reliable sealing performance.
  • Self-Adhesive Installation: Convenient adhesive backing eliminates the need for mechanical fasteners and simplifies installation process for efficient field application.
  • ANSI Compliance: Meets ANSI R0C004 specifications with BHMA certification ensuring compatibility with standard architectural requirements.
  • Fire Rating Certifications: UL10B negative pressure and UL10C positive pressure fire ratings provide code compliance for fire-rated door assemblies.
  • Mullion Gasketing Design: Specifically engineered for astragal applications providing effective sealing between double doors in commercial installations.
  • Manufacturer Warranty: 5 Year warranty coverage for added confidence and protection in commercial applications.

Technical Specifications

  • ANSI/BHMA: BHMA Certified, Fire Rated- UL10B- Negative Pressure, UL10C- Positive Pressure
  • Commercial/Residential: Commercial
  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Dimension: L: 120", W: 1-1/8", H: 3/16";
  • Product Group: Door Trim and Accessories
  • Product Model: 5110
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Substrate: Neoprene
  • Product Type: Gaskets
  • Subcategory: Gaskets & Weatherstripping
  • Warranty: 5 Year

Professional Applications

  • Commercial Office Buildings
  • Educational Facilities
  • Healthcare Institutions
  • Retail Establishments
  • Industrial and Warehouse Facilities
  • Multi-Tenant Residential Properties
  • Government and Municipal Buildings

Why Choose Pemko Quality?

Pemko astragal gasketing products deliver professional-grade reliability with durable neoprene construction and ANSI-compliant specifications including BHMA certification and UL fire ratings. 5 Year warranty coverage provides added confidence for commercial installations. Engineered for demanding commercial applications where dependable sealing performance is essential.

Product Specs

Warranty:
5 Year
Subcategory:
Gaskets & Weatherstripping
Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gaskets
ANSI/BHMA:
BHMA Certified, Fire Rated- UL10B- Negative Pressure, UL10C- Positive Pressure
Commercial/Residential:
Commercial
Product Model:
5110
Product Dimension:
L: 120", W: 1-1/8", H: 3/16"
Product Category:
Door Trim and Accessories
Product Substrate:
Neoprene
Department:
Door Hardware

Pemko 5110BL-120-12 – Frequently Asked Questions

1) Will Pemko 5110 mullion gasketing seal the gap between a pair of doors without a mullion?
That is exactly what the 5110 is for. It's an adhesive-backed astragal gasket that seals the meeting stiles of double doors, applied to the astragal or the edge of the inactive leaf. At 1-1/8 inches wide and 3/16 inch high, it takes up a small meeting-stile gap; it is a gasket, not a structural astragal, so if there is no astragal on the pair you still need one to carry it.
2) Can I use Pemko 5110 gasketing on a fire rated door pair?
Yes. The 5110 neoprene gasketing is BHMA certified and carries UL10B negative pressure and UL10C positive pressure fire ratings, so it can go on a fire rated assembly. It also meets ANSI R0C004.
3) Does Pemko 5110 astragal gasketing need screws, or is the adhesive enough?
No fasteners. The 5110 is self-adhesive, with the adhesive backing already on the neoprene, so it goes on with a clean, dry surface and hand pressure. That matters on a metal astragal you don't want to drill, and it means no fastener heads sitting in the meeting stile gap where they'd catch the other leaf.
4) Is neoprene gasketing the right choice for an exterior door pair, or should I use something else?
Neoprene is the substrate on the 5110, and it holds up to weather and stays flexible, which is why it's used on commercial exterior pairs. Where it earns its place is compression sealing at the meeting stile: it's a soft closed section that takes a set-and-recover squeeze rather than a wiping action. If the gap you're fighting is at the bottom of the door or along the frame rabbet, this is the wrong part; that's a door bottom or perimeter gasketing job.
5) What is the Pemko part number for 120 inch black astragal gasketing?
The model is Pemko 5110, ordered as 5110BL-120 for the black neoprene in the 120 inch length. BL is the black neoprene designation and 120 is the length in inches.
6) Is Pemko 5110 gasketing rated for commercial traffic or is it a residential weatherstrip?
Commercial. The 5110 is specified as a commercial product and is used in offices, schools, healthcare, retail, warehouse, multi-tenant residential, and government buildings. For a property manager standardizing across a portfolio, one part number covers the double-door openings in all of those building types.
