Pemko H200A Sliding Panel Track and Hardware System with 200 lb Capacity

Complete Hardware Solution for Single and Bi-Parting Sliding Panels

The Pemko H200A Track and Hardware Pack provides a comprehensive solution for sliding panel installations with clear anodized aluminum construction. This professional-grade system supports panels up to 200 lbs with door widths from 24"; to 72"; and thickness ranging from 1-3/8"; to 1-3/4";. The complete kit includes all necessary components for face mount, soffit mount, and face/soffit mount with fascia applications.

Professional Features & Benefits

  • Heavy-Duty Load Capacity: Supports sliding panels up to 200 lbs for reliable operation in commercial and residential applications.
  • Flexible Door Dimensions: Accommodates door widths from 24"; to 72"; and thickness from 1-3/8"; to 1-3/4"; for versatile installation options.
  • Durable Aluminum Construction: Clear anodized aluminum track (280C) provides corrosion resistance and smooth operation for long-term performance.

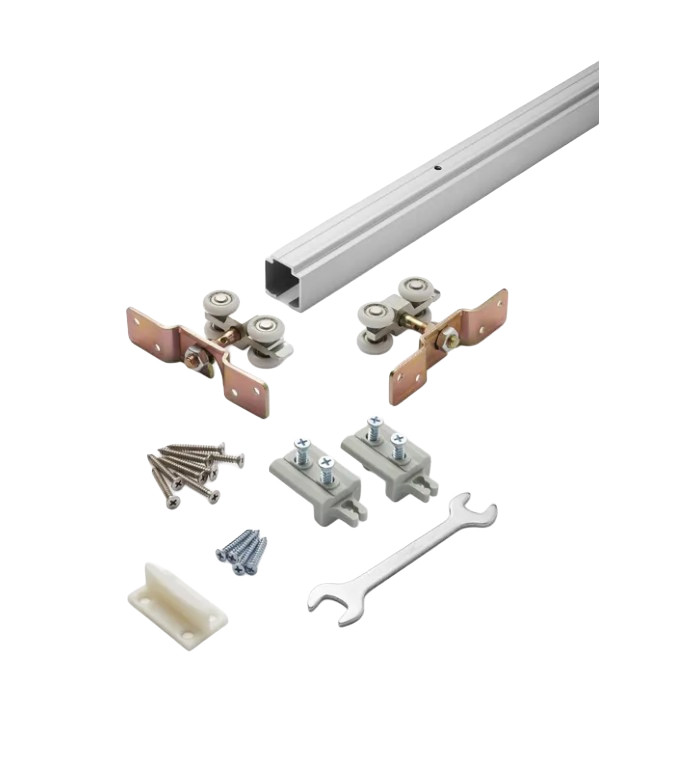

  • Complete Hardware Kit: Includes 280C track, H222R1 hangers (2), 102N nylon guide, TELS-14KIT stops (2), adjusting wrench, and mounting hardware for immediate installation.
  • Versatile Mounting Options: Supports face mount, soffit mount, and face/soffit mount with fascia configurations for various architectural requirements.
  • Panel Configuration Flexibility: Designed for both single and bi-parting sliding panel installations with track lengths from 4' to 12'.
  • Premium Wheel Components: Nylon coated zinc alloy wheels with nickel zinc plated alloy hangers ensure smooth, quiet operation.
  • Soft Close Option: Available soft close mechanism for new or retrofit applications enhances user experience and panel protection.

Technical Specifications

  • Department: Door Hardware
  • For Use With: Sliding Panels
  • Included Components: 280C Track (1), H222R1 Hangers (2), 102N Nylon Guide (1), TELS14 Stops (2) and an adjustable wrench and mounting hardware
  • Product Category: Sliding & Folding Hardware
  • Product Function: Part/Component
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Straight Sliding Systems
  • Product Type: Sliding Door Hardware
  • Series: H200A
  • Subcategory: Straight Sliding Systems

Professional Applications

  • Commercial Office Space Dividers
  • Residential Room Partitions
  • Retail Display and Storage Areas
  • Healthcare Facility Privacy Panels
  • Educational Institution Flexible Spaces
  • Industrial Facility Access Panels
  • Multi-Purpose Room Configurations

Why Choose Pemko Quality?

Pemko H200A sliding panel hardware delivers professional-grade reliability with clear anodized aluminum construction and nickel zinc plated alloy components rated for 200 lb panel capacity. The complete kit design ensures all necessary components are included for immediate installation. Engineered for demanding applications where smooth operation and long-term durability are essential.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Straight Sliding Systems
Product Type:
Sliding Door Hardware
Subcategory:
Straight Sliding Systems
Series:
H200A
Product Function:
Part/Component
Included Components:
280C Track (1), H222R1 Hangers (2), 102N Nylon Guide (1), TELS14 Stops (2) and an adjustable wrench and mounting hardware
For Use With:
Sliding Panels
Product Category:
Sliding & Folding Hardware
Department:
Door Hardware

Pemko H200A/8 – Frequently Asked Questions

1) Will the Pemko H200A sliding panel track system work on a 1-3/8 inch thick door?
Yes. The H200A hardware pack is rated for panel thicknesses from 1-3/8 to 1-3/4 inches, which covers both the standard commercial 1-3/4 inch leaf and the lighter 1-3/8 inch interior panel. Panel width can run from 24 to 72 inches, and the panel has to come in at or under 200 lbs.
2) What comes in the Pemko H200A track and hardware pack, and what do I still have to buy?
The kit ships with one 280C aluminum track, two H222R1 hangers, one 102N nylon floor guide, two TELS14 stops, an adjusting wrench, and the mounting hardware. That is a complete set for one sliding panel. What it does not carry is the panel itself or any pull, edge pull, or lock, so budget those separately. Note the hanger count: two hangers means one leaf. A bi-parting pair needs a second pack's worth of hangers, guide and stops.
3) Is the Pemko H200A a bottom rolling or top hung sliding door system?

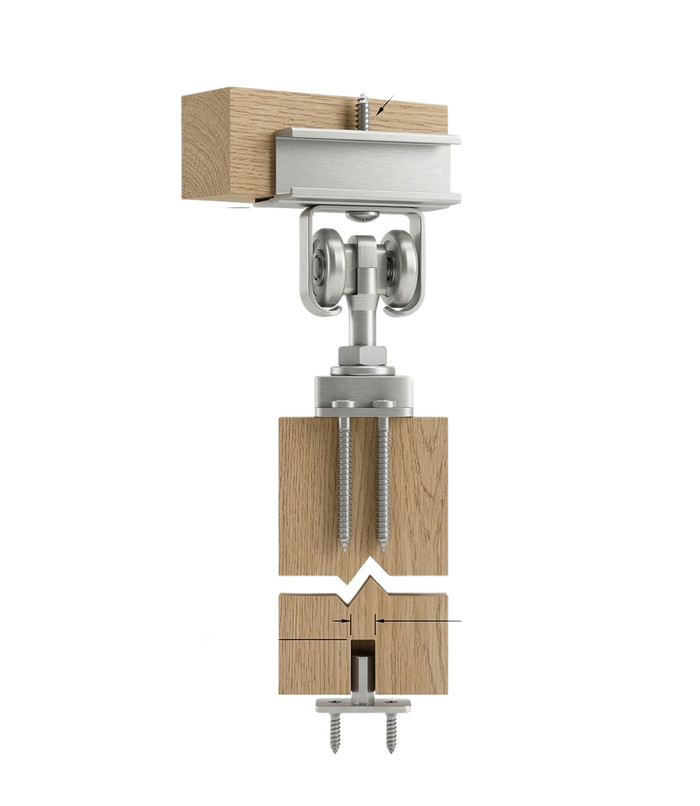

Top hung. The panel hangs from two H222R1 hangers riding in the 280C overhead track, and the only thing at the floor is the 102N nylon guide, which keeps the bottom of the leaf from swinging without carrying weight. That means no floor track to cut in and nothing across the threshold, but it also means the header or wall above the opening has to carry the full panel load, up to 200 lbs.
4) Can the H200A be mounted to a soffit instead of the wall face?
Three mounting configurations are covered: face mount, soffit mount, and face/soffit mount with fascia. Face mount puts the track on the wall above the opening, soffit mount hangs it from the underside of a header or ceiling, and the fascia option covers the track where it is exposed to view. That choice is usually made by what structure you actually have above the opening, so confirm there is solid blocking behind the mounting line before you set the track.
5) Can I use the H200A for a bi-parting pair of panels that meet in the middle?
Yes, the H200A system covers single and bi-parting sliding panel installations. Each leaf still needs its own pair of hangers, its own floor guide and its own stops, and one pack carries only two hangers, so a bi-parting opening takes hardware for both leaves. Track length also has to cover both panels stacking to their respective sides.
6) Can I add a soft close to a Pemko H200A sliding panel that is already installed?
A soft close mechanism is offered for the H200A for both new and retrofit applications, so an existing panel running on this hardware can have it added rather than requiring a full replacement. It is a separate item from the track and hardware pack, which ships with track, hangers, guide, stops, wrench and mounting hardware only.
7) I need to replace a worn hanger or a broken stop on an existing Pemko sliding panel. What are the part numbers?
On the H200A system the individual components are the 280C track, the H222R1 hanger, the 102N nylon guide, and the TELS14 stop. If only the rollers are shot, the H222R1 hanger is the piece to order, two per leaf. Ordering the whole track and hardware pack gets you all of them plus the wrench and mounting hardware.
8) Will the H200A hardware corrode in a humid or wash-down area?
The 280C track is clear anodized aluminum, which resists corrosion, and the hangers are nickel zinc plated alloy with nylon coated zinc alloy wheels. That combination stands up in interior humid spaces such as healthcare and locker areas. It is not stainless, so continuous chemical wash-down or exterior coastal exposure is outside what this finish is meant for.
9) Do the wheels on the H200A run quietly enough for an office or patient room?
The hangers use nylon coated zinc alloy wheels on nickel zinc plated alloy bodies, so the running surface is nylon on aluminum rather than steel on steel. That is the quiet combination, which is why the system gets used on office dividers, healthcare privacy panels and classroom partitions. An adjusting wrench is included so the hangers can be set to bring the panel plumb, which is usually what cures a leaf that drags or runs rough.
