Pemko HSS2000 Hot Smoke Seal 7' Fire-Rated Door Sealing System with Expandable Graphite Technology

Pemko HSS2000 Hot Smoke Seal 7' Fire-Rated Door Sealing System with Expandable Graphite Technology

(No reviews yet) Write a Review

Model: HSS2000-7
Selected Finish is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$18.72
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Pemko HSS2000 Hot Smoke Seal 7' Fire-Rated Door Sealing System with Expandable Graphite Technology

Professional Fire-Rated Door Sealing Solution

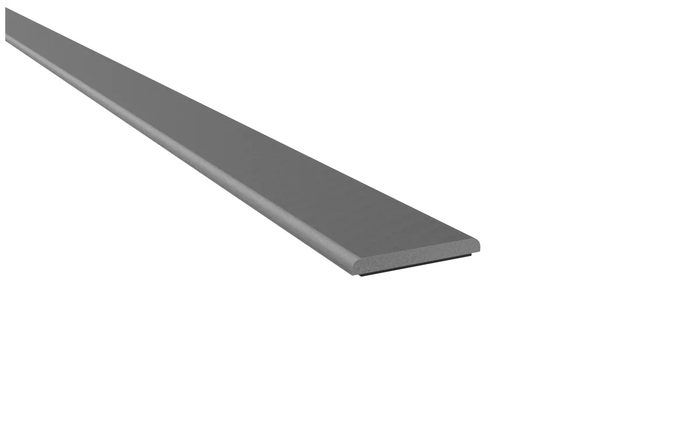

The Pemko HSS2000 Hot Smoke Seal provides critical fire and smoke protection for Category B doors with advanced expandable graphite technology. This 7' adhesive-backed sealing system expands to 30x its original size when exposed to heat, creating an effective barrier against hot smoke and gases. The chemically inert graphite and flexible elastomeric base material ensures long-term stability and performance in demanding fire-rated applications.

Professional Features & Benefits

  • Advanced Expansion Technology: Expandable graphite profile expands to 30x its original size for maximum sealing effectiveness during fire conditions.
  • Dual Protection System: Withstands both hot smoke and hot gases for extended door assembly integrity and occupant safety.
  • Chemical Stability: Chemically inert and highly stable material will not degrade from carbon dioxide, ozone, or moisture exposure.
  • Easy Installation: Self-adhesive mounting system allows quick application to side of frame without additional fasteners or tools.
  • Versatile Length Options: Available in lengths from 7"; minimum to 24"; maximum for flexible sizing to match door opening requirements.
  • Superior Durability: Graphite and flexible elastomeric construction will not break down like fiber-based or cellulose-based products.
  • Professional Appearance: Paintable gray material blends with door or frame color for seamless integration.
  • Category G Compliance: Meets requirements for edge-sealing systems required for Category B fire-rated doors.

Technical Specifications

  • Department: Door Hardware
  • Product Category: Door Trim and Accessories
  • Product Function: Gasketing
  • Product Group: Door Trim and Accessories
  • Product Subgroup: Astragals, Gaskets and Weatherstripping
  • Product Type: Gaskets
  • Series: HSS2000
  • Subcategory: Gaskets & Weatherstripping

Professional Applications

  • Fire-Rated Door Assemblies
  • Commercial Building Life Safety Systems
  • Healthcare Facility Fire Protection
  • Educational Institution Safety Compliance
  • Industrial Facility Fire Barriers
  • Multi-Tenant Residential Fire Doors
  • Government and Municipal Building Safety

Why Choose Pemko Quality?

Pemko HSS2000 sealing systems deliver professional-grade fire protection with chemically inert graphite construction that maintains stability under extreme conditions. The expandable graphite technology provides 30x expansion capability for superior sealing performance compared to traditional fiber-based products. Engineered for demanding fire-rated applications where reliable smoke and gas protection is essential for occupant safety.

Product Specs

Product Group:
Door Trim and Accessories
Product Subgroup:
Astragals, Gaskets and Weatherstripping
Product Type:
Gaskets
Subcategory:
Gaskets & Weatherstripping
Series:
HSS2000
Product Function:
Gasketing
Product Category:
Door Trim and Accessories
Department:
Door Hardware

Pemko HSS2000-7 – Frequently Asked Questions

1) What does the Pemko HSS2000 hot smoke seal actually do in a fire?
The HSS2000 is an intumescent edge seal built on expandable graphite. Under heat the graphite profile swells to roughly 30 times its original size, filling the gap between door and frame so hot smoke and hot gases cannot pass through the opening. It does nothing at ambient temperature, which is the point - it stays out of the way until the heat triggers it.
2) Is the Pemko HSS2000 the right seal for a Category B fire door?
Yes. The HSS2000 is a Category G edge-sealing system, which is what a Category B fire-rated door assembly calls for. If your door schedule or listing calls out a different category of seal, this is not the substitute.
3) Is the Pemko HSS2000 a weatherstrip or a perimeter smoke gasket for daily smoke control?
Neither. The HSS2000 is an intumescent seal - it works only when heat activates the graphite. It is not a compression gasket for cold smoke, air infiltration, or sound, and it will not seal a drafty exterior opening. If you need an ambient-temperature seal, use a perimeter gasket; on a fire door you often need both, the intumescent for the fire condition and a gasket for cold smoke.
4) Does the Pemko HSS2000 smoke seal need screws or fasteners to install?
No fasteners. The HSS2000 is self-adhesive and presses onto the side of the frame, so it goes on with no drilling and no special tools. Frame surface should be clean and dry for the adhesive to hold.
5) Will the Pemko HSS2000 graphite seal break down over time in a humid or high-traffic building?
The graphite is chemically inert and the base is a flexible elastomer, so it is not affected by carbon dioxide, ozone, or moisture. That is the practical difference from fiber or cellulose-based intumescents, which degrade in service. For healthcare, education, and multi-tenant residential fire doors that sit for years before they are ever tested, that stability is what matters.
6) Can I paint the Pemko HSS2000 smoke seal to match the frame?
Yes, it's paintable. The material is gray as supplied and takes paint so it can be finished to match the door or frame color, which is usually what a property manager wants on a corridor of fire doors that are already painted out.
