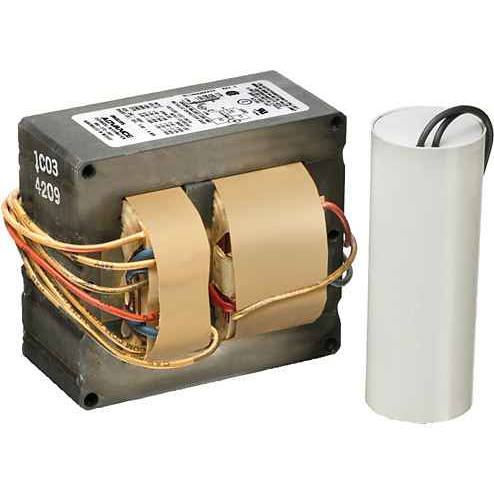

Philips Lighting 913700529409 Core & Coil Magnetic HID Ballast for 35/39W Metal Halide Lamps, 120V

The Philips Lighting 913700529409 Core & Coil HID Ballast (base model 71A5005P) is a magnetic HID ballast engineered for 35/39W metal halide (MH) lamps rated at ANSI code M130. It operates on 120V, 60Hz input using an HX-HPF circuit, delivering 55W nominal input power, 0.5A nominal input current, and a 0.9 nominal power factor. UL Recognized and rated suitable for outdoor use, this ballast serves as a dependable OEM replacement for metal halide fixture applications.

Key Features

  • Lamp Compatibility: Designed for 35/39W metal halide (MH) lamps rated at ANSI code M130.
  • Magnetic HID Ballast: Core & Coil construction with an HX-HPF circuit type for reliable operation.
  • Electrical Rating: 120V input voltage at 60Hz, 55W nominal input power, 0.5A nominal input current, and a 0.9 nominal power factor.
  • Remote Wiring Capable: Supports remote ballast-to-lamp wiring configurations up to a maximum distance of 15' between ballast and lamp.
  • Ignitor & Capacitor: Includes a 105°C-rated ignitor (LI533-H4) and a 120V, 28 MFD capacitor (7C280M12RA).

Certifications & Compliance

  • UL Recognized (Approval Mark: ULR)
  • UL Insulation Class H (180°C)
  • UL Temperature Code 1029A
  • Suitable for Outdoor Use

Technical Specifications

  • Approval Marks: ULR
  • Ballast Factor Nom: 1
  • Constant Wattage Deviation: 10%
  • EAN/UPC Product: 7.81087E+11
  • Hipot Test (1 Minute): 2000 V
  • Hipot Test (2 Seconds): 2500 V
  • Input Current (Nom): 0.5 A
  • Input Current (Open Circuit): 1.1 A
  • Input Current (Short Circuit): 0.3-0.5 A
  • Input Current (Starting): 0.45 A
  • Max Ballast Lamp Distance, Remote Wiring: 15'
  • Net Weight (Piece): 1.166 kg
  • Open Circuit Voltage Test: 205-255 V
  • Order Product Name: CORE & COIL HID 71A5005500DP
  • Power Factor (Nom): 0.9
  • Remote Wiring Configuration Allowed: Yes
  • Secondary Short Circuit Current: 0.6-0.75 A
  • Suitable for Outdoor Use: Yes
  • UL Recognized: Yes
  • Wire Length By Color: 12"

Typical Applications

  • Outdoor HID Lighting Fixtures
  • Metal Halide Fixture Ballast Replacement
  • Commercial and Industrial Outdoor Lighting
  • Remote-Mounted Ballast Installations
  • Parking Lot, Area, and Site Lighting

Why Philips Lighting?

Philips Lighting engineers its Core & Coil HID ballasts for dependable, code-compliant performance in demanding outdoor and industrial lighting applications. With UL Recognized construction, a 105°C-rated ignitor and capacitor, and electrical specifications matched precisely to 35/39W metal halide lamps, this ballast delivers consistent, long-lasting operation for professional installations.

Manufacturer Resources

Product Specs

Ansi Code:
M130
Approval Marks:
ULR
Automatic Restart:
No
Ballast Factor Nom :
1
Ballast Type:
Magnetic HID
Base Model:
71A5005P
Capacitor Catalog Number:
7C280M12RA
Capacitor Diameter Oval Dimensions:
1.65 in
Capacitor Height:
2.75 in
Capacitor Requirements:
120V
Capacitor Temperature Rating:
105°C
Capacitor Value:
28 MFD
Circuit Type:
HX-HPF
Constant Wattage Deviation:
10%
Ean Upc Product:
7.81087E+11
Hipot Test 1 Minute :
2000 V
Hipot Test 2 Seconds :
2500 V
Ignitor Catalog Number:
LI533-H4
Ignitor Temperature Rating:
105°C
Input Current Nom :
0.5 A A
Input Current Open Circuit :
1.1 A
Input Current Short Circuit :
0.3-0.5 A
Input Current Starting :
0.45 A
Input Frequency:
60 Hz
Input Power Nom :
55 W
Input Voltage:
120 V
Lamp Type:
35/39W MH
Material Nr 12nc :
9.13701E+11
Max Ballast Lamp Distance Remote Wiring:
15'
Net Weight Piece :
1.166 kg
Number Of Lamps:
1 piece/unit
Numerator Packs Per Outer Box:
12
Numerator Quantity Per Pack:
1
Open Circuit Voltage:
230 V
Open Circuit Voltage Test Volts :
205-255 V
Order Code:
9.13701E+11
Order Product Name:
CORE & COIL HID 71A5005500DP
Power Factor Nom :
0.9
Rated Lamp Power:
35/39 W
Recommended Fuse Value:
3:00 AM
Remote Wiring Configuration Allowed:
Yes
Secondary Short Circuit Current:
0.6-0.75 A
Suitable For Outdoor Use:
Yes
Temperature Marking:
A
Ul Insulation Class:
H(180°C)
Ul Recognized:
Yes
Ul Temperature Code:
1029A
Wire Length By Color:
12"
Wire Striplength:
0.5 mm
Wire Type:
Stranded
Product Core Size:
2 X 4
Product Type:
HID Ballast
Department:
Electrical

Philips Lighting 913700529409 – Frequently Asked Questions

1) What input voltage and current does this Philips core and coil HID ballast draw?
120V, 60Hz only. It's a single-voltage ballast, not a multi-tap, so a 208/240/277V feed won't work. Nominal draw is 0.5A at 55W input with a 0.9 power factor on an HX-HPF circuit; starting current is 0.45A and open circuit current runs 1.1A.
2) Can I mount this HID ballast remotely, away from the fixture?
Yes, remote ballast-to-lamp wiring is allowed, with a maximum of 15 feet between the ballast and the lamp. Beyond that run length the starting pulse degrades and the lamp may not strike. The pigtail leads are 12 inches of stranded wire, so plan on a junction for anything longer.
3) Does this ballast come with the capacitor and ignitor, or do I order those separately?
The kit includes both. Ignitor is Philips LI533-H4 rated 105 degrees C, and the capacitor is 7C280M12RA, 28 MFD at 120V, also 105 degrees C. Capacitor case measures 1.65 in across the oval and 2.75 in tall, which matters when you're fitting it back into a tight fixture ballast tray.
4) How do I confirm this is the right replacement for a Philips 71A5005 ballast?
Base model on the 913700529409 is 71A5005P, ordered as CORE & COIL HID 71A5005500DP. Check the label on the ballast you're pulling out: if it reads 71A5005 with 120V and M130 35/39W, this is the direct replacement.
5) Is this Philips 35/39W metal halide ballast rated for outdoor parking lot and area fixtures?
Yes. The 913700529409 core and coil assembly is marked suitable for outdoor use and is UL Recognized (mark ULR), with UL Insulation Class H at 180 degrees C and UL temperature code 1029A, temperature marking A. That covers wall packs, area lights and site poles where the ballast sits in an unconditioned housing.
6) What is the difference between an HX-HPF ballast like this one and a CWA ballast?
This is a high reactance, high power factor (HX-HPF) magnetic core and coil, which is the usual choice on lower wattage metal halide like 35/39W. It regulates less against line voltage swing than a constant wattage autotransformer; constant wattage deviation here is 10 percent. If your fixture or spec calls for CWA regulation or a multi-tap input, you need a different ballast, not this one.
7) Does this ballast restrike a hot metal halide lamp automatically after a power blip?
No. Automatic restart is not a feature of this ballast. After an interruption a hot metal halide lamp has to cool before it will strike again, typically several minutes. If the site needs instant light after a dip, pair the fixture with a quartz restrike socket or an emergency source rather than expecting the ballast to handle it.
8) What open circuit voltage should I read at the ballast secondary when testing?
Nominal open circuit voltage is 230V, with an acceptable test range of 205 to 255V. Secondary short circuit current should fall between 0.6 and 0.75A, and primary short circuit current 0.3 to 0.5A. Readings outside those windows point at a failed winding rather than a bad lamp.
9) How is this HID ballast packaged for a multi-fixture retrofit order?
It ships one piece per pack, 12 packs to an outer box. If you're re-ballasting a lot of 35/39W metal halide heads, ordering in multiples of 12 keeps you on full cartons.
10) Will lumen output change if I swap in this Philips ballast?
No drop to expect. Nominal ballast factor is 1, so the lamp runs at its rated output rather than a de-rated level. Input power is 55W for a 35/39W lamp, the normal magnetic ballast loss on a fixture of this size.
