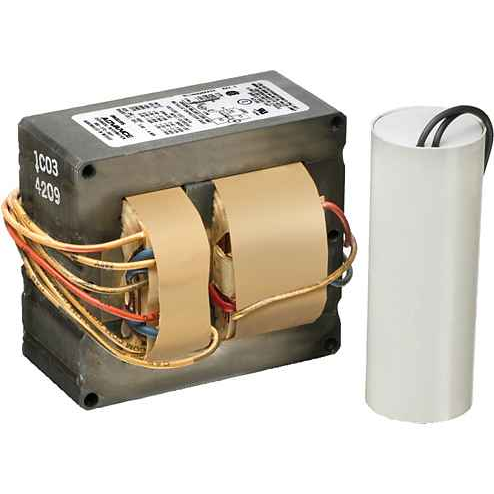

Philips Lighting 913700556609 Core & Coil HID Ballast Kit 71A8271001D for 250W HPS CWA Fixtures

Philips Lighting 913700556609 Core & Coil HID Ballast Kit 71A8271001D for 250W HPS CWA Fixtures

(No reviews yet) Write a Review

Model: 913700556609
Selected Model is

In Stock (leaves warehouse same day if ordered before 3pm ET)

$368.91
$318.91
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting Core & Coil HID Ballast Kit 71A8271001D for 250W HPS CWA Fixtures

The Philips Lighting Core & Coil HID Ballast Kit 71A8271001D is a magnetic HID core-and-coil assembly engineered for 250W HPS lamps on a CWA (constant wattage autotransformer) circuit. It operates on multi-tap 120/208/240/277V input at 60Hz, delivering 295W nominal input power at a 0.9 nominal power factor. The kit ships with a matched capacitor and ignitor and is rated Suitable for Outdoor Use, making it a dependable OEM replacement ballast for HID fixtures.

Key Features

  • Magnetic HID CWA Ballast: Core & coil constant wattage autotransformer circuit engineered for 250W HPS lamp operation.
  • Multi-Tap Input: 120/208/240/277V input at 60Hz, 295W nominal input power, 0.9 nominal power factor.
  • Matched Capacitor & Ignitor: Includes capacitor 7C350P24RA (35 MFD, 240V) and ignitor LI501-H4 for a complete core-and-coil replacement.
  • Remote Mount Capable: Remote wiring configuration allowed, with up to 2' ballast-to-lamp distance.
  • Outdoor Rated: Suitable for outdoor use in HID fixture applications.
  • Stranded Lead Wires: Color-coded stranded wire leads, 12" wire length by color, for reliable fixture connections.

Certifications & Compliance

  • UL Recognized (ULR)
  • UL Insulation Class H (180°C)
  • UL Temperature Code 1029B
  • Suitable for Outdoor Use

Technical Specifications

  • Ansi Code: S50
  • Approval Marks: ULR
  • Automatic Restart: No
  • Ballast Factor Nom: 1
  • Circuit Type: CWA
  • Constant Wattage Deviation: Within Trapezoid
  • Input Current Open Circuit: 1.53/0.95/0.77/0.63 A
  • Input Current Short Circuit: 1.16-1.74/0.64-0.96/0.56-0.85/0.49-0.74 A
  • Input Current Starting: 1.61/0.89/0.8/0.68 A
  • Max Ballast Lamp Distance Remote Wiring: 2'
  • Number Of Lamps: 1 piece/unit
  • Open Circuit Voltage: 187 V
  • Open Circuit Voltage Test Volts: 170-205 V
  • Power Factor Nom: 0.9
  • Recommended Fuse Value: 7/4/4/3 A
  • Remote Wiring Configuration Allowed: Yes
  • Secondary Short Circuit Current: 3.65-4.45 A
  • Suitable For Outdoor Use: Yes
  • Ul Recognized: Yes
  • Wire Length By Color: 12"

Typical Applications

  • HID Ballast Replacement for 250W HPS Fixtures
  • Outdoor Area, Site, and Roadway Lighting
  • Commercial and Industrial HID Lighting Systems
  • High-Bay and Pole-Mounted HPS Fixture Retrofits
  • Remote-Mounted Ballast Enclosure Installations

Why Philips Lighting?

Philips Lighting core & coil ballast kits pair a magnetic CWA circuit with a matched capacitor and ignitor for dependable 250W HPS lamp performance. UL Recognized with a UL Insulation Class H (180°C) rating and rated for outdoor use, the 71A8271001D kit delivers consistent, code-compliant operation for commercial and industrial HID lighting systems.

Manufacturer Resources

Product Specs

Ansi Code:
S50
Approval Marks:
ULR
Automatic Restart:
No
Ballast Factor Nom :
1
Ballast Type:
Magnetic HID
Base Model:
71A8271
Capacitor Catalog Number:
7C350P24RA
Capacitor Diameter Oval Dimensions:
1.65 in
Capacitor Height:
3.7 in
Capacitor Requirements:
240V
Capacitor Temperature Rating:
105°C
Capacitor Value:
35 MFD
Circuit Type:
CWA
Constant Wattage Deviation:
Within Trapezoid
Ean Upc Product:
7.81088E+11
Hipot Test 1 Minute :
2000 V
Hipot Test 2 Seconds :
2500 V
Ignitor Catalog Number:
LI501-H4
Ignitor Temperature Rating:
105°C
Input Current Nom :
2.5/1.47/1.25/1.09 A A
Input Current Open Circuit :
1.53/0.95/0.77/0.63 A
Input Current Short Circuit :
1.16-1.74/0.64-0.96/0.56-0.85/0.49-0.74 A
Input Current Starting :
1.61/0.89/0.8/0.68 A
Input Frequency:
60 Hz
Input Power Nom :
295 W
Input Voltage:
120/208/240/277 V
Lamp Type:
250W HPS
Material Nr 12nc :
9.13701E+11
Max Ballast Lamp Distance Remote Wiring:
2'
Net Weight Piece :
5.176 kg
Number Of Lamps:
1 piece/unit
Numerator Packs Per Outer Box:
1
Numerator Quantity Per Pack:
1
Open Circuit Voltage:
187 V
Open Circuit Voltage Test Volts :
170-205 V
Order Code:
9.13701E+11
Order Product Name:
CORE & COIL HID 71A8271001D
Power Factor Nom :
0.9
Rated Lamp Power:
250 W
Recommended Fuse Value:
7/4/4/3 A
Remote Wiring Configuration Allowed:
Yes
Secondary Short Circuit Current:
3.65-4.45 A
Suitable For Outdoor Use:
Yes
Temperature Marking:
B/B/B/B
Ul Insulation Class:
H(180°C)
Ul Recognized:
Yes
Ul Temperature Code:
1029B
Wire Length By Color:
12"
Wire Striplength:
0.5 mm
Wire Type:
Stranded
Product Core Size:
4 x 4 (2 coil)
Product Type:
HID Lamp
Department:
Electrical

Philips Lighting 913700556609 – Frequently Asked Questions

1) Will the Philips 71A8271001D core and coil kit run a 250W high pressure sodium lamp?
That is exactly what it is built for. The 71A8271001D is a magnetic HID core-and-coil assembly rated for a single 250W HPS lamp on a CWA (constant wattage autotransformer) circuit, ANSI code S50. One lamp per unit, so it is a one-for-one ballast replacement in a 250W HPS fixture. It will not operate metal halide or mercury vapor lamps.
2) What line voltages can this Philips HID ballast kit be wired to?
It is a multi-tap ballast: 120, 208, 240 or 277V at 60Hz. You pick the tap at install with the color-coded leads. Nominal input current runs 2.5A at 120V, 1.47A at 208V, 1.25A at 240V and 1.09A at 277V, with nominal input power of 295W at a 0.9 power factor. Recommended fuse values follow the same tap order: 7/4/4/3A.
3) Does this ballast kit come with the capacitor and ignitor, or do I order those separately?
Both are included and matched to the core and coil. The capacitor is Philips 7C350P24RA, 35 MFD rated at 240V, 1.65 in oval diameter by 3.7 in high, with a 105C rating. The ignitor is LI501-H4, also rated 105C. A CWA circuit will not start an HPS lamp without both, so this saves sourcing them one at a time.
4) Can I remote mount this 250W HPS ballast away from the fixture head?
Remote wiring is allowed, but the run is short: maximum ballast-to-lamp distance is 2 feet. That covers a ballast box mounted in a pole base or behind a fixture housing, not a ballast located across a building. Lead wires are 12 inches long, color coded, stranded, with a 0.5 mm strip length.
5) Is this HID ballast rated for an outdoor pole or wall pack fixture?
It is rated Suitable for Outdoor Use, which is what you want for site, roadway and pole-mounted HPS fixtures. Insulation is UL Class H (180C) with UL temperature code 1029B and a B temperature marking on all four taps. It is UL Recognized (ULR), meaning it is a component intended for installation inside a listed fixture or enclosure rather than a standalone device.
6) Will the lamp come back on by itself after a power blip with this ballast?
No. Automatic restart is not a feature of the 71A8271001D. After an interruption the HPS lamp has to cool before it will restrike, the normal several-minute HID restrike delay. If a facility needs instant light after a dropout, plan on a separate quartz restrike fixture or emergency egress lighting rather than expecting this ballast to hot restart.
7) Why choose a CWA ballast instead of a reactor or lag type for a 250W HPS fixture?
CWA (constant wattage autotransformer) holds lamp wattage steady through line voltage swings, with deviation held within the trapezoid, and gives a 0.9 power factor with 1.0 ballast factor so the lamp puts out its rated lumens. Open circuit voltage is 187V nominal (170 to 205V test range). Reactor and lag ballasts are cheaper and smaller but tolerate far less line variation, which is why CWA is the usual pick for outdoor area and roadway lighting on long feeders.
8) How many ballasts come in a box when I order the Philips 913700556609 kit?
One. The kit is packed one piece per pack, one pack per outer box, so each order unit is a single core-and-coil assembly with its matched capacitor and ignitor. For a multi-fixture relamp and reballast, order one per fixture.
9) What current should I expect on startup and under a lamp fault when sizing the branch circuit?
Starting current on the 250W HPS core and coil runs 1.61A at 120V, 0.89A at 208V, 0.80A at 240V and 0.68A at 277V. Open circuit draw is 1.53/0.95/0.77/0.63A and short circuit input ranges 1.16-1.74/0.64-0.96/0.56-0.85/0.49-0.74A by the same tap order. Secondary short circuit current is 3.65 to 4.45A. Size fusing per the recommended 7/4/4/3A values for the tap you land on.
