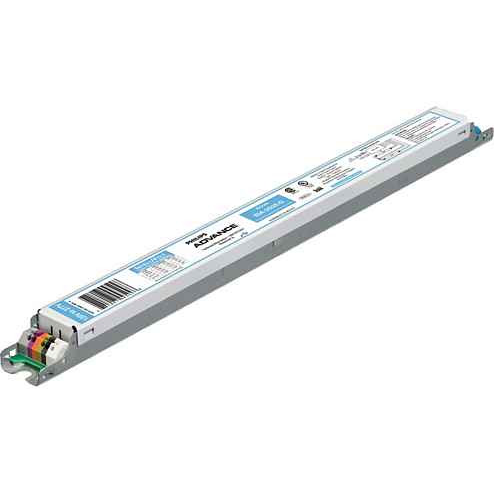

Philips Lighting 9137012-254 MARK 7 0-10V Dimmable Fluorescent Ballast, 120-277V, CSA Certified

Philips Lighting 9137012-254 MARK 7 0-10V Dimmable Fluorescent Ballast, 120-277V, CSA Certified

(No reviews yet) Write a Review

Model: 913701225402

In Stock (leaves warehouse same day if ordered before 3pm ET)

$297.53
Adding to cart… The item has been added
Free Shipping on orders over $199
We price match and offer bulk discounts! Click Add to Quote. It's quick and easy.
✨
Earn points with this purchase! You can redeem points for giftcards, iPads, XBox's and more. View Rewards
Free Keying on all locks
You may also like

Philips Lighting 9137012-254 MARK 7 0-10V Dimmable Fluorescent Ballast, 120-277V, CSA Certified

The Philips Lighting 9137012-254 MARK 7 0-10V Dimmable Fluorescent Ballast is a programmed-start electronic ballast engineered for two-lamp series-wired fluorescent fixtures. Rated for 120 to 277V input at 50 to 60 Hz, it delivers smooth, flicker-free 0-10V dimming control from a compact metal Type D housing measuring 16.7" x 1.18" x 1.0". CSA certified and rated for outdoor use, this ballast is built for dependable, code-compliant performance in commercial fluorescent fixtures.

Key Features

  • 0-10V Dimming Control: Programmed Start ignition delivers smooth, flicker-free 0-10V dimming for compatible dimming systems.
  • Universal Input Voltage: Operates on 120 to 277V at 50 to 60 Hz for flexible commercial installations.
  • Durable Metal Housing: Type D metal housing measures 16.7" x 1.18" x 1.0" for reliable fixture mounting.
  • Series-Wired Lamp Connection: Powers two lamps per unit in a series-wired configuration for two-lamp fixtures.
  • Poke-In Wiring: 18AWG solid wire with poke-in connectors and color-coded input terminals (Black, White, Violet and Gray) and output terminals (RED, YEL & BLU) for fast, accurate installation.
  • Automatic Restart: Automatically restarts after a power interruption and is rated for outdoor use.
  • Electrical Performance: Ballast factor ranges from 0.03 to 1, with a nominal crest factor of 1.7, 10% total harmonic distortion, and a 0.98 nominal power factor.
  • Low Hum Operation: Hum and noise level rated A for quiet installations, with a nominal ignition time of 1.5 s.

Certifications & Compliance

  • CSA Certificate Approval
  • FCC Consumer EMC Immunity Standard

Technical Specifications

  • Numerator Packs Per Outer Box: 12
  • Automatic Restart: Yes
  • Crestfactor Nom: 1.7
  • Total Harmonic Distortion Usa: 10%
  • Numerator Quantity Per Pack: 1
  • Ballast Factor Max: 1
  • Hum And Noise Level: A
  • Ul Recognized: No
  • Housing Type: D
  • Suitable For Outdoor Use: Yes
  • Through Wiring Configuration Allowed: Yes

Typical Applications

  • Commercial Fluorescent Lighting Fixtures
  • Outdoor Fixture Applications
  • 0-10V Dimming Control Systems
  • Two-Lamp Series-Wired Fixture Retrofits

Why Philips Lighting?

Philips Lighting MARK series ballasts combine programmed-start technology, a durable metal Type D housing, and CSA-certified components for dependable commercial fixture performance. With automatic restart, outdoor-rated durability, poke-in wiring for fast installation, and precise 0-10V dimming control, the 9137012-254 delivers consistent, code-compliant operation for demanding two-lamp series-wired fluorescent lighting applications.

Manufacturer Resources

Product Specs

Numerator Packs Per Outer Box:
12
Housing Dimensions:
16.7" x 1.18" x 1.0"
Housing Material:
Metal
Material Nr 12nc:
9.13701E+11
Wire Striplength:
0.375 mm
Automatic Restart:
Yes
Input Frequency:
50 to 60 Hz
Crestfactor Nom:
1.7
Lamp Connection:
Series
Total Harmonic Distortion Usa:
10%
Ballast Type:
Dimmable Fluorescent
Ballast Factor Min:
0.03
Control Wire Gauge:
18AWG
Numerator Quantity Per Pack:
1
Ignition Time Nom:
1.5 s
Input Voltage:
120 to 277 V
Color Input Terminals:
Black, White, Violet and Gray
Wire Type:
Solid
Product Type:
Fluorescent Ballast
Ballast Factor Max:
1
Ean Upc Product:
7.81087E+11
Ignition Method:
Programmed Start
Color Output Terminals:
RED, YEL & BLU
Hum And Noise Level:
A
Approval Marks:
CSA certificate
Ul Recognized:
No
Connector Type:
Poke-In
Wire Gauge Nom:
18AWG mm
Housing Type:
D
T Case Maximum Nom:
70 °C
Emc Immunity Standard:
FCC Consumer
Order Code:
9.13701E+11
Suitable For Outdoor Use:
Yes
Through Wiring Configuration Allowed:
Yes
Wire Length By Color:
No wires
Number Of Lamps:
2 piece/unit
Power Factor Nom:
0.98
Department:
Electrical

Philips Lighting 913701225402 – Frequently Asked Questions

1) Will the Philips Mark 7 0-10V dimming ballast run on both 120V and 277V circuits?
The Mark 7 0-10V IZT2S ballast accepts any line voltage from 120 to 277 V at 50 to 60 Hz, so the same part works on 120V tenant circuits and 277V commercial lighting panels. That universal input is what lets a property manager stock one ballast for a mixed-voltage building instead of two.
2) Which lamps does this Mark 7 dimming ballast drive, 28W or 54W?
Both are offered: a two-lamp 28W version and a two-lamp 54W version. Pick by the lamp you are actually running (28W T5 versus 54W T5HO) since the ballast is built for two lamps per unit and the wattage is not field-adjustable.
3) Is this ballast programmed start or instant start, and does that matter for occupancy-sensor spaces?
Programmed start, with a nominal 1.5 second ignition time. That is the ignition method you want in restrooms, corridors, and offices on occupancy sensors, because the cathodes are preheated before the arc strikes and lamp life holds up under frequent switching. It also restarts automatically after a lamp is replaced or power is restored, so no one has to cycle the breaker.
4) Will this Philips ballast fit in my existing fluorescent fixture channel?
The metal housing measures 16.7 x 1.18 x 1.0 inches, a Type D case. That is a long, narrow can, so confirm your fixture channel has the straight run to take a 16.7 inch body before ordering; a short 4-inch-class ballast cavity will not take it.
5) Does this ballast come with leads, or do I have to wire it myself?
No wires are supplied. The Mark 7 0-10V ballast uses poke-in terminals, so you land solid 18 AWG conductors directly, stripped 0.375. Input terminals are black, white, violet and gray (line, neutral, and the two 0-10V control leads); output terminals are red, yellow and blue for the lamps. Have solid wire on the truck, not stranded.
6) What gauge control wire do I run for the 0-10V dimming leads?
Run 18 AWG for the 0-10V control pair, landing on the violet and gray poke-in terminals. Matching the specified control gauge keeps the poke-in connection secure, which is where most nuisance dimming faults on fluorescent retrofits start.
7) Can I daisy-chain power through several of these ballasts in a row of fixtures?
Through wiring is allowed on this ballast, so line and neutral can be carried through a continuous row rather than home-running each fixture. Keep the 0-10V control pair with the run so the whole row dims together.
8) Can this Philips fluorescent ballast be used in an outdoor or unconditioned fixture?
It is rated suitable for outdoor use, in a metal housing, with a maximum nominal case temperature of 70 C. Mount it so the case stays at or below that figure inside a canopy, parking structure, or sign fixture; the temperature limit, not the weather rating, is what usually kills a ballast in an enclosed outdoor housing.
9) Is this ballast quiet enough for a classroom or private office?
Sound rating is A, the quietest class for a fluorescent ballast, so it is appropriate for classrooms, libraries, conference rooms, and open offices where fixture hum gets noticed. It carries a CSA certificate.
10) How does this Mark 7 ballast ship for a multi-fixture job?
Each pack holds one ballast, and an outer box holds 12. For a retrofit covering a floor of fixtures, order in multiples of 12 to land full cases.
